Inlet Manifold + Injector Каталог оригинальных запчастей для лодочных моторов Tohatsu BFT75A (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2015
BFT75A

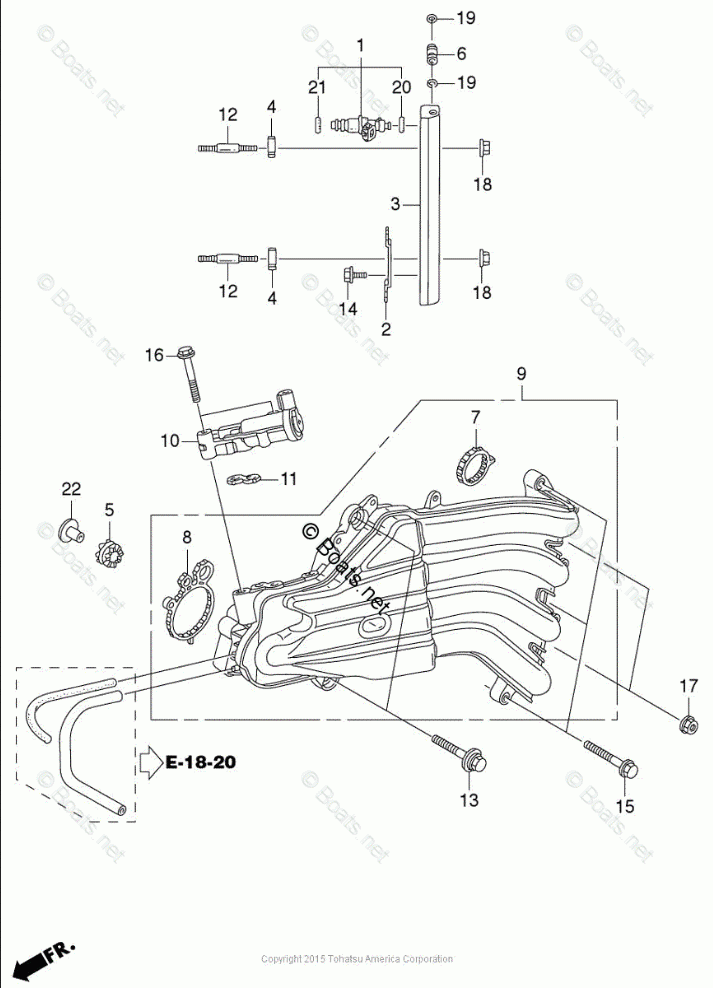

Inlet Manifold + Injector
Inlet Manifold + Injector

Inlet Manifold + Injector

Tohatsu BFT75A

Inlet Manifold + Injector

#

oem код

название

цена

E-14-19

O-RING 7.8X1.9

O-RING 7.8X1.9

E-14-17

NUT, FLANGE, 8MM

NUT, FLANGE, 8MM

E-14-10

VALVE ASSY, ELECTRONIC AIR

VALVE ASSY, ELECTRONIC AIR

E-14-9

MANIFOLD ASSY, INLET

MANIFOLD ASSY, INLET

E-14-5

GROMMET, VAPOR SEPARATOR

GROMMET, VAPOR SEPARATOR

E-14-3

FUEL LINE ASSY

FUEL LINE ASSY

E-14-2

CLIP, INJECTOR

CLIP, INJECTOR

E-14-1

FUEL INJECTOR ASSY

FUEL INJECTOR ASSY

E-14-11

PACKING, ELECTRONIC AIR

PACKING, ELECTRONIC AIR

E-14-8

PACKING, THROTTLE BODY

PACKING, THROTTLE BODY

E-14-15

BOLT, FLANGE, 8X35

BOLT, FLANGE, 8X35

E-14-4

INSULATOR, FUEL PIPE

INSULATOR, FUEL PIPE

E-14-14

BOLT, FLANGE, 6X10

BOLT, FLANGE, 6X10

E-14-6

JOINT, FUEL PIPE

JOINT, FUEL PIPE

E-14-16

BOLT, FLANGE, 8X45

BOLT, FLANGE, 8X45

E-14-18

NUT, FLANGE, 6MM

NUT, FLANGE, 6MM

E-14-22

COLLAR, 8.5X14.5

COLLAR, 8.5X14.5

E-14-13

BOLT-WASHER, 8X35

BOLT-WASHER, 8X35

E-14-7

PACKING, INTAKE MANIFOLD

PACKING, INTAKE MANIFOLD

E-14-21

O-RING, 7.45X3.61 (NOK)

O-RING, 7.45X3.61 (NOK)

E-14-20

O-RING, 7.47X3.6

O-RING, 7.47X3.6

E-14-12

BOLT, STUD, 6X40

BOLT, STUD, 6X40
