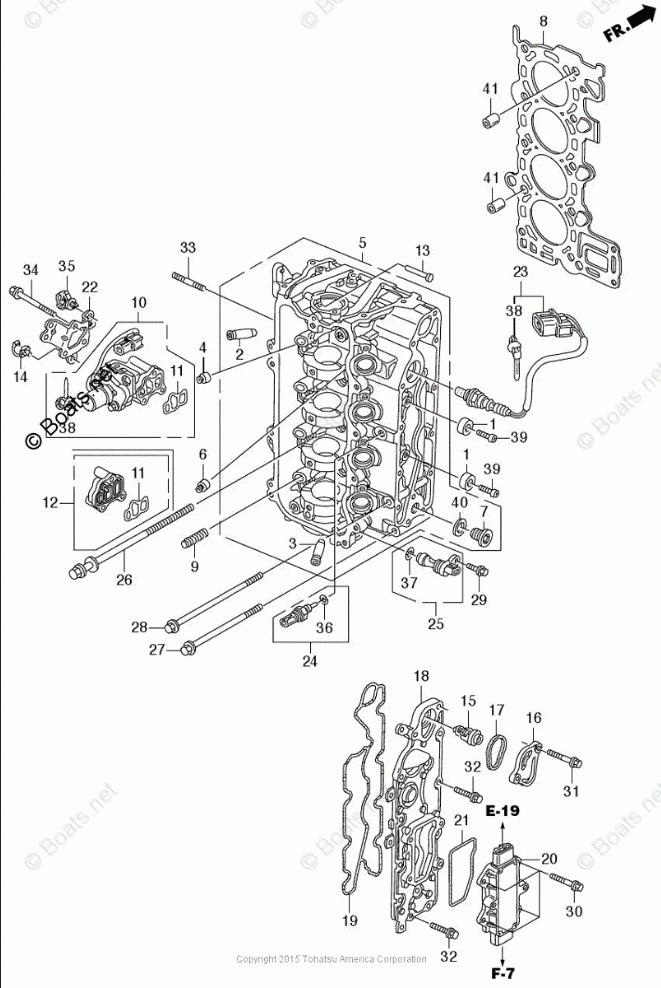

Tohatsu BFT75A

ГОЛОВКА ЦИЛИНДРА

#

oem код

название

цена

E-2-39

HCO93500060184J

SCREW, PAN 6X18

SCREW, PAN 6X18

E-2-14

CLAMP B, FUEL TUBE

CLAMP B, FUEL TUBE

E-2-32

BOLT, FLANGE 6X22

BOLT, FLANGE 6X22

E-2-15

THERMOSTAT ASSY

THERMOSTAT ASSY

E-2-33

BOLT, STUD, 8X32

BOLT, STUD, 8X32

E-2-5

HEAD COMP., CYLINDER

HEAD COMP., CYLINDER

E-2-8

GASKET COMP, CYLINDER HEAD

GASKET COMP, CYLINDER HEAD

E-2-12

COVER ASSY., OIL PATH

COVER ASSY., OIL PATH

E-2-13

LIFTER, FUEL PUMP

LIFTER, FUEL PUMP

E-2-18

COVER, WATER JACKET

COVER, WATER JACKET

E-2-24

SENSOR ASSY, TW

SENSOR ASSY, TW

E-2-19

PACKING, EX. WATER JACKET

PACKING, EX. WATER JACKET

E-2-20

RECTIFIER ASSY., REGULATOR

RECTIFIER ASSY., REGULATOR

E-2-21

PACKING, REGULATOR

PACKING, REGULATOR

E-2-22

BRACKET D, HARNESS CLIP

BRACKET D, HARNESS CLIP

E-2-23

SENSOR, OXYGEN

SENSOR, OXYGEN

E-2-25

SENSOR ASSY, TDC

SENSOR ASSY, TDC

E-2-27

BOLT, FLANGE 8X95

BOLT, FLANGE 8X95

E-2-28

BOLT, FLANGE 8X110

BOLT, FLANGE 8X110

E-2-29

BOLT, FLANGE 6X16

BOLT, FLANGE 6X16

E-2-31

BOLT, FLANGE, 6X35

BOLT, FLANGE, 6X35

E-2-40

WASHER, PLUG DRAIN 20MM

WASHER, PLUG DRAIN 20MM

E-2-6

SEAL B, VALVE STEM (NOK)

SEAL B, VALVE STEM (NOK)

E-2-41

DOWEL PIN 14X20

DOWEL PIN 14X20

E-2-2

GUIDE, IN. VALVE (OS)

GUIDE, IN. VALVE (OS)

E-2-3

GUIDE, EX. VALVE (OS)

GUIDE, EX. VALVE (OS)

E-2-36

O-RING, 9.5X1.9

O-RING, 9.5X1.9

E-2-37

O-RING, 15X1.9

O-RING, 15X1.9

E-2-26

BOLT-WASH, 9X155

BOLT-WASH, 9X155

E-2-4

SEAL A, VALVE STEM (NOK)

SEAL A, VALVE STEM (NOK)

E-2-9

MOTION COMP., LOST

MOTION COMP., LOST

E-2-17

O-RING, THERMOSTAT COVER

O-RING, THERMOSTAT COVER

E-2-11

FILTER ASSY., SPOOL VALVE

FILTER ASSY., SPOOL VALVE

E-2-38

CLIP, HARNESS BAND (BLACK)

CLIP, HARNESS BAND (BLACK)

E-2-35

CLIP, HARNESS

CLIP, HARNESS

E-2-1

METAL, ANODE

METAL, ANODE

E-2-7

BOLT, SEALING 20MM

BOLT, SEALING 20MM

E-2-34

BOLT, FLANGE, 6X55

BOLT, FLANGE, 6X55

E-2-30

BOLT, FLANGE 6X20

BOLT, FLANGE 6X20

E-2-16

COVER, THERMOSTAT

COVER, THERMOSTAT

E-2-10

VALVE ASSY., SPOOL

VALVE ASSY., SPOOL
