Карбюратор (503) Запчасти для снегоходов Ski-Doo (Bombardier) Formula S (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

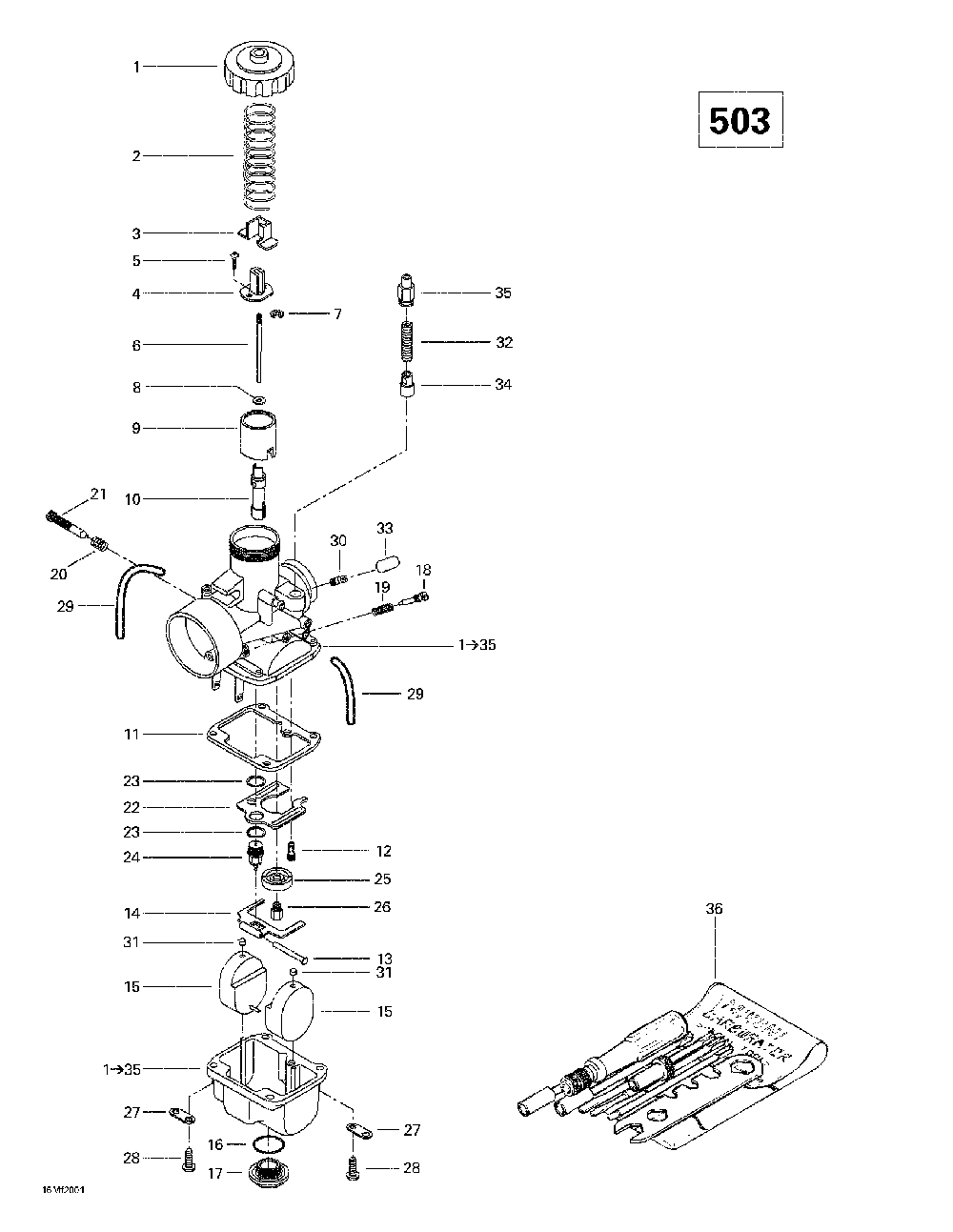

Карбюратор (503)

Ski-Doo (Bombardier) Formula S

Карбюратор (503)

#

oem код

название

цена

1

Carb.vm-34 *carb-vm-34 Includes 1 - 35. Formula Dlx 500.

Carb.vm-34 *carb-vm-34 Includes 1 - 35. Formula Dlx 500.

Carb.vm-34 *carb-vm-34 Formula Dlx 500.

Carb.vm-34 *carb-vm-34 Formula Dlx 500.

1

Couvercle Carb.*top-mix.chamb. Formula Dlx 500.

Couvercle Carb.*top-mix.chamb. Formula Dlx 500.

2

Ressort *spring Formula Dlx 500.

Ressort *spring Formula Dlx 500.

3

Couvercle *cover Formula Dlx 500.

Couvercle *cover Formula Dlx 500.

4

Connecteur *connector Formula Dlx 500.

Connecteur *connector Formula Dlx 500.

5

Vis W.rondelle*screw-with Washer Formula Dlx 500.

Vis W.rondelle*screw-with Washer Formula Dlx 500.

6

Aiguille 6dh02 *needle Formula Dlx 500.

Aiguille 6dh02 *needle Formula Dlx 500.

7

Rondelle E *ring-e Formula Dlx 500.

Rondelle E *ring-e Formula Dlx 500.

8

Joint Tampon *packing Formula Dlx 500.

Joint Tampon *packing Formula Dlx 500.

9

Tiroir Acc.2.5 *piston-val.2.5 Formula Dlx 500.

Tiroir Acc.2.5 *piston-val.2.5 Formula Dlx 500.

10

Gicleur Aiguil.*jet Needle Formula Dlx 500.

Gicleur Aiguil.*jet Needle Formula Dlx 500.

11

Joint *gasket Formula Dlx 500.

Joint *gasket Formula Dlx 500.

12

Gicleur Ralenti*jet-pilot 40 Formula Dlx 500.

Gicleur Ralenti*jet-pilot 40 Formula Dlx 500.

13

Goupille Levier*pin-lever Formula Dlx 500.

Goupille Levier*pin-lever Formula Dlx 500.

14

Levier Flotteur*lever-float Formula Dlx 500.

Levier Flotteur*lever-float Formula Dlx 500.

15

Flotte *float Formula Dlx 500.

Flotte *float Formula Dlx 500.

16

Joint Torique *o-ring Formula Dlx 500.

Joint Torique *o-ring Formula Dlx 500.

17

Vis Bouchon *screw-drain Plug Formula Dlx 500.

Vis Bouchon *screw-drain Plug Formula Dlx 500.

18

Vis Air *screw-air Formula Dlx 500.

Vis Air *screw-air Formula Dlx 500.

19

Ressort *spring Formula Dlx 500.

Ressort *spring Formula Dlx 500.

20

Ressort *spring Formula Dlx 500.

Ressort *spring Formula Dlx 500.

21

Vis Etrangleur*screw-throttle Formula Dlx 500.

Vis Etrangleur*screw-throttle Formula Dlx 500.

22

Chicane *baffle Formula Dlx 500.

Chicane *baffle Formula Dlx 500.

23

Rondelle Siege *washer-seat Formula Dlx 500.

Rondelle Siege *washer-seat Formula Dlx 500.

24

Pointeau Vs 1.5*valve-needle Formula Dlx 500.

Pointeau Vs 1.5*valve-needle Formula Dlx 500.

25

Bague Chicane *ring-baffle Formula Dlx 500.

Bague Chicane *ring-baffle Formula Dlx 500.

26

Gicleur Mj 180 *jet-main 180 Formula Dlx 500.

Gicleur Mj 180 *jet-main 180 Formula Dlx 500.

Gicleur Mj 170 *jet-main 170 Formula Dlx 500.

Gicleur Mj 170 *jet-main 170 Formula Dlx 500.

27

Plaque *plate Formula Dlx 500.

Plaque *plate Formula Dlx 500.

28

Screw-w/lock *screw-w/lockwasher Formula Dlx 500.

Screw-w/lock *screw-w/lockwasher Formula Dlx 500.

29

Boyau *hose Formula Dlx 500.

Boyau *hose Formula Dlx 500.

30

Raccord *nipple Formula Dlx 500.

Raccord *nipple Formula Dlx 500.

31

Capuchon *cap Formula Dlx 500.

Capuchon *cap Formula Dlx 500.

32

Ressort *spring Formula Dlx 500.

Ressort *spring Formula Dlx 500.

33

Capuchon *cap Formula Dlx 500.

Capuchon *cap Formula Dlx 500.

34

Plongeur Ass. *plunger-assy Formula Dlx 500.

Plongeur Ass. *plunger-assy Formula Dlx 500.

35

Guide *guide Holder Formula Dlx 500.

Guide *guide Holder Formula Dlx 500.

36

Trousse Outils *tool Kit Formula Dlx 500.

Trousse Outils *tool Kit Formula Dlx 500.
