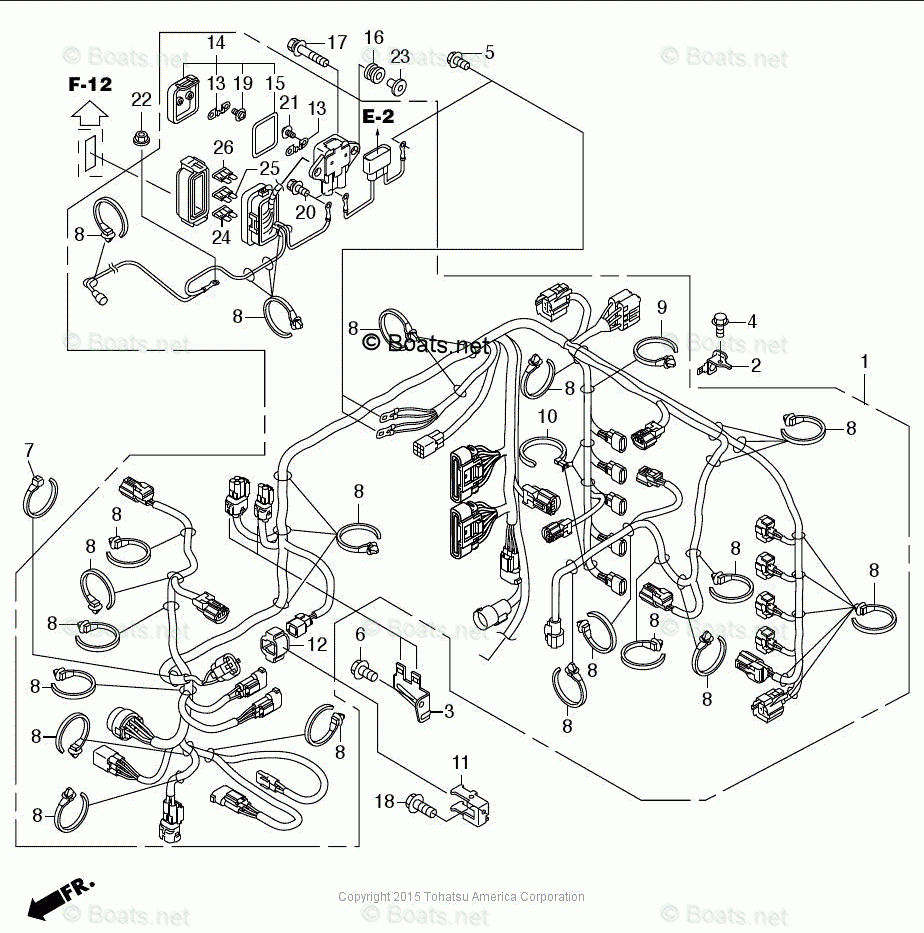

Main Wire Harness

Tohatsu BFT90A
Tohatsu
#oem кодцена
F-7-24
HCO9820041000
FUSE, MINI (10A)
F-7-4
HZW990011000
BOLT, FLANGE, 6X14 (CT200)
F-7-1
HZZ032100H00
HARNESS ASSY, MAIN WIRE
F-7-15
HZY938233000
PACKING, FUSE BOX COVER
F-7-14
HZY938216003
COVER ASSY., FUSE (70A)
F-7-13
HZY938201003
FUSE 70A
F-7-11
HZY932104H00
BRACKET, COUPLER
F-7-3
HZY932103000
BRACKET C, COUPLER
F-7-2
HZY932101000
BRACKET A, COUPLER
F-7-6
HZW990014000
BOLT, FLANGE, 6 X 10
F-7-5
HZW990013000
BOLT, FLANGE, 6X12
F-7-18
HZW990011000
BOLT, FLANGE, 6X14 (CT200)
F-7-20
HZW590106000
BOLT-WASHER, 5X9
F-7-25
HCO9820041500
FUSE, MINI (15A)
F-7-19
HZW590105003
SCREW-WASHER, 3X7
F-7-17
HZW290003000
BOLT-WASHER, 6X27 (CT200)
F-7-22
HZW190203000
NUT-WASHER, 8MM
F-7-16
HZW138551000
GROMMET, RELAY
F-7-23
HZV591553010
COLLAR, C.D.I. UNIT CASE
F-7-9
HSW591551003
CLIP, HARNESS BAND (BROWN)
F-7-10
HSJ691558003
STRAP, HARNESS (30) (BLACK)
F-7-21
HSB290153003
SCREW-WASHER, 5X10
F-7-8
HS0A91541003
CLIP, HARNESS BAND (BLACK)
F-7-26
HCO9820043000
FUSE, MINI (30A)
F-7-12
HZZ332127000
SUSPENSION, COUPLER
