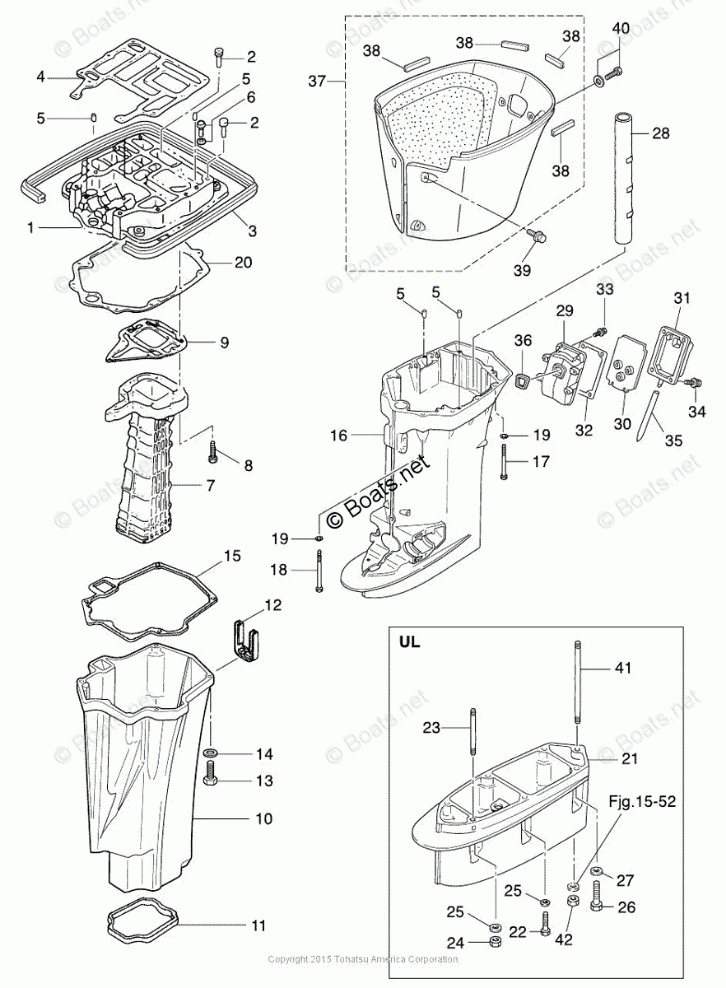

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MD90C2
Tohatsu
#oem кодцена
14-5
345011110
DOWEL PIN 6-12
14-39
9101E35612
BOLT WASHER (10 MULTIPLE)
14-32
3T1612440
GASKET, PASSAGE COVER
14-37
3T1Q612250
APRON ASSY (AMB)
14-29
3T1Q612410
IDLE EXHAUST PASSAGE (AMB)
14-31
3T1Q612450
COVER, IDLE EXHAUST PASSAGE (AMB)
14-1
3T9Q013011
ENGINE BASE (AMB)
14-8
3V2600010
BOLT, 6-35 PRECOATED
14-13
9101E30830
BOLT (10 MULTIPLE)
14-40
9101E35616
BOLT WASHER (10 MULTIPLE)
14-38
3T1612130
APRON SEAL
14-33
9101E35620
BOLT WASHER (10 MULTIPLE)
14-6
9101E35635
BOLT WASHER (10 MULTIPLE)
14-34
9101E35635
BOLT WASHER (10 MULTIPLE)
14-23
9153E30825
STUD BOLT
14-24
9301030800
NUT (10 MULTIPLE)
14-14
9402E30800
WASHER (10 MULTIPLE)
14-19
9402E30800
WASHER (10 MULTIPLE)
14-25
9402E30800
WASHER (10 MULTIPLE)
14-30
3T1612420
SEPARATION, IDLE EXHAUST PASSAGE
14-36
3T1612120
APRON GROMMET
14-4
3B7013034
GASKET, ENGINE BASE
14-42
3B7611140
NUT
14-7
3B7023110
EXHAUST PIPE
14-9
3B7023122
GASKET, EXHAUST PIPE
14-26
3B7600015
BOLT
14-20
3B7610122
GASKET, DRIVE SHAFT HOUSING
14-17
3B7610173
BOLT 8-105
14-18
3B7610181
BOLT 8-115
14-41
3B7611120
STUD BOLT
14-15
3B7611812
GASKET
14-35
3T1610970
WATER OUTLET HOSE
14-11
3B7611821
GROMMET EXHAUST HOUSING
14-28
3B7611860
REVERSE GAS PASSAGE PIPE
14-12
3B7612070
GROMMET, IDLE EXHAUST PORT
14-3
3B7671160
SEAL RUBBER
14-2
3B7671790
DRAIN PLUG
14-21
3B7Q611100
EXTENSION HOUSING UL (AMB)
14-10
3D8611800
EXHAUST HOUSING
14-22
3T1600011
BOLT 8-35
14-27
9402E31000
WASHER (10 MULTIPLE)
