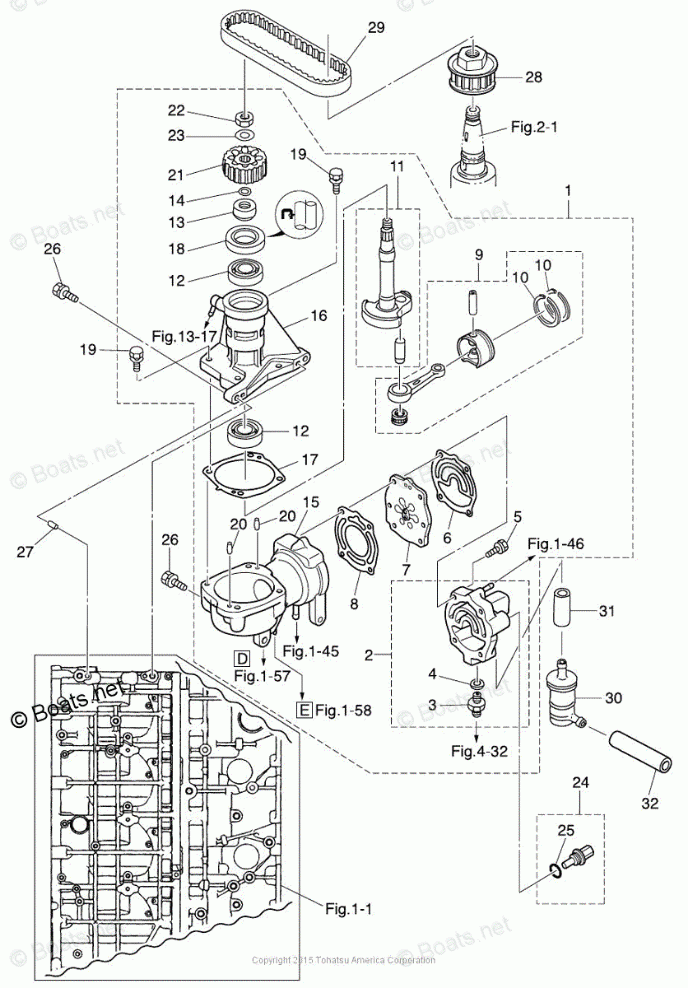

AIR COMPRESSOR Каталог оригинальных запчастей для лодочных моторов Tohatsu MD90C2 (2015)

AIR COMPRESSOR

Tohatsu MD90C2

oem код

название

цена

5-22

309001320

MAGNETO NUT

5-9

3T1873300

CONNECTING ROD, AIR COMPRESSOR PISTON

5-31

98AT130060

HOSE

5-12

960106203

BEARING

5-5

9101E35635

BOLT WASHER (10 MULTIPLE)

5-19

9101E35625

BOLT WASHER (10 MULTIPLE)

5-26

9101035830

BOLT

5-24

3Y9725140

WATER TEMPERATURE SENSOR, D40/50/70/90/115A/F25/30B

5-14

3T5100460

O-RING

5-18

3T5100410

OIL SEAL

5-4

3T5043090

WASHER, METAL

5-3

3T5043080

ADAPTER, HOSE JOINT

5-16

3T1B100490

HOUSING, COMPRESSOR (MD75-90C2/MD1115A2)

5-15

3T1B100480

CYLINDER, COMPRESSOR-D75C2/90C2/115A2-AIR COMP

5-11

3T1873311

CRANK SHAFT, AIR COMPRESSOR

5-17

3T1100540

GASKET, COMPRESSOR HOUSING

5-20

334650120

DOWEL PIN,4-10

5-13

3T1100420

COLLAR, 13.5-25-13

5-10

3T1100250

PISTON RING, COMPRESSOR

5-8

3T1100190

GASKET, VALVE SEAT

5-6

3T1100120

GASKET, COMPRESSOR HEAD

5-2

3HKB100090

COMPRESSOR HEAD (WITH NIPPLE), D115A2

5-7

3HK100101

REED VALVE ASSY, D75C2/90C2/115A2-AIR COMP

5-30

3GF101300

AIR FILTER MD40/50B2/75/90C2/115A2 (TLDI)

5-25

3G9661360

O-RING

5-1

3FWB100001

AIR COMPRESSOR ASSY, D75/90C2

5-21

3FW100620

DRIVE PULLEY

5-29

3FW100610

DRIVE BELT

5-28

3FW100600

DRIVE PULLEY, D75/90C2

5-23

3B7011160

WASHER (10 MULTIPLE)

5-27

345011110

DOWEL PIN 6-12

5-32

98AT130140

HOSE
