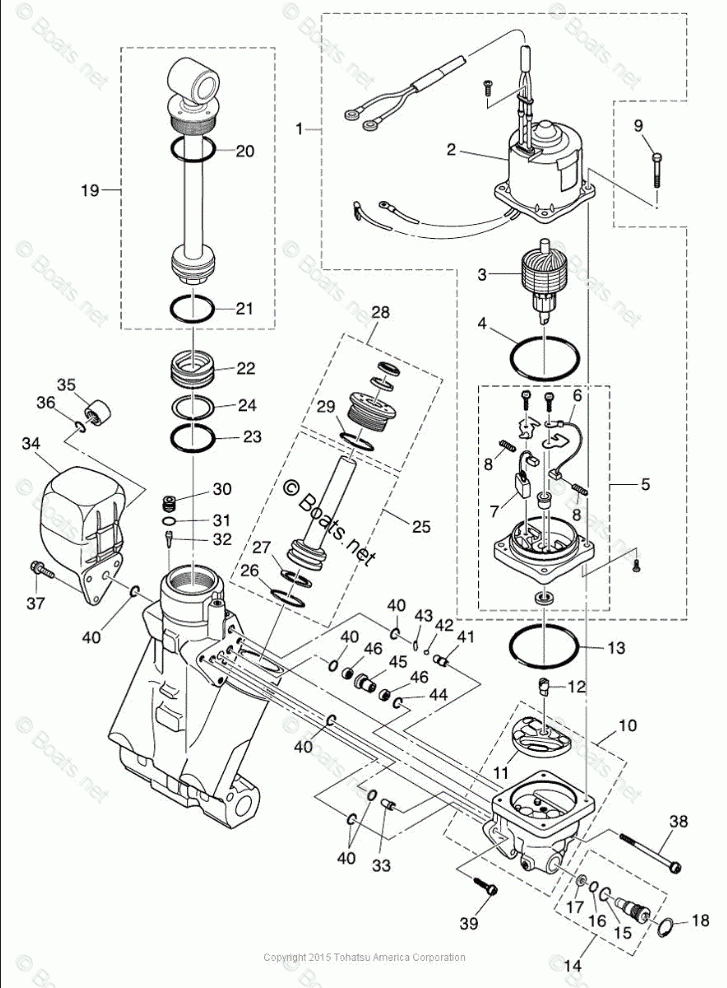

POWER TRIM & TILT

Tohatsu MD90C2
Tohatsu
#oem кодцена
18-4
353771821
O-RING, MOTOR
18-11
3E0774340
FILTER B
18-25
3E0773880
PISTON, TRIM
18-28
3E0773950
ROD GUIDE SUB ASSY, TRIM
18-29
3E0773980
O-RING, ROD GUIDE 120/140
18-16
3E0774070
O-RING
18-17
3E0774080
BACK-UP RING
18-10
3E0774301
PUMP
18-38
3E0774311
BOLT
18-39
3E0774320
BOLT
18-45
3E0774530
VALVE SEAT
18-19
3E0773651
PISTON ROD ASSY, TILT
18-46
3E0774560
FILTER
18-30
3E0774720
PLUG
18-32
3E0774750
FILTER
18-33
3E0774790
ORIFICE
18-41
3E0775570
ORIFICE
18-42
3E0775580
BALL
18-43
3E0775590
PIN
18-1
3T9771800
MOTOR ASSY
18-2
3T9771950
YOKE ASSY
18-20
3E0773830
O-RING, PISTON ROD, PTT 120/140
18-9
3E0771991
BOLT, TRIM MOTOR
18-7
353771910
BREAKER
18-15
3B7774110
O-RING
18-13
3B7771670
O-RING
18-44
3B7771690
O-RING
18-31
3B7771790
O-RING
18-23
3B7773750
O-RING
18-21
3B7773750
O-RING
18-24
3B7773760
BACK-UP RING
18-22
3B7773770
FREE PISTON
18-26
3B7773920
O-RING
18-27
3B7773930
BACK UP RING
18-37
3E0771590
BOLT
18-5
3E0771920
BRACKET ASSY
18-12
3E0771630
COUPLING, PUMP
18-34
3E0771650
OIL TANK RESERVOIR
18-40
3E0771670
O-RING
18-35
3E0771680
CAP
18-36
3E0771690
O-RING
18-14
3E0771761
MANUAL VALVE
18-6
3E0771830
BRUSH
18-8
3E0771840
SPRING, BRUSH-NOT FOR SALE
18-3
3E0771900
ARMATURE ASSY-NOT FOR SALE
18-18
9450031800
C-RING
