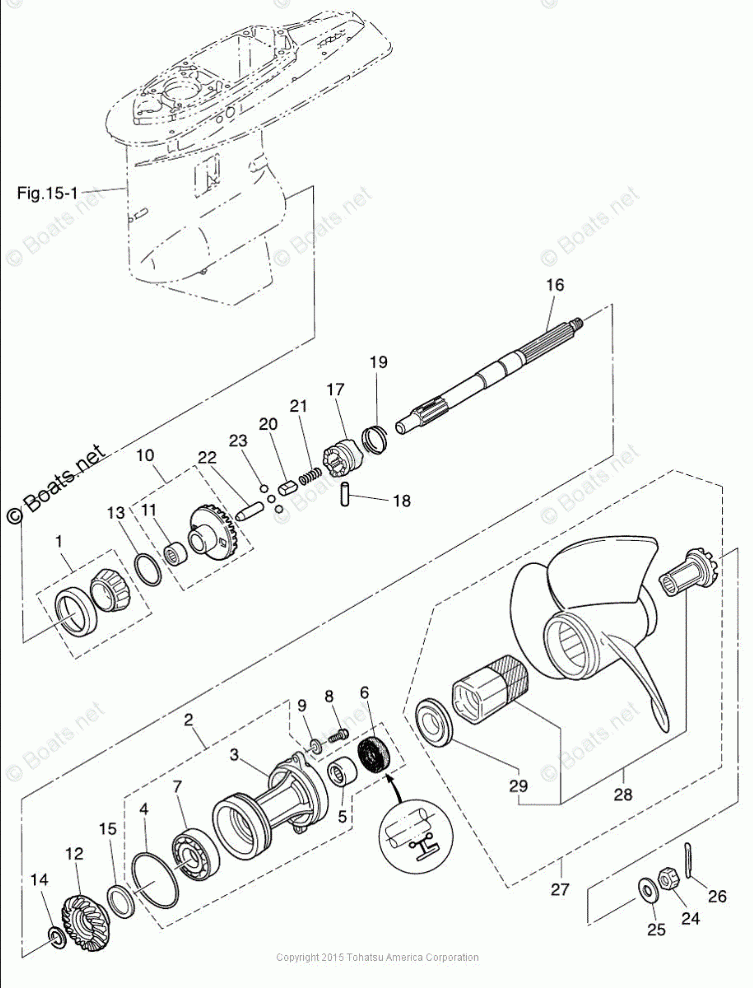

GEAR CASE (PROPELLER SHAFT)

Tohatsu MD90C2
Tohatsu
#oem кодцена
16-25
345641240
WASHER,PROP NUT (40C;40D-140)
16-12
3Y7640930
BEVEL GEAR C
16-27
3N4B645341
PROP M-16 70C,90A,115A2,120A2,140A2 (13.25 X 16 PITCH)
16-27
3N4B645451
PROP M-21 70C, 90A, 115A2, 120A2, 140A2 (12.75 X 21 PITCH)
16-17
3T1642152
CLUTCH, M60C-140A2, MD70B-115A
16-20
3T1642220
CLUTCH SPRING RETAINER
16-22
3T1642230
CLUTCH PUSH ROD
16-23
3T1642240
STEEL BALL
16-28
3Y9642380
PROPELLER HUB KIT, 70/90 TLDI
16-29
3E0642350
FORWARD THRUST WASHER
16-9
9402E30800
WASHER (10 MULTIPLE)
16-26
9515030325
SPLIT PIN (10 MULTIPLE)
16-7
960106208
BEARING
16-27
9999RUBA311
PROP, RUBEX ALUM D3, 14.0 DIA. X 11 PITCH, 3-BLADE (SEE NOTE)
16-27
9999RUBA313
PROP, RUBEX ALUM D3, 13.75 DIA. X 13 PITCH, 3-BLADE (SEE NOTE)
16-27
9999RUBA315
PROP, RUBEX ALUM D3, 13.5 DIA. X 15 PITCH, 3-BLADE (SEE NOTE)
16-27
9999RUBA317
PROP, RUBEX ALUM D3, 13.25 DIA. X 17 PITCH, 3-BLADE (SEE NOTE)
16-10
3FW640100
BEVEL GEAR A, D75/90C2
16-1
3C7602150
TAPER ROLLER BEARING
16-21
346642210
CLUTCH SPRING
16-14
3B7640320
WASHER, BEVEL GEAR C
16-24
353641210
PROP NUT(40D-140) 21MM (WRENCH)
16-4
3B7601030
O-RING
16-6
3B7601110
OIL SEAL
16-5
3B7602110
BEARING
16-11
3B7640110
NEEDLE BEARING
16-13
3B7640120
SHIM KIT
16-15
3B7640330
SHIM KIT
16-8
3C7601082
BOLT 8-30 PRECOATED
16-14
3B7640340
WASHER, BEVEL GEAR C
16-14
3B7640350
WASHER, BEVEL GEAR C
16-16
3B7642110
PROPELLER SHAFT (15 SPLINE)
16-18
3B7642180
PIN
16-19
3B7642191
SNAP
16-3
3B7Q601011
HOUSING, PROPELLER SHAFT (AMB)
16-2
3B7Q873231
PROP SHAFT HOUSING ASSY (AMB)
16-27
9999RUBA319
PROP, RUBEX ALUM D3, 13.2 DIA. X 19 PITCH, 3-BLADE (SEE NOTE)
