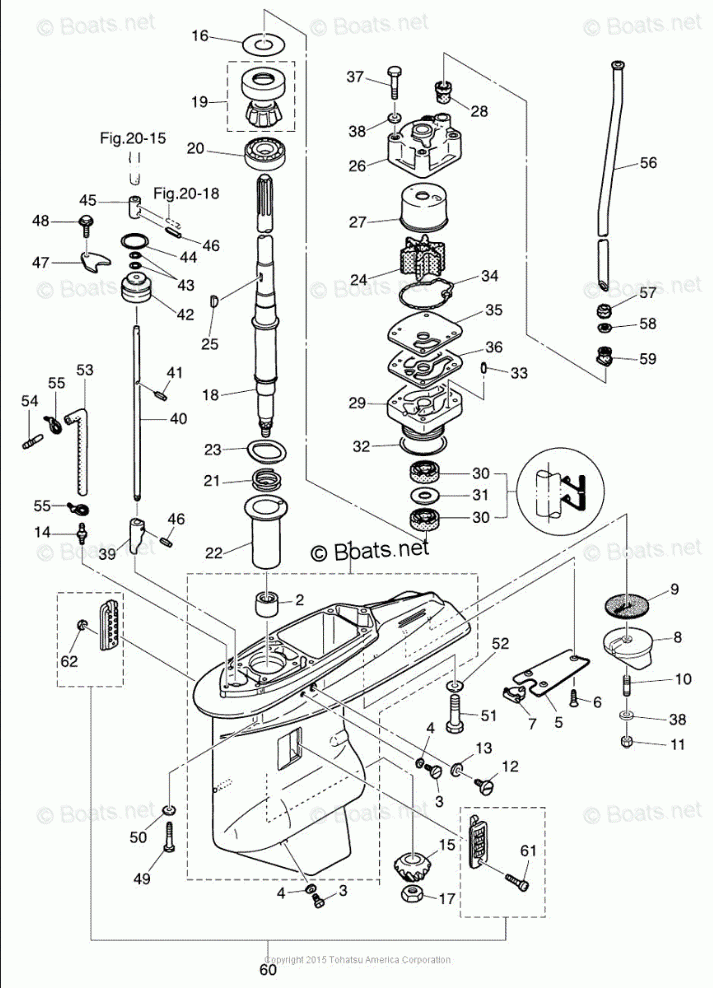

GEAR CASE, DRIVE SHAFT

Tohatsu MD90C2
Tohatsu
#oem кодцена
15-3
332600052
OIL PLUG (8 X 1.25)
15-57
3C7652060
SEAL, UPPER RUBBER, WATER PIPE
15-21
3C7643271
SPRING, DRIVE SHAFT
15-22
3C7643280
GUIDE, DRIVE SHAFT SPRING
15-27
3C7650110
LINER, WATER PUMP CASE
15-28
3C7650140
SEAL, LOWER RUBBER, WATER PIPE
15-26
3C7650160
UPPER PUMP CASE
15-29
3C7650172
LOWER PUMP CASE
15-34
3C7650180
SEAL, WATER PUMP CASE
15-24
3C7650211
IMPELLER (NS120A/140A/70/90TLDI)
15-35
3C7650250
GUIDE PLATE, WATER PUMP
15-36
3C7650290
GASKET, PUMP GUIDE PLATE
15-56
3C7651100
WATER PIPE L
15-56
3C7651200
WATER PIPE UL
15-59
3C7652040
LOCKING RUBBER, WATER PIPE
15-1
3C7Q600006
GEAR CASE, D70B~115
15-18
3C7643023
DRIVE SHAFT L
15-15
3FW640200
BEVEL GEAR B (PINION), D75/90C2
15-49
3T1600011
BOLT 8-35
15-48
9101E35612
BOLT WASHER (10 MULTIPLE)
15-10
9153E30825
STUD BOLT
15-37
9161E30885
BOLT
15-61
9215030445
SCREW
15-6
9216E30614
SCREW (10 MULTIPLE)
15-62
9304030400
NYLON NUT (10 MULTIPLE)
15-11
9304030800
NYLON NUT (10 MULTIPLE)
15-38
9401030800
WASHER (10 MULTIPLE)
15-50
9402E30800
WASHER (10 MULTIPLE)
15-52
9402E31000
WASHER (10 MULTIPLE)
15-41
9514033510
SPRING PIN (10 MULTIPLE)
15-46
9514033516
SPRING PIN (10 MULTIPLE)
15-18
3C7643033
DRIVE SHAFT UL
15-30
3C7602231
OIL SEAL (70B/70C-90A-140A2 REQ 2)
15-4
332600060
GASKET (10 MULTIPLE)
15-8
3B7602171
TRIM TAB
15-33
334650120
DOWEL PIN,4-10
15-58
345652050
COLLAR
15-43
345660210
O-RING A
15-31
346640230
SHIM KIT
15-16
353640120
SHIM A KIT
15-47
353660240
STOPPER
15-45
353662411
JOINT SHIFT ROD
15-55
353843980
LEAD
15-51
3B7600015
BOLT
15-5
3B7600121
PLATE GEAR CASE
15-7
3B7600130
HOLE PLUG
15-12
3B7600151
WATER PLUG
15-13
3B7600161
GASKET
15-9
3B7602190
PACKING, TRIM TAB
15-20
3C7602140
BALL BEARING
15-17
3B7640270
NUT, BEVEL GEAR B
15-32
3B7650150
O-RING
15-25
3B7650221
IMPELLER KEY
15-39
3B7660111
CLUTCH CAM
15-40
3B7660131
CAM ROD L
15-40
3B7660141
CAM ROD-UL
15-44
3B7660230
O-RING
15-42
3B7660311
BUSHING CAM ROD
15-14
3C7600170
NIPPLE (1/8 NPT)
15-54
3C7600180
NIPPLE
15-60
3C7602051
WATER STRAINER (SET OF 2)
15-23
3C7602100
WAVE WASHER, D=47.2
15-2
3C7602111
NEEDLE BEARING
15-19
3C7602130
ROLLER BEARING (0506)
15-53
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
