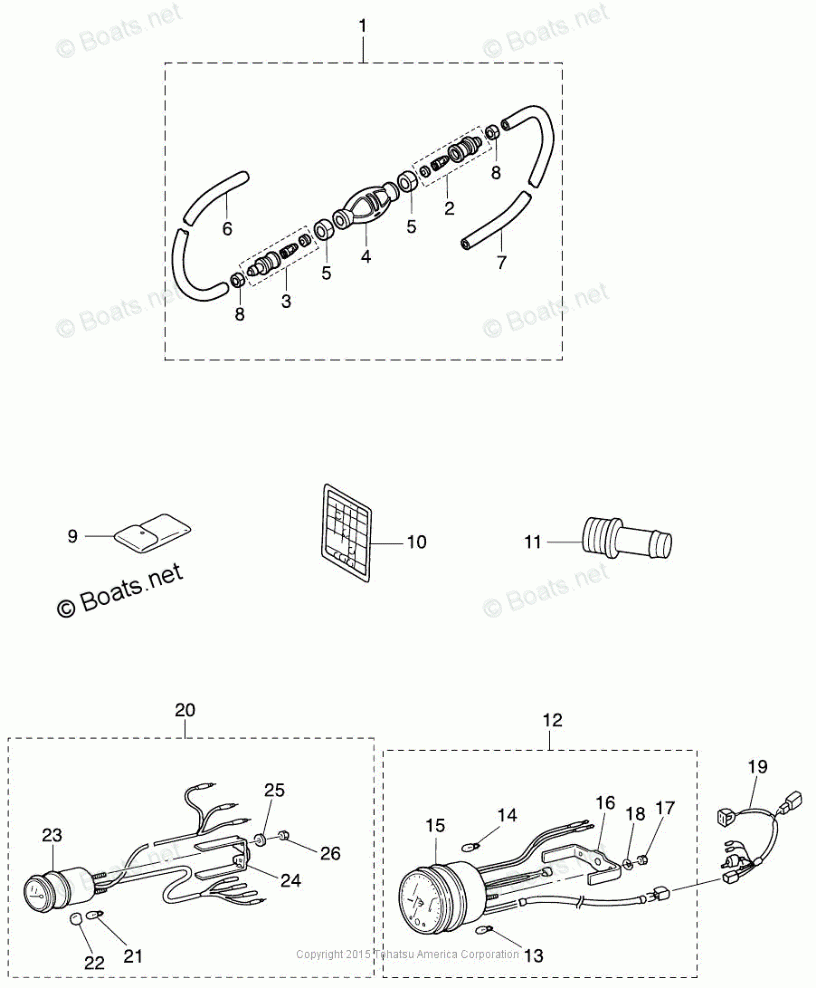

Accessories

Tohatsu MD115A2
Tohatsu
#oem кодцена
23-8
332702010
CLAMP
23-11
3T1724050
HOSE JOINT
23-6
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
23-18
9413030500
SPRING WASHER (10 MULTIPLE)
23-25
9413030400
SPRING WASHER (10 MULTIPLE)
23-17
9302030500
NUT (10 MULTIPLE)
23-26
9302030400
NUT
23-12
3Z5726401
TACHOMETER -NLA
23-19
3T5725371
LEAD WIRE, METER (L=8000 mm)
23-10
3T5720500
LABEL, WARNING BUZZER CAUTION
23-24
3T1726650
PLATE, FITTING
23-21
3T1726590
BULB, METER
23-22
3T1726530
CAP, METER BULB
23-20
3T1725710
TRIM METER ASSY. (2-WIRE) NO LONGER AVAILABLE
23-6
3GF702410
HOSE (LOW PERMEATION)
23-23
3B7726550
DAMPER, METER
23-7
3GF702400
HOSE (LOW PERMEATION)-DISCONTINUED
23-4
3GF702111
PRIMER BULB, LOW PERMEATION
23-1
3FF702004
PRIMER BULB ASSY, W/O CONN (LOW PERM)
23-3
3C7702241
JOINT A ASSY, OUTER
23-2
3C7702201
JOINT A ASSY, INNER
23-5
3C7702170
CLAMP
23-4
3C7702111
PRIMER BULB
23-9
3BJ721000
TOOL SET (MFS2.5-MFS50)
23-16
3B7726610
PLATE, FITTING
23-14
3B7726590
BULB, METER-DISCONTNIUED
23-13
3B7726580
BULB OIL
23-15
3B7726560
DAMPER, METER
23-7
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
