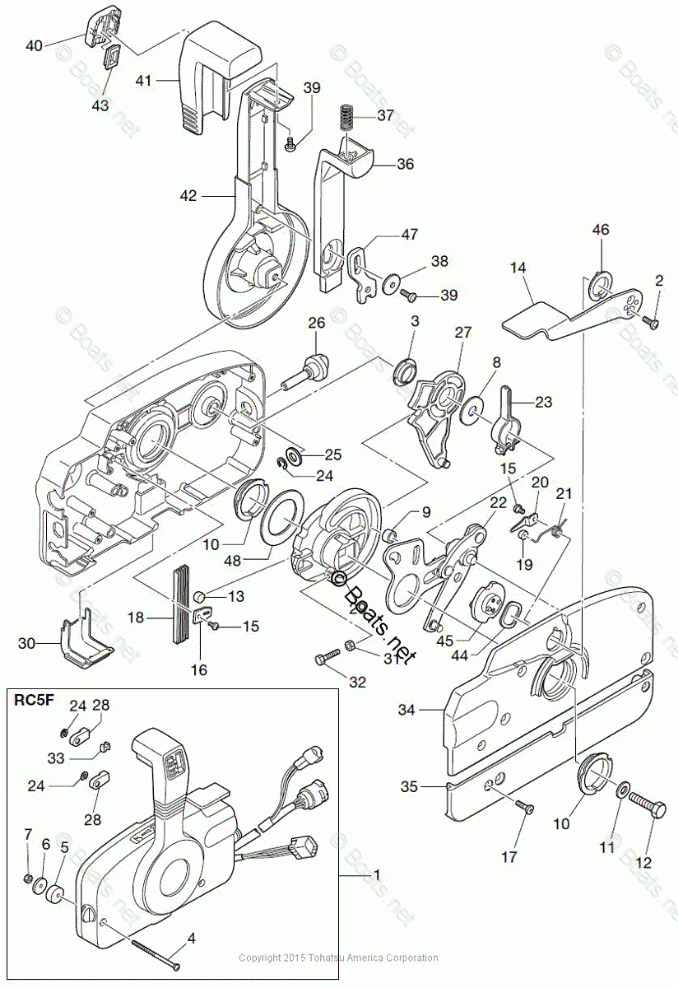

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD115A2
Tohatsu
#oem кодцена
21-6
353843710
WASHER
21-35
3B7Q843660
REAR PANEL
21-30
3A3844290
WIRE COVER
21-10
3A3844310
BUSHING A
21-3
3A3844320
BUSHING B
21-46
3A3844350
BUSHING
21-12
3A3844420
BOLT
21-40
3A3844510
FINISHER, TILT
21-43
3A3844520
PLUG, TILT SWITCH
21-14
3B7Q843120
FREE THROTTLE LEVER
21-42
3B7Q843430
CONTROL LEVER (AMB)
21-34
3B7Q844410
REAR HOUSING
21-26
3A3844270
SCREW, FRICTION
21-1
3GFQ845001
RC BOX, RC5F, ALL TLDI/MFS40/50A
21-32
9101030525
BOLT (10 MULTIPLE)
21-15
9215030406
SCREW (10 MULTIPLE)
21-39
9215030510
SCREW (10 MULTIPLE)
21-2
9216030512
SCREW (10 MULTIPLE)
21-17
9216030516
SCREW (10 MULTIPLE)
21-31
9301030500
NUT (10 MULTIPLE)
21-7
9301030600
NUT (10 MULTIPLE)
21-11
9401030800
WASHER (10 MULTIPLE)
21-23
3A3844280
ARM
21-20
3A3844260
RETAINER
21-13
353843880
ROLLER, THROTTLE DRUM
21-27
3A3843810
SHIFT GEAR ASSY
21-25
353843940
WASHER
21-28
3A3833142
TERMINAL EYE
21-18
3A3843070
SPRING
21-29
3A3843642
DRIVE GEAR
21-22
3A3843651
THROTTLE ARM
21-44
3A3843680
WAVE WASHER
21-5
3A3843740
SPACER
21-4
3A3843750
SCREW
21-33
3A3843760
GROMMET
21-8
3A3843830
WASHER
21-21
3A3844250
SPRING, FREE ACCELERATOR
21-45
3A3843910
DRUM, FREE ACCELERATOR
21-36
3A3844010
ARM, NEUTRAL LOCK
21-37
3A3844030
SPRING
21-41
3A3844040
GRIP
21-47
3A3844060
PLATE, LOCK ARM
21-38
3A3844070
WASHER, LOCK ARM
21-9
3A3844210
ROLLER
21-48
3A3844220
THRUST PLATE
21-16
3A3844230
RETAINER
21-19
3A3844240
ROLLER, FREE ACCELERATOR
21-24
9453030600
E-RING (10 MULTIPLE)
