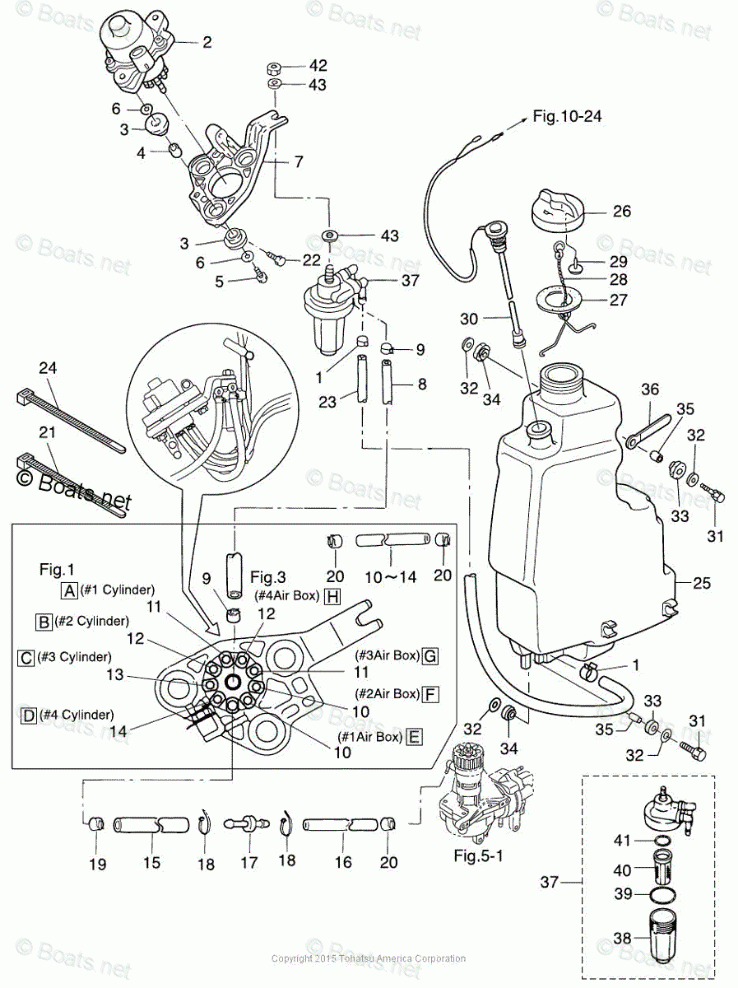

МАСЛЯНЫЙ НАСОС

Tohatsu MD115A2
Tohatsu
#oem кодцена
12-3
345671130
RUBBER MOUNT, LOWER COVER
12-5
9161E30835
BOLT (10 MULTIPLE)
12-20
3T5843980
LEAD WIRE BAND, 104
12-18
3T5843980
LEAD WIRE BAND, 104
12-7
3T7090720
BRACKET, OIL PUMP
12-17
3T9090760
JOINT, NIPPLE
12-30
3T9710200
OIL LEVEL SENSOR
12-31
9101036630
BOLT
12-22
9101E37630
BOLT (10 MULTIPLE)
12-42
9301030800
NUT (10 MULTIPLE)
12-36
3T4069721
CLAMP
12-43
9401030800
WASHER (10 MULTIPLE)
12-14
99AA21000
VINYL PIPE (1 EA.=1 METER)
12-16
99AA21000
VINYL PIPE (1 EA.=1 METER)
12-12
99AA21000
VINYL PIPE (1 EA.=1 METER)
12-10
99AA21000
VINYL PIPE (1 EA.=1 METER)
12-11
99AA21000
VINYL PIPE (1 EA.=1 METER)
12-13
99AA21000
VINYL PIPE (1 EA.=1 METER)
12-23
99AA61000
OIL PIPE (1 EA.=1 METER/39.37 INCHES)
12-21
3T5843980
LEAD WIRE BAND, 104
12-25
3T1710100
OIL TANK
12-33
346671130
MOUNT RUBBER
12-6
3B7637300
WASHER
12-35
346671141
SPACER
12-32
346671150
WASHER
12-24
369843980
WIRE TIE BAND
12-39
3B7022350
O-RING A
12-41
3B7022360
O-RING B
12-38
3B7022370
CUP
12-34
3B7069200
MOUNT RUBBER
12-4
3C7671141
SPACER, 8.4-12-17
12-2
3T1090100
ELECTRIC OIL PUMP
12-37
3C7710300
OIL FILTER ASSY.
12-40
3C7710330
OIL FILTER
12-26
3C8710150
CAP, OIL TANK (FOR 3B7710102M, 3C7710702M, 3T5710100M TANKS)
12-27
3C8710160
GASKET,OIL TANK CAP
12-28
3C8710170
HOOK, OIL TANK CAP
12-29
3C8710180
CHECK VALVE,OIL TANK
12-1
3GT351430
CLIP, @ 9.4
12-9
3GT351430
CLIP, @ 9.4
12-8
99AA61000
OIL PIPE (1 EA.=1 METER/39.37 INCHES)
