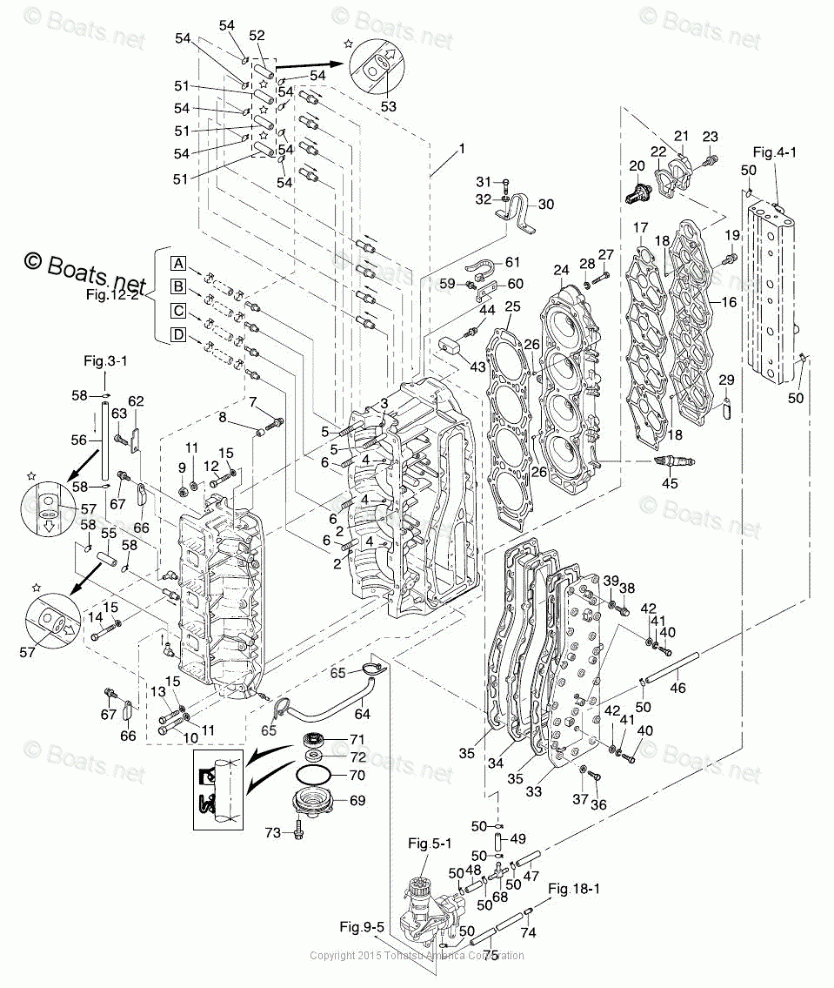

CYLINDER & CRANK CASE

Tohatsu MD115A2
Tohatsu
#oem кодцена
1-70
171000530
O-RING
1-67
9101E35612
BOLT WASHER (10 MULTIPLE)
1-38
9161190840
BOLT
1-36
9161140835
BOLT (10 MULTIPLE)
1-5
9153241065
STUD BOLT
1-6
9153241055
STUD BOLT
1-23
9101E35640
BOLT WASHER (10 MULTIPLE)
1-73
9101E35620
BOLT WASHER (10 MULTIPLE)
1-40
9101E30630
BOLT (10 MULTIPLE)
1-14
9161240865
BOLT
1-19
9101217625
BOLT
1-31
9101140820
BOLT
1-59
9101036612
BOLT (10 MULTIPLE)
1-63
9101036610
BOLT (10 MULTIPLE)
1-44
9101035630
BOLT (10 MULTIPLE)
1-7
9101030612
BOLT (10 MULTIPLE)
1-21
3T9B010600
CAP, THERMOSTAT
1-13
9161240850
BOLT
1-27
9161290875
BOLT
1-71
3T9001210
OIL SEAL
1-46
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-56
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
1-52
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
1-51
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
1-48
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-49
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-47
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-75
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-10
9161291065
BOLT
1-45
970111109
SPARK PLUG, NGK IZFR5J, IRIDIUM, (SOLD INDIVIDUALLY)
1-32
9413220800
SPRING WASHER
1-41
9413220600
SPRING WASHER (10 MULTIPLE)
1-37
9401210800
WASHER (10 MULTIPLE)
1-42
9401210600
WASHER (10 MULTIPLE)
1-39
9401030800
WASHER (10 MULTIPLE)
1-9
9311211000
NUT
1-22
3T9010321
GASKET, THERMOSTAT CAP
1-3
3T9001170
KNOCK, MAIN BEARING
1-18
334650120
DOWEL PIN,4-10
1-66
345069150
CORD CLAMP A
1-20
3C7010300
THERMOSTAT
1-43
3B7602181
ANODE
1-69
3B7012912
HEAD L/CRANK CASE
1-11
3B7011160
WASHER (10 MULTIPLE)
1-53
393011600
LINE CHECK VALVE
1-57
393011600
LINE CHECK VALVE
1-2
345011110
DOWEL PIN 6-12
1-35
3C7023051
GASKET, EXHAUST COVER
1-28
345010150
WASHER
1-15
345010150
WASHER
1-4
345001170
KNOCK MAIN BEARING
1-50
338022150
CLIP, FUEL PIPE
1-58
338011330
LOCK RING
1-54
338011330
LOCK RING
1-26
334650120
DOWEL PIN,4-10
1-72
3C7012150
OIL SEAL, 19.6-35-10
1-30
3C7B015132
HANGER
1-68
3T7011750
T-NIPPLE (WITH VALVE)
1-60
3T1761740
STAY, LEAD WIRE BAND
1-65
3T5843980
LEAD WIRE BAND, 104
1-29
3T5069710
CLAMP
1-33
3T1B023000
EXHAUST COVER, OUTER
1-1
3T1B011000
CRANK CASE, CYLINDER MD115A
1-16
3T1B010210
COVER, CYLINDER HEAD
1-61
3T1843980
LEAD WIRE BAND, 170 (LOCAL PURCHASE)
1-8
3T1760790
COLLAR
1-34
3C7B023020
EXHAUST COVER INNER
1-62
3T1069720
PLATE
1-74
3T1011380
WATER NIPPLE
1-17
3T1010240
GASKET, CYLINDER HEAD COVER
1-25
3T1010050
GASKET, CYLINDER HEAD
1-12
3LD010120
CYLINDER HEAD BOLT
1-64
3KD091150
OIL HOSE
1-24
3HKB010910
CYLINDER HEAD, D115A2
1-55
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
