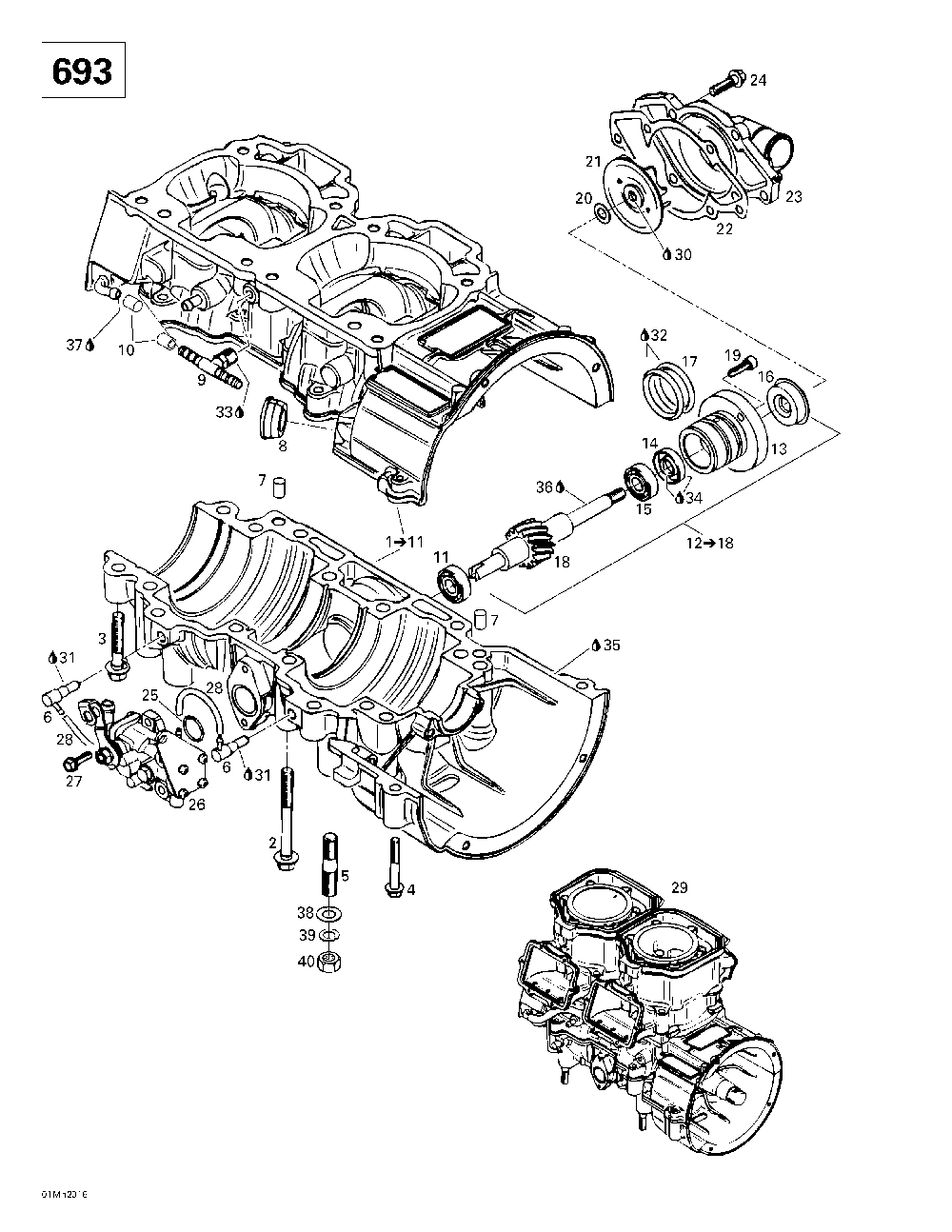

01- crankcase, water pump and oil pump 2

Ski-Doo (Bombardier) Formula Z 600/700
Ski-Doo (Bombardier)
#oem кодцена
1
420888272
Carter Moteur *crankcase-assy Includes 1 - 11. Formula Z 700.
2
420841316
Screw-hex Collar M8x75 Sw 11 Formula Z 700.
3
420640431
Screw-hex Collar M8x45 Sw 11 Formula Z 700.
4
420640311
Screw-hex Collar M6x45 Formula Z 700.
5
420941644
Stud-m10 X 23/17 Formula Z 700.
6
420956510
Soupape Retenue*valve-check Formula Z 700.
7
420632010
Goupille *pin-center Formula Z 700.
8
420860965
Passe-cable *grommet-cable Formula Z 700.
9
420874360
Raccord En T *fitting-t Formula Z 700.
10
420960770
Bouchon *cap Formula Z 700.
11
420232100
Roulement Bille*ball Bearing Formula Z 700.
12
420837421
Arbre Pompe *oil/water Pump Shaft Includes 12 - 18. Formula Z 700.
14
420230195
Anneau Etanche *seal-oil Formula Z 700.
16
420650370
Joint Tournant *rotary Seal Formula Z 700.
17
420950890
Joint Torique *o Ring Formula Z 700.
19
420840511
Screw-allen M5 X 16 Formula Z 700.
20
420227945
Rondelle *washer Formula Z 700.
21
420222505
Turbine A Eau *impeller-water Formula Z 700.
22
420931810
Joint *gasket Formula Z 700.
23
420922630
Log.pompe Eau *hous-waterpump Formula Z 700.
24
420240031
Screw-hex.m6 X 25 Formula Z 700.
25
293300041
Joint Torique *o-ring Formula Z 700.
26
420888265
Pompe A Huile *pump-oil Assy. Formula Z 700.
27
420941925
Screw-tapping M5 X 16 Formula Z 700.
28
414413800
Boyau D Huile *hose-oil Formula Z 700.
29
420069302
Moteur 693 Semi*block-short 693 Formula Z 700.
30
293800060
Loctite 243 *loctite-243 Formula Z 700.
31
413711400
Loctite 648 *loctite-648 Formula Z 700.
32
413707000
Dow Corning 111*dow Corning 111 Formula Z 700.
34
420899271
Graisse *grease Formula Z 700.
35
420297906
Compose Etanche*compound Sealing Formula Z 700.
36
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Formula Z 700.
37
293550021
Graisse Isoflex*grease-isoflex Formula Z 700.
38
234001410
0asher-flat Din.125a Formula Z 700.
39
234100602
Washer-lock Spring Din.128a-a2 Formula Z 700.
40
232006414
Nut-hexagonal Din.934 Formula Z 700.
15
420232100
Roulement Bille*ball Bearing Formula Z 700.
