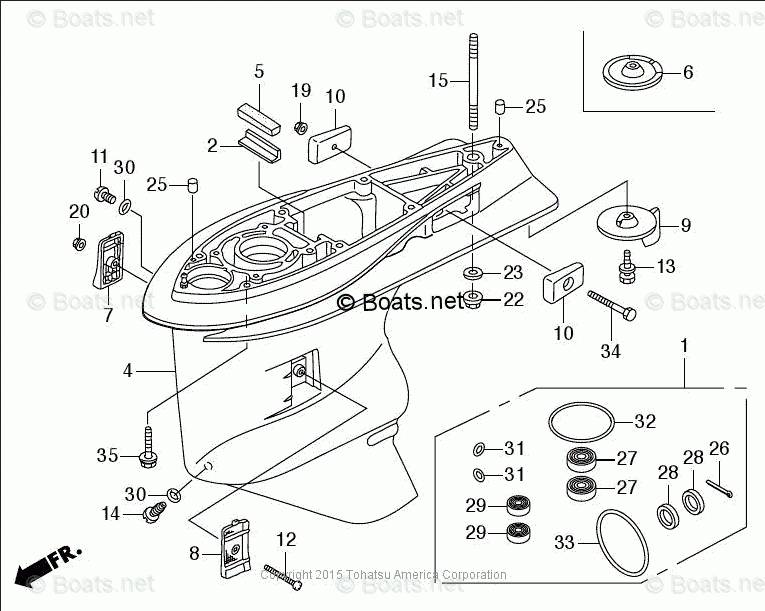

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu BFT200A
Tohatsu
#oem кодцена
F-3-34
HCO92101060554J
BOLT, HEX 6X55
F-3-6
HZX241102E00ZC
COVER, GEAR CASE
F-3-12
HZZ090101000
SCREW, FLAT, 5X55
F-3-33
HZY391351C00
O-RING, 110X3.1
F-3-29
HZY391254003
SEAL, WATER 12X21X6
F-3-14
HZY390120000
BOLT, DRAIN PLUG
F-3-8
HZY341105C01
SCREEN, L. WATER, BFT200/225.250A
F-3-7
HZY341104C01
SCREEN, R. WATER, BFT200/225.250A
F-3-1
HZY306125C00
SEAL KIT, GEAR CASE BFT200A/225A
F-3-19
HZY190205000
NUT, SELF-LOCK, 6MM
F-3-9
HZX241107C00ZC
TRIM TAB
F-3-11
HZW990101003
BOLT, OIL CHECK
F-3-32
HMJ091308003
O-RING
F-3-31
HZW491301003
O-RING 6.9X1.45
F-3-30
HZW491301003
O-RING 6.9X1.45
F-3-26
HZW190758B00
PIN, SPLIT 4.0
F-3-10
HZW141109B00
ANODE, METAL, GEAR CASE
F-3-5
HZW141102B00
GROMMET, GEAR CASE
F-3-2
HZW119286B00
PLATE, RUBBER SETTING
F-3-25
HZV590756000
DOWEL PIN, 6X10
F-3-23
HZV590559000
WASHER, PLAIN 12MM
F-3-20
HZV490302000
NUT, SELF-LOCK, 5MM
F-3-28
HZZ391252003
SEAL, PROPELLER SHAFT
