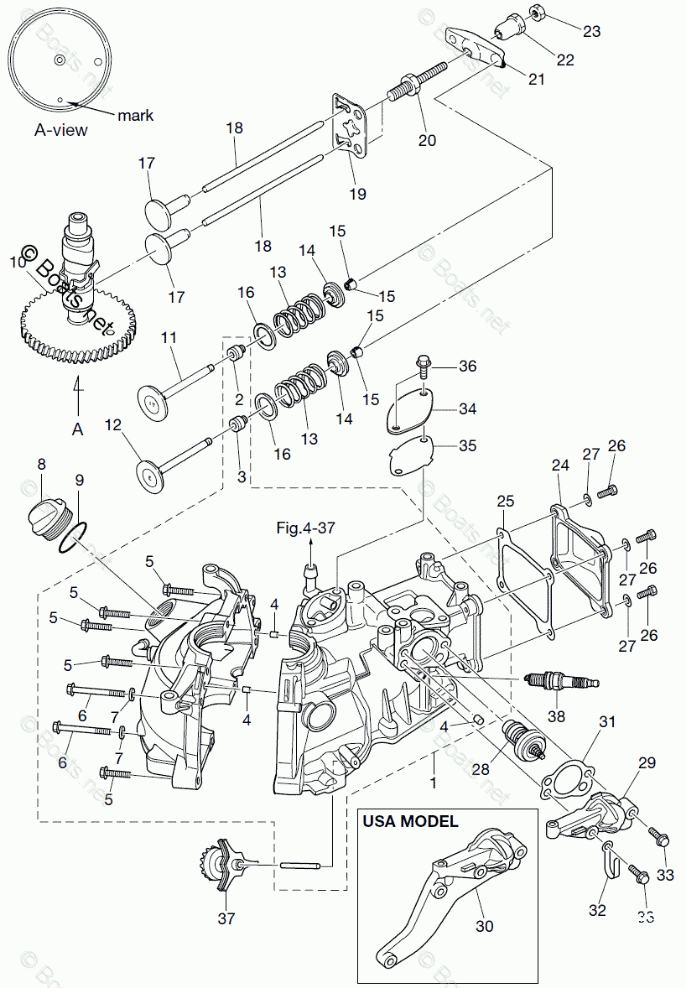

CYLINDER & CRANK CASE

Tohatsu MFS3.5B
Tohatsu
#oem кодцена
1
3GTB011002
CYL BLOCK & CRANKCASE ASSY
2
3R3072040
INTAKE VALVE STEM SEAL
3
3R3072060
EXHAUST VALVE STEM SEAL
4
345011110
DOWEL PIN 6-12
5
9101F45635
BOLT
6
9161F90675
BOLT
7
9401E30600
WASHER
8
3R0710151
OIL FILLER CAP
9
3R0074220
O-RING 3.1-24.4
10
3GT078100
CAMSHAFT ASSY
11
3AB072010
INTAKE VALVE
12
3V1072020
EXHAUST VALVE
13
3AE072030
VALVE SPRING
14
3V1072210
RETAINER
15
3H6072230
COTTER
16
3H6072050
VALVE SPRING SEAT
17
3AB072310
LIFTER
18
3H6072320
PUSH ROD
19
3AB072330
PUSH ROD PLATE
20
3H6072340
PIVOT BOLT
21
3AB072350
ROCKER ARM
22
3H6072360
ROCKER ARM PIVOT
23
3H6079370
ADJUSTING NUT
24
3ABB010210
CYLINDER HEAD COVER
25
3AB010241
CYLINDER HEAD COVER GASKET
26
9101210616
BOLT
27
3C8663080
WASHER 6 -16 -1.5
28
3H6010300
THERMOSTAT
29
3GTB010310
THERMOSTAT CAP
30
3ABB010310
THERMOSTAT CAP
31
3AB010320
THERMOSTAT CAP GASKET
32
398069720
CLAMP 6.5-67P
33
9101E35630
BOLT
34
3AB074310
BREATHER CHAMBER COVER
35
3AB074320
BREATHER CHAMBER COVER GASKET
36
9101E35616
BOLT (OR 910113-5616)
37
3AB076400
SLINGER
38
970111103
SPARK PLUG
