CARBURETOR, FUEL PUMP
CARBURETOR, FUEL PUMP

CARBURETOR, FUEL PUMP

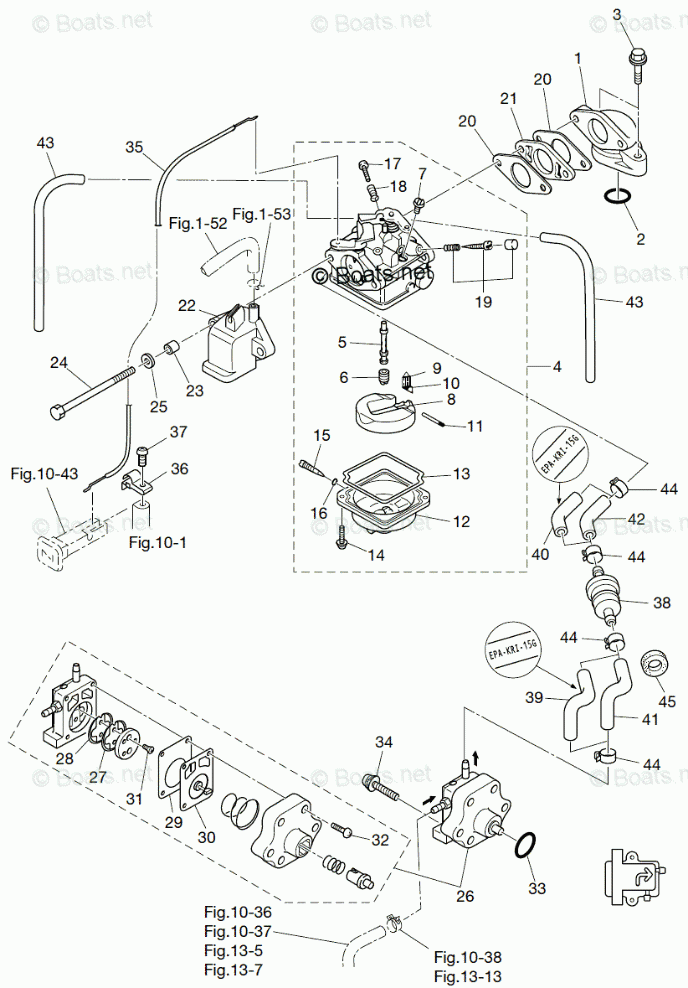

Tohatsu MFS4C

CARBURETOR, FUEL PUMP

#

oem код

название

цена

1

INTAKE MANIFOLD

INTAKE MANIFOLD

2

O-RING 2-33.5

O-RING 2-33.5

3

BOLT

BOLT

4

CARBURETOR ASSY

CARBURETOR ASSY

5

MAIN NOZZLE

MAIN NOZZLE

6

MAIN JET (#62)

MAIN JET (#62)

7

SLOW JET #38

SLOW JET #38

8

FLOAT

FLOAT

9

FLOAT VALVE

FLOAT VALVE

10

CLIP

CLIP

11

FLOAT ARM PIN

FLOAT ARM PIN

12

FLOAT CHAMBER

FLOAT CHAMBER

13

FLOAT CHAMBER GASKET

FLOAT CHAMBER GASKET

14

SCREW

SCREW

15

DRAIN SCREW

DRAIN SCREW

16

DRAIN SCREW O-RING

DRAIN SCREW O-RING

17

STOP SCREW

STOP SCREW

18

STOP SCREW SPRING

STOP SCREW SPRING

19

PILOT SCREW

PILOT SCREW

20

CARBURETOR GASKET

CARBURETOR GASKET

21

INSULATOR

INSULATOR

22

INTAKE SILENCER ASSY

INTAKE SILENCER ASSY

23

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

24

BOLT

BOLT

25

WASHER

WASHER

26

FUEL PUMP ASSY

FUEL PUMP ASSY

27

CHECK VALVE (P)

CHECK VALVE (P)

28

CHECK VALVE (R)

CHECK VALVE (R)

29

PUMP BODY GASKET

PUMP BODY GASKET

30

PUMP DIAPHRAGM

PUMP DIAPHRAGM

31

SCREW

SCREW

32

SCREW

SCREW

33

O-RING 2.62-18.72

O-RING 2.62-18.72

34

SCREW

SCREW

35

CHOKE WIRE

CHOKE WIRE

36

CABLE HOLDER

CABLE HOLDER

37

SCREW

SCREW

38

FUEL FILTER

FUEL FILTER

39

LOW PERMEATION HOSE 24-29-24

LOW PERMEATION HOSE 24-29-24

40

LOW PERMEATION HOSE L=60

LOW PERMEATION HOSE L=60

41

FUEL HOSE 24-29-24

FUEL HOSE 24-29-24

42

FUEL HOSE L=60

FUEL HOSE L=60

43

HOSE

HOSE

44

CLIP 9.5

CLIP 9.5

45

RUBBER MOUNT 9-16-4.3

RUBBER MOUNT 9-16-4.3
