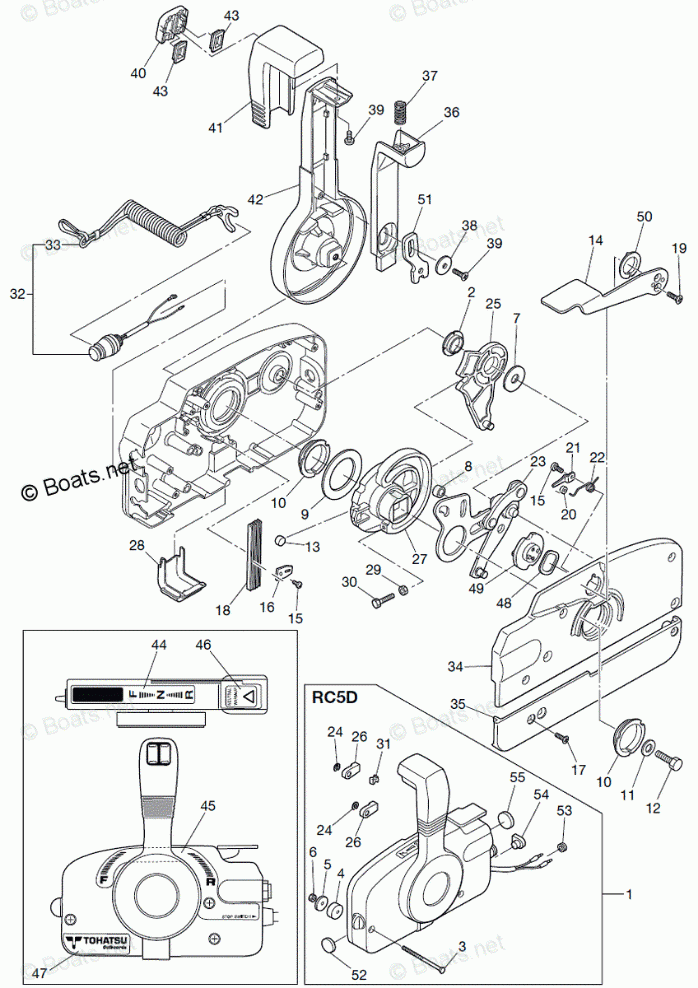

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS4C
Tohatsu
#oem кодцена
1
3B7Q843601
REMOTE CONTROL BOX (RC5D)
2
3A3844320
BUSHING
3
3A3843750
SCREW
4
3A3843740
SPACER
5
353843710
WASHER
6
9301030600
NUT
7
3A3843830
WASHER
8
3A3844210
ROLLER
9
3A3844220
THRUST PLATE
10
3A3844310
BUSHING
11
9401030800
WASHER
12
3A3844420
BOLT
13
353843880
DETENT ROLLER
14
3B7Q843120
FREE THROTTLE LEVER
15
9215030406
SCREW
16
3A3844230
DETENT RETAINER
17
9216030518
SCREW
18
3A3843070
DETENT SPRING
19
9216030512
SCREW
20
3A3844240
FREE THROTTLE ROLLER
21
3A3844260
ROLLER RETAINER
22
3A3844250
FREE THROTTLE SPRING
23
3A3843651
THROTTLE ARM
24
9453030600
E-RING D=6
25
3A3843810
SHIFT GEAR ASSY
26
3A3833142
CABLE TERMINAL
27
3A3843642
DRIVE GEAR
28
3A3844290
WIRE COVER
29
9301030500
NUT
30
9101030525
BOLT
31
3A3843760
GROMMET
32
398068300
STOP SWITCH
33
353068210
STOP SWITCH LANYARD
34
3B7Q844410
REAR HOUSING
35
3B7Q843660
REAR PANEL
36
3A3844010
NEUTRAL LOCK ARM
37
3A3844030
NEUTRAL LOCK SPRING
38
3A3844070
WASHER
39
9215030510
SCREW
40
3A3844510
TILT SWITCH COVER
41
3A3844040
GRIP
42
3B7Q843430
CONTROL LEVER
43
3A3844520
TILT SWITCH PLUG
44
3N5843360
SHIFT POSITION DECAL
45
3N5844650
SHIFT POSITION SIDE DECAL
46
3N5843310
DECAL (LEVER)
47
3N5843330
DECAL (TOHATSU)
48
3A3843680
WAVE WASHER
49
3A3843910
FREE THROTTLE DRUM
50
3A3844350
BUSHING
51
3A3844060
PLATE
52
361844140
GROMMET
53
369844180
GROMMET
54
353843210
GROMMET
55
369844160
GROMMET
