Tohatsu MFS9.8A3

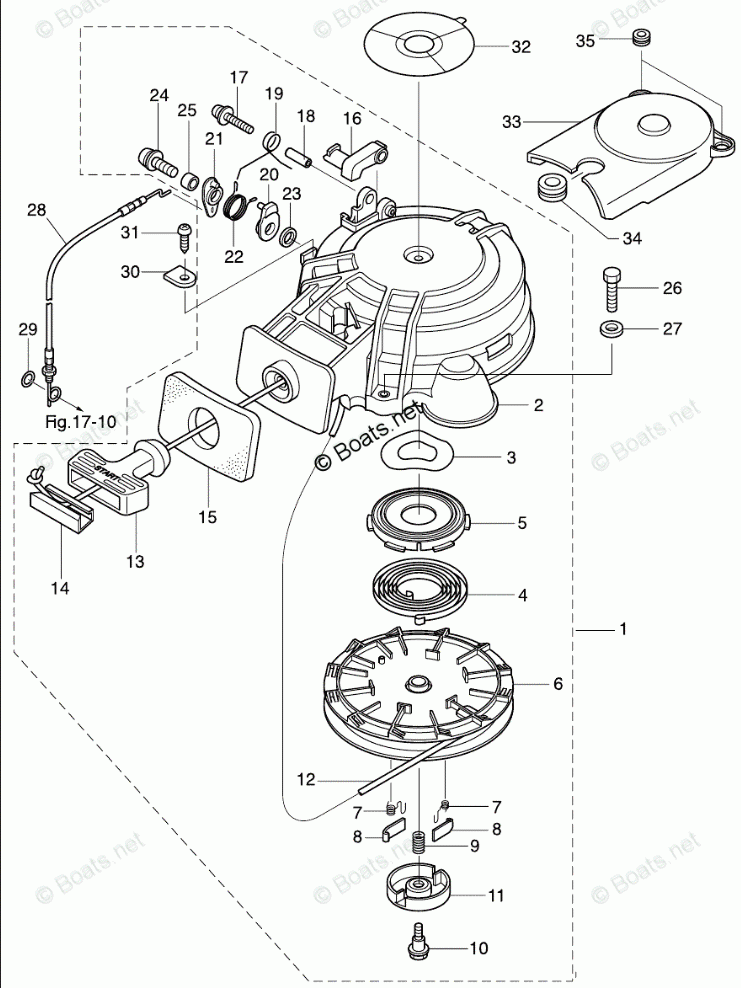

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

1

RECOIL STARTER ASSY

RECOIL STARTER ASSY

2

STARTER CASE

STARTER CASE

3

WAVE WASHER

WAVE WASHER

4

STARTER SPRING

STARTER SPRING

5

STARTER SPRING CASE

STARTER SPRING CASE

6

REEL

REEL

7

RETURN SPRING

RETURN SPRING

8

RATCHET

RATCHET

9

FRICTION SPRING

FRICTION SPRING

10

STARTER SHAFT BOLT

STARTER SHAFT BOLT

11

FRICTION PLATE

FRICTION PLATE

12

STARTER ROPE

STARTER ROPE

13

STARTER HANDLE

STARTER HANDLE

14

ROPE ANCHOR

ROPE ANCHOR

15

STARTER SEAL

STARTER SEAL

16

STARTER LOCK (BLACK)

STARTER LOCK (BLACK)

17

SCREW

SCREW

18

COLLAR 4-6-21

COLLAR 4-6-21

19

SPRING STARTER LOCK

SPRING STARTER LOCK

20

STARTER LOCK CAM

STARTER LOCK CAM

21

STARTER LOCK LEVER

STARTER LOCK LEVER

22

STARTER LOCK CAM SPRING

STARTER LOCK CAM SPRING

23

WASHER

WASHER

24

SCREW

SCREW

25

COLLAR 6.2-9-12.3

COLLAR 6.2-9-12.3

26

PRE-COATED BOLT 6-25

PRE-COATED BOLT 6-25

27

WASHER 6-16-1.5

WASHER 6-16-1.5

28

STARTER LOCK WIRE

STARTER LOCK WIRE

29

O-RING 1.5-2.5

O-RING 1.5-2.5

30

STOPPER

STOPPER

31

TAPPING SCREW

TAPPING SCREW

32

CAUTION DECAL B

CAUTION DECAL B

33

BELT COVER

BELT COVER

34

RUBBER MOUNT 2.5-20

RUBBER MOUNT 2.5-20

35

GROMMET 13.2

GROMMET 13.2
