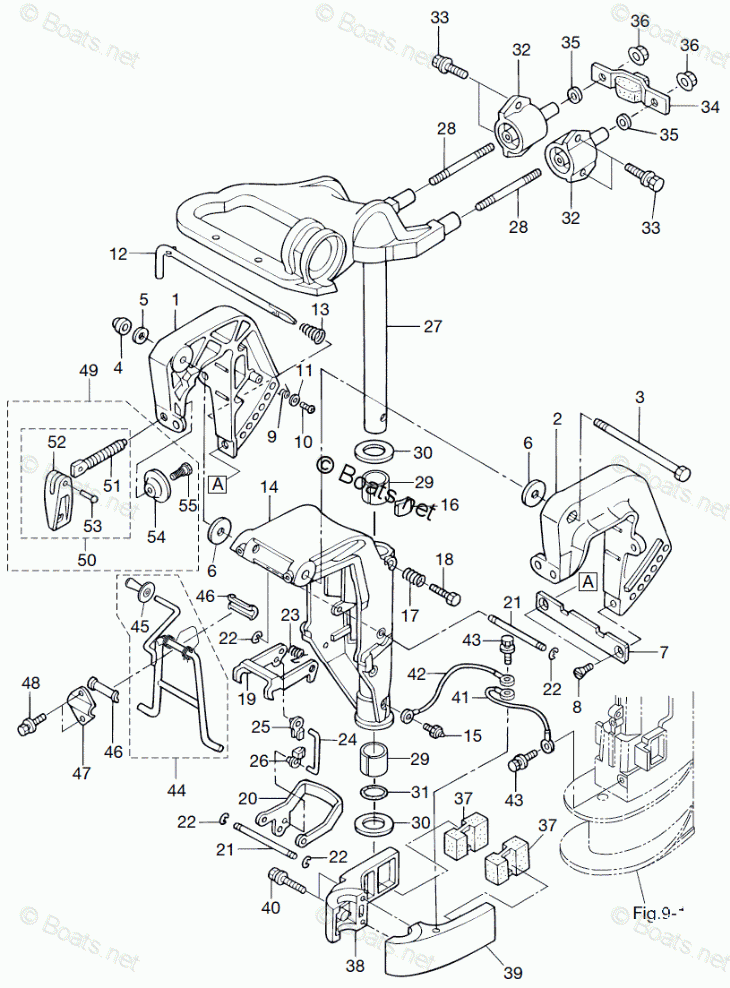

BRACKET (MF & EF MODEL)
BRACKET (MF & EF MODEL)

BRACKET (MF & EF MODEL)

Tohatsu MFS9.8A3

BRACKET (MF & EF MODEL)

#

oem код

название

цена

1

CLAMP BRACKET (R)

CLAMP BRACKET (R)

2

CLAMP BRACKET (L)

CLAMP BRACKET (L)

3

BOLT 8-122

BOLT 8-122

4

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

5

WASHER

WASHER

6

WASHER 8.5-28-1

WASHER 8.5-28-1

7

DISTANCE PLATE

DISTANCE PLATE

8

SCREW

SCREW

9

CLAMP BRACKET SPRING

CLAMP BRACKET SPRING

10

SCREW

SCREW

11

WASHER 4.3-16-1.5

WASHER 4.3-16-1.5

12

THRUST ROD

THRUST ROD

13

THRUST ROD SPRING

THRUST ROD SPRING

14

SWIVEL BRACKET

SWIVEL BRACKET

15

GREASE FITTING

GREASE FITTING

16

FRICTION PLATE

FRICTION PLATE

17

FRICTION SPRING

FRICTION SPRING

18

BOLT

BOLT

19

REVERSE LOCK

REVERSE LOCK

20

REVERSE LOCK ARM

REVERSE LOCK ARM

21

REVERSE LOCK ROD

REVERSE LOCK ROD

22

E-RING D=5

E-RING D=5

23

REVERSE LOCK SPRING

REVERSE LOCK SPRING

24

REVERSE LOCK LINK

REVERSE LOCK LINK

25

ROD SNAP 5-3

ROD SNAP 5-3

26

ROD SNAP 4-2

ROD SNAP 4-2

27

STEERING SHAFT

STEERING SHAFT

28

STUD

STUD

29

BUSHING 24-30-30

BUSHING 24-30-30

30

THRUST PLATE 22-44-2

THRUST PLATE 22-44-2

31

O-RING 3.5-22

O-RING 3.5-22

32

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

33

BOLT

BOLT

34

DAMPER (UPPER)

DAMPER (UPPER)

35

WASHER

WASHER

36

NUT

NUT

37

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

38

MOUNT BRACKET (RIGHT)

MOUNT BRACKET (RIGHT)

39

MOUNT BRACKET (LEFT)

MOUNT BRACKET (LEFT)

40

BOLT

BOLT

41

GROUNG CABLE

GROUNG CABLE

42

GROUNG CABLE

GROUNG CABLE

43

BOLT

BOLT

44

TILT STOPPER ASSY

TILT STOPPER ASSY

45

TILT STOPPER GRIP

TILT STOPPER GRIP

46

BUSHING

BUSHING

47

TILT STOPPER SETTING PLATE

TILT STOPPER SETTING PLATE

48

BOLT

BOLT

49

CLAMP SCREW KIT

CLAMP SCREW KIT

50

CLAMP SCREW ASSY

CLAMP SCREW ASSY

51

CLAMP SCREW

CLAMP SCREW

52

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

53

RIVET 3-22

RIVET 3-22

54

CLAMP SCREW PAD

CLAMP SCREW PAD

55

SHOULDER BOLT

SHOULDER BOLT
