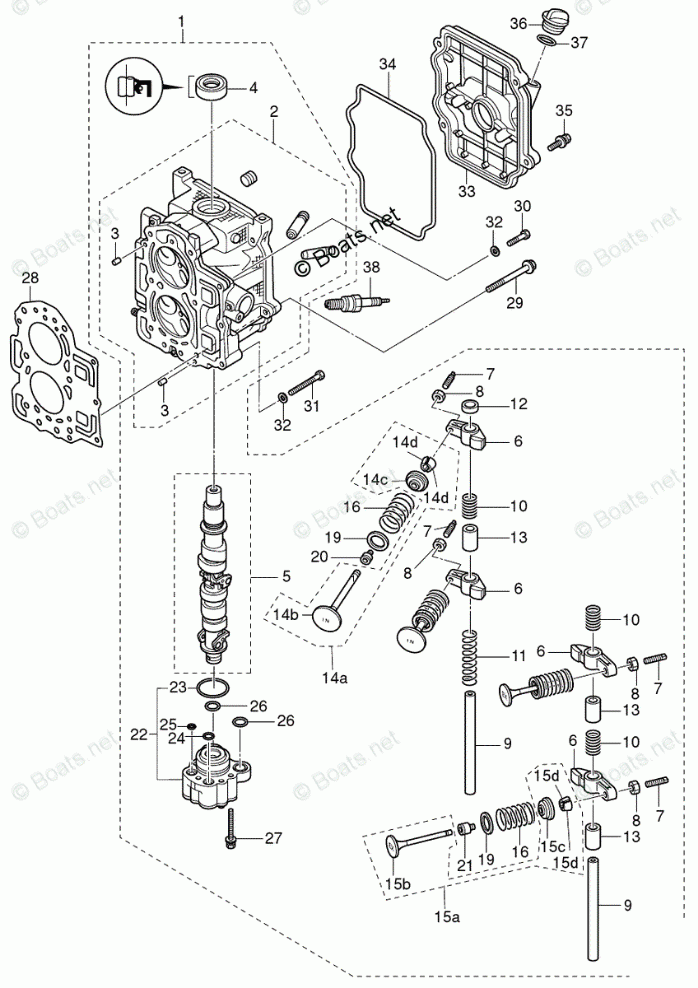

CYLINDER HEAD & OIL PUMP
CYLINDER HEAD & OIL PUMP

CYLINDER HEAD & OIL PUMP

Tohatsu MFS15C

CYLINDER HEAD & OIL PUMP

#

oem код

название

цена

1

CYLINDER HEAD COMPLETE

CYLINDER HEAD COMPLETE

2

CYLINDER HEAD

CYLINDER HEAD

3

DOWEL PIN 6-12

DOWEL PIN 6-12

4

OIL SEAL 18-35-8

OIL SEAL 18-35-8

5

CAMSHAFT ASSY

CAMSHAFT ASSY

6

ROCKER ARM (T=17)

ROCKER ARM (T=17)

7

ADJUSTING SCREW

ADJUSTING SCREW

8

ADJUSTING NUT

ADJUSTING NUT

9

ROCKER ARM SHAFT

ROCKER ARM SHAFT

10

SPRING ROCKER SHAFT (OLD)

SPRING ROCKER SHAFT (OLD)

11

SPRING

SPRING

12

WASHER 13.2-21.7-2 (NEW)

WASHER 13.2-21.7-2 (NEW)

13

COLLAR

COLLAR

14A

INTAKE VALVE KIT

INTAKE VALVE KIT

14B

INTAKE VALVE

INTAKE VALVE

14C

RETAINER

RETAINER

14D

COTTER

COTTER

15A

EXHAUST VALVE KIT

EXHAUST VALVE KIT

15B

EXHAUST VALVE

EXHAUST VALVE

15C

RETAINER

RETAINER

15D

COTTER

COTTER

16

VALVE SPRING

VALVE SPRING

19

VALVE SPRING SEAT

VALVE SPRING SEAT

20

INTAKE VALVE STEM SEAL

INTAKE VALVE STEM SEAL

21

EXHAUST VALVE STEM SEAL

EXHAUST VALVE STEM SEAL

22

OIL PUMP

OIL PUMP

23

OIL PUMP O-RING

OIL PUMP O-RING

24

O-RING 1.5-10.7

O-RING 1.5-10.7

25

O-RING 1.5-8.5

O-RING 1.5-8.5

26

O-RING 1.5-15.5

O-RING 1.5-15.5

27

BOLT

BOLT

28

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

29

BOLT CYLINDER HEAD 8 - 60

BOLT CYLINDER HEAD 8 - 60

30

BOLT

BOLT

31

BOLT

BOLT

32

WASHER

WASHER

33

CYLINDER HEAD COVER

CYLINDER HEAD COVER

34

CYLINDER HEAD COVER GASKET

CYLINDER HEAD COVER GASKET

35

BOLT

BOLT

36

OIL FILLER CAP

OIL FILLER CAP

37

O-RING 3.1-24.4

O-RING 3.1-24.4

38

SPARK PLUG

SPARK PLUG
