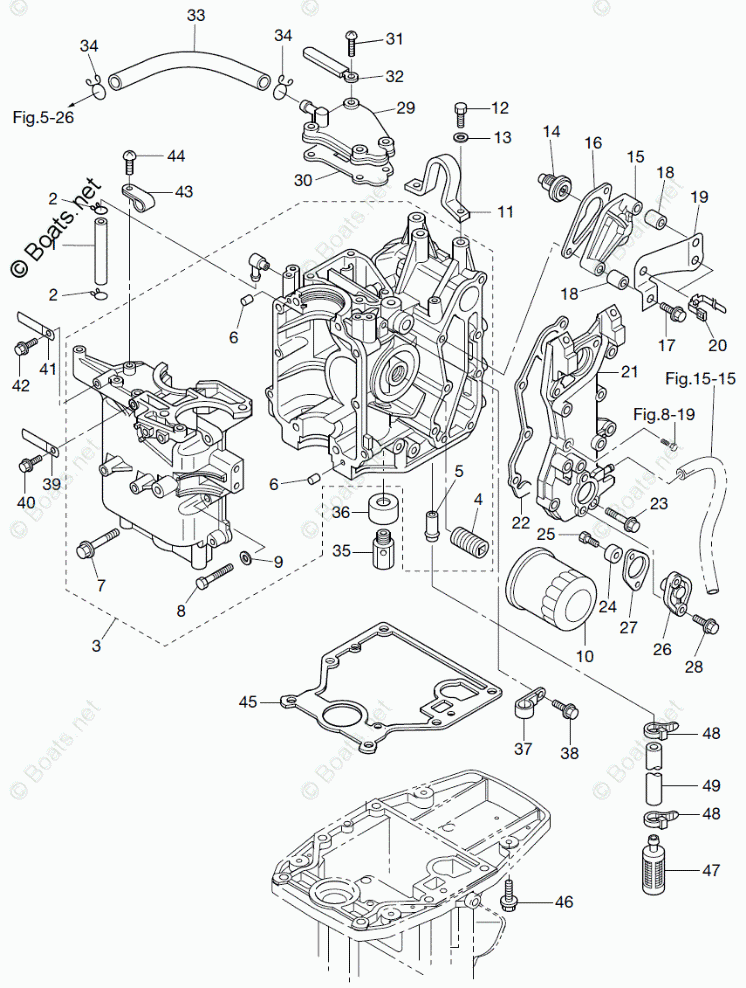

CYLINDER & CRANK CASE
CYLINDER & CRANK CASE

CYLINDER & CRANK CASE

Tohatsu MFS15C

CYLINDER & CRANK CASE

#

oem код

название

цена

1

RUBBER HOSE

RUBBER HOSE

2

CLIP 10

CLIP 10

3

CYL BLOCK & CRANKCASE ASSY

CYL BLOCK & CRANKCASE ASSY

4

BOLT OIL FILTER

BOLT OIL FILTER

5

NIPPLE 10-32

NIPPLE 10-32

6

DOWEL PIN 6-12

DOWEL PIN 6-12

7

BOLT 8-50

BOLT 8-50

8

BOLT

BOLT

9

WASHER

WASHER

10

OIL FILTER

OIL FILTER

11

HANGER

HANGER

12

BOLT

BOLT

13

WASHER

WASHER

14

THERMOSTAT

THERMOSTAT

15

THERMOSTAT CAP

THERMOSTAT CAP

16

THERMOSTAT CAP GASKET

THERMOSTAT CAP GASKET

17

BOLT

BOLT

18

COLLAR 6.2-9-9.55

COLLAR 6.2-9-9.55

19

BRACKET

BRACKET

20

LEAD WIRE BAND 135

LEAD WIRE BAND 135

21

EXHAUST COVER

EXHAUST COVER

22

EXHAUST COVER GASKET

EXHAUST COVER GASKET

23

BOLT

BOLT

24

ANODE

ANODE

25

BOLT

BOLT

26

ANODE CAP

ANODE CAP

27

ANODE CAP GASKET

ANODE CAP GASKET

28

BOLT

BOLT

29

BREATHER CHAMBER COVER

BREATHER CHAMBER COVER

30

BREATHER CHAMBER COVER GASKET

BREATHER CHAMBER COVER GASKET

31

SCREW 6-20 PRE-COATED

SCREW 6-20 PRE-COATED

32

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

33

RUBBER HOSE

RUBBER HOSE

34

CLIP 12

CLIP 12

35

PLUNGER

PLUNGER

36

PLUNGER COVER

PLUNGER COVER

37

CLAMP 6.5-14L

CLAMP 6.5-14L

38

BOLT

BOLT

39

CLAMP 6.5-67P

CLAMP 6.5-67P

40

BOLT

BOLT

41

CLAMP 6.5-120P

CLAMP 6.5-120P

42

BOLT

BOLT

43

CLAMP 6.5-14L

CLAMP 6.5-14L

44

SCREW

SCREW

45

OIL PAN GASKET

OIL PAN GASKET

46

BOLT 8-P1.25

BOLT 8-P1.25

47

OIL STRAINER

OIL STRAINER

48

LEAD WIRE BAND 150

LEAD WIRE BAND 150

49

HOSE

HOSE
