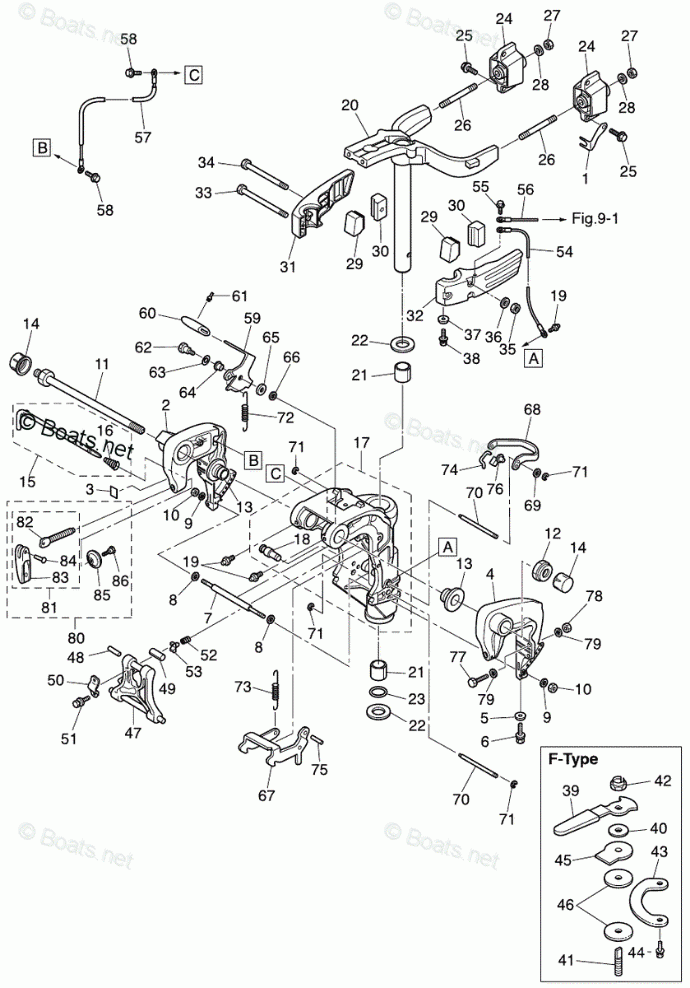

BRACKET (MANUAL)
BRACKET (MANUAL)

BRACKET (MANUAL)

Tohatsu MFS20C

BRACKET (MANUAL)

#

oem код

название

цена

1

WATER PIPE LOCK PLATE

WATER PIPE LOCK PLATE

2

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

3

LABEL CO-PILOT

LABEL CO-PILOT

4

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

5

ANODE

ANODE

6

BOLT

BOLT

7

DISTANCE PIECE

DISTANCE PIECE

8

WASHER

WASHER

9

WASHER

WASHER

10

NUT

NUT

11

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

12

NYLON NUT 7/8

NYLON NUT 7/8

13

BUSHING BRACKET BOLT

BUSHING BRACKET BOLT

14

CAP BRACKET BOLT

CAP BRACKET BOLT

15

THRUST ROD ASSY

THRUST ROD ASSY

16

THRUST ROD SPRING

THRUST ROD SPRING

17

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

18

PIN

PIN

19

GREASE FITTING

GREASE FITTING

20

STEERING SHAFT ASSY

STEERING SHAFT ASSY

21

BUSHING 28-31-35

BUSHING 28-31-35

22

THRUST PLATE 28.5-48-1

THRUST PLATE 28.5-48-1

23

O-RING 3.5-25.7

O-RING 3.5-25.7

24

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

25

BOLT

BOLT

26

STUD BOLT 10-95

STUD BOLT 10-95

27

NYLON NUT

NYLON NUT

28

WASHER

WASHER

29

DAMPER (LOWER)

DAMPER (LOWER)

30

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

31

MOUNT BRACKET (RIGHT)

MOUNT BRACKET (RIGHT)

32

MOUNT BRACKET (LEFT)

MOUNT BRACKET (LEFT)

33

BOLT

BOLT

34

BOLT

BOLT

35

NUT

NUT

36

WASHER 8.1 -16 -1.5

WASHER 8.1 -16 -1.5

37

ANODE

ANODE

38

BOLT

BOLT

39

CO- PILOT HANDLE

CO- PILOT HANDLE

40

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

41

CO-PILOT BOLT

CO-PILOT BOLT

42

NYLON NUT (2T) M8 P1.25

NYLON NUT (2T) M8 P1.25

43

PLATE CO-PILOT

PLATE CO-PILOT

44

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

45

WASHER CO-PILOT

WASHER CO-PILOT

46

CO-PILOT DISC

CO-PILOT DISC

47

TILT STOPPER

TILT STOPPER

48

SPRING PIN 5-40

SPRING PIN 5-40

49

BUSHING 8.2-10-26.5

BUSHING 8.2-10-26.5

50

TILT STOPPER SETTING PLATE

TILT STOPPER SETTING PLATE

51

BOLT

BOLT

52

SPRING FRICTION TILT STOPPER

SPRING FRICTION TILT STOPPER

53

SET PIECE TILT STOPPER

SET PIECE TILT STOPPER

54

GROUND CABLE

GROUND CABLE

55

BOLT

BOLT

56

GROUND CABLE

GROUND CABLE

57

GROUND CABLE

GROUND CABLE

58

BOLT

BOLT

59

REVERSE LOCK LEVER

REVERSE LOCK LEVER

60

REVERSE LOCK LEVER GRIP

REVERSE LOCK LEVER GRIP

61

STOPPER LEVER GRIP

STOPPER LEVER GRIP

62

SHOULDER BOLT 6-8

SHOULDER BOLT 6-8

63

WASHER

WASHER

64

BUSHING 8.1-20

BUSHING 8.1-20

65

WASHER 8.5-18-1.6

WASHER 8.5-18-1.6

66

WASHER 6-16-1.5

WASHER 6-16-1.5

67

REVERSE LOCK

REVERSE LOCK

68

REVERSE LOCK ARM

REVERSE LOCK ARM

69

COLLAR

COLLAR

70

SHAFT REVERSE LOCK B

SHAFT REVERSE LOCK B

71

E-RING D=5

E-RING D=5

72

REVERSE LOCK LEVER SPRING

REVERSE LOCK LEVER SPRING

73

REVERSE LOCK SPRING

REVERSE LOCK SPRING

74

REVERSE LOCK LINK

REVERSE LOCK LINK

75

SPRING PIN 5-35

SPRING PIN 5-35

76

ROD SNAP 3.5-2

ROD SNAP 3.5-2

77

BOLT

BOLT

78

NUT

NUT

79

WASHER

WASHER

80

CLAMP SCREW KIT

CLAMP SCREW KIT

81

CLAMP SCREW ASSY

CLAMP SCREW ASSY

82

CLAMP SCREW

CLAMP SCREW

83

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

84

RIVET 3-22

RIVET 3-22

85

CLAMP SCREW PAD

CLAMP SCREW PAD

86

SHOULDER BOLT

SHOULDER BOLT
