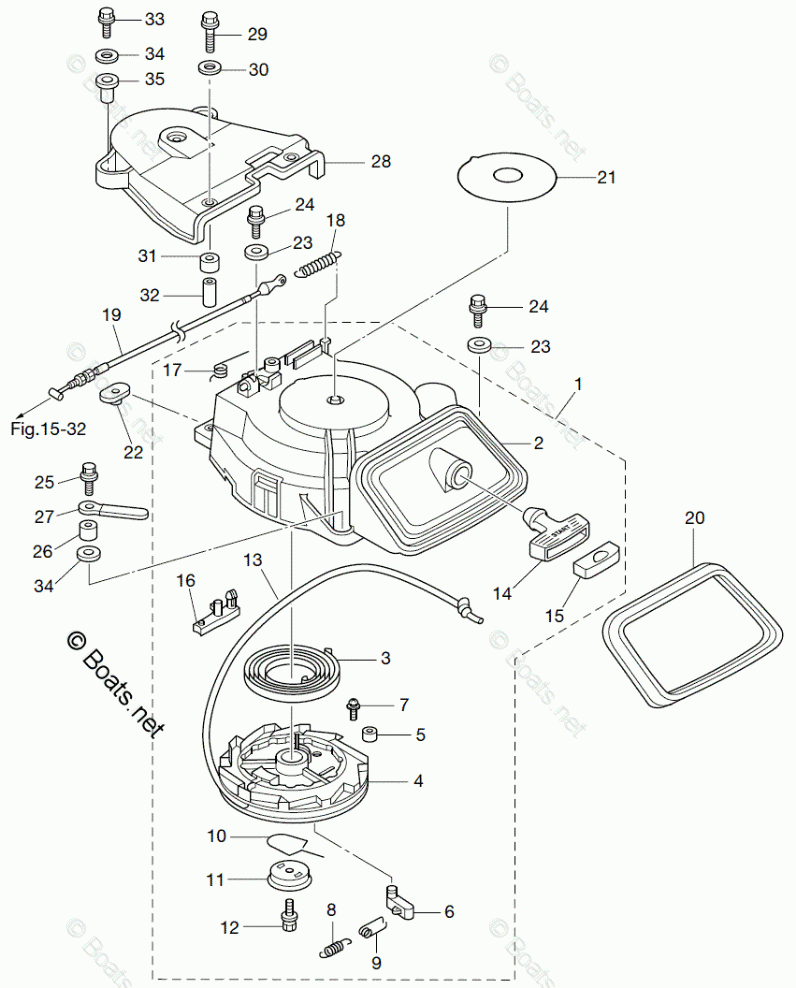

Tohatsu MFS20C

ПУСКОВОЙ МЕХАНИЗМ

#

oem код

название

цена

1

RECOIL STARTER

RECOIL STARTER

2

STARTER CASE

STARTER CASE

3

STARTER SPRING

STARTER SPRING

4

REEL

REEL

5

BUSHING

BUSHING

6

RATCHET

RATCHET

7

TAPPING SCREW

TAPPING SCREW

8

RETURN SPRING

RETURN SPRING

9

RATCHET GUIDE

RATCHET GUIDE

10

FRICTION SPRING

FRICTION SPRING

11

FRICTION PLATE

FRICTION PLATE

12

BOLT STARTER SHAFT

BOLT STARTER SHAFT

13

STARTER ROPE

STARTER ROPE

14

STARTER HANDLE

STARTER HANDLE

15

ROPE ANCHOR

ROPE ANCHOR

16

STARTER LOCK

STARTER LOCK

17

SPRING

SPRING

18

STARTER LOCK CAM SPRING

STARTER LOCK CAM SPRING

19

STARTER LOCK CABLE

STARTER LOCK CABLE

20

STARTER SEAL

STARTER SEAL

21

CAUTION DECAL B

CAUTION DECAL B

22

NUT

NUT

23

WASHER 6-16-1.5

WASHER 6-16-1.5

24

PRE-COATED BOLT 6-20

PRE-COATED BOLT 6-20

25

PRE-COATED BOLT 6-30

PRE-COATED BOLT 6-30

26

COLLAR 6.5-10.5-10

COLLAR 6.5-10.5-10

27

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

28

BELT COVER

BELT COVER

29

BOLT

BOLT

30

WASHER 6-16-1.5

WASHER 6-16-1.5

31

RUBBER MOUNT 9-16-9

RUBBER MOUNT 9-16-9

32

COLLAR 6.2-9-21

COLLAR 6.2-9-21

33

BOLT

BOLT

34

WASHER 6-16-1.5

WASHER 6-16-1.5

35

COLLAR 6.1-14-8.9

COLLAR 6.1-14-8.9
