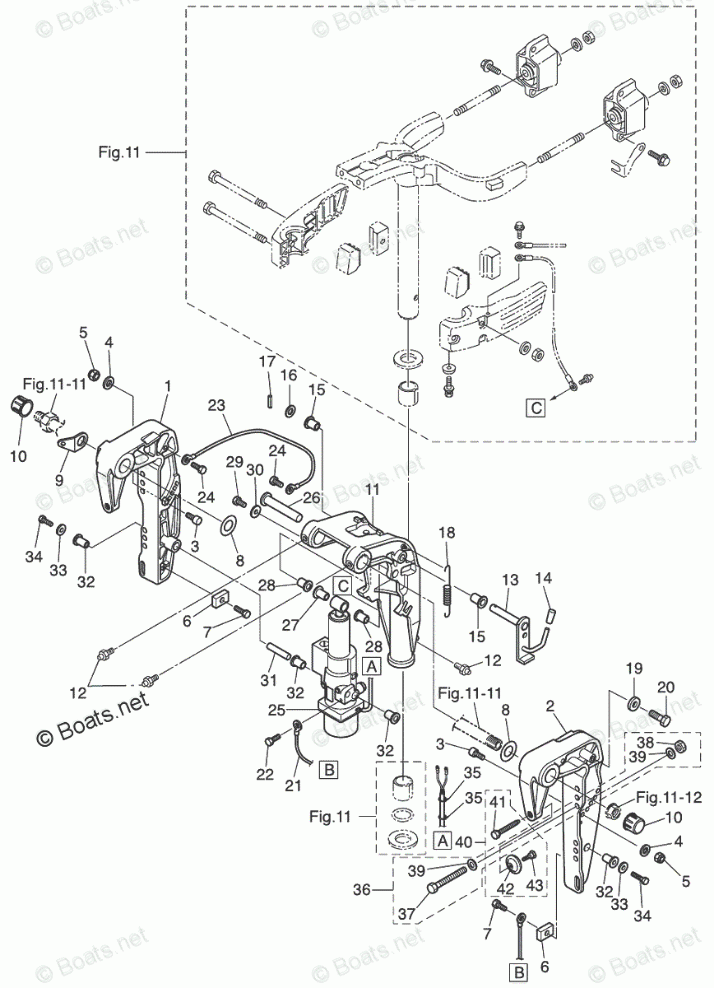

BRACKET (PTT)

Tohatsu MFS20C

BRACKET (PTT)

#

oem код

название

цена

1

CLAMP BRACKET (PTT-RIGHT)

CLAMP BRACKET (PTT-RIGHT)

2

CLAMP BRACKET (PTT-LEFT)

CLAMP BRACKET (PTT-LEFT)

3

TRIM LOCK PIN

TRIM LOCK PIN

4

WASHER 8.1 -16 -1.5

WASHER 8.1 -16 -1.5

5

NYLON NUT (2T) M8 P1.25

NYLON NUT (2T) M8 P1.25

6

ANODE

ANODE

7

BOLT

BOLT

8

WASHER 22-36-1

WASHER 22-36-1

9

PLATE

PLATE

10

CAP BRACKET BOLT

CAP BRACKET BOLT

11

SWIVEL BRACKET (PTT)

SWIVEL BRACKET (PTT)

12

GREASE FITTING

GREASE FITTING

13

TILT STOPPER

TILT STOPPER

14

TILT STOPPER GRIP

TILT STOPPER GRIP

15

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

16

WASHER

WASHER

17

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

18

SPRING TILT STOPPER

SPRING TILT STOPPER

19

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

20

BOLT

BOLT

21

GROUND CABLE

GROUND CABLE

22

BOLT

BOLT

23

GROUND CABLE

GROUND CABLE

24

BOLT

BOLT

25

PT ASSY

PT ASSY

26

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

27

BUSHING 13-16-31

BUSHING 13-16-31

28

BUSHING 13 -17 -19.5

BUSHING 13 -17 -19.5

29

BOLT

BOLT

30

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

31

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

32

BUSHING 13-16-31

BUSHING 13-16-31

33

WASHER 8.5-28-1

WASHER 8.5-28-1

34

BOLT

BOLT

35

LEAD WIRE BAND 203

LEAD WIRE BAND 203

36

RIGGING BOLT SET

RIGGING BOLT SET

37

BOLT

BOLT

38

NUT

NUT

39

WASHER

WASHER

40

CLAMP SCREW KIT

CLAMP SCREW KIT

41

CLAMP SCREW (PTT)

CLAMP SCREW (PTT)

42

CLAMP SCREW PAD

CLAMP SCREW PAD

43

SHOULDER BOLT

SHOULDER BOLT
