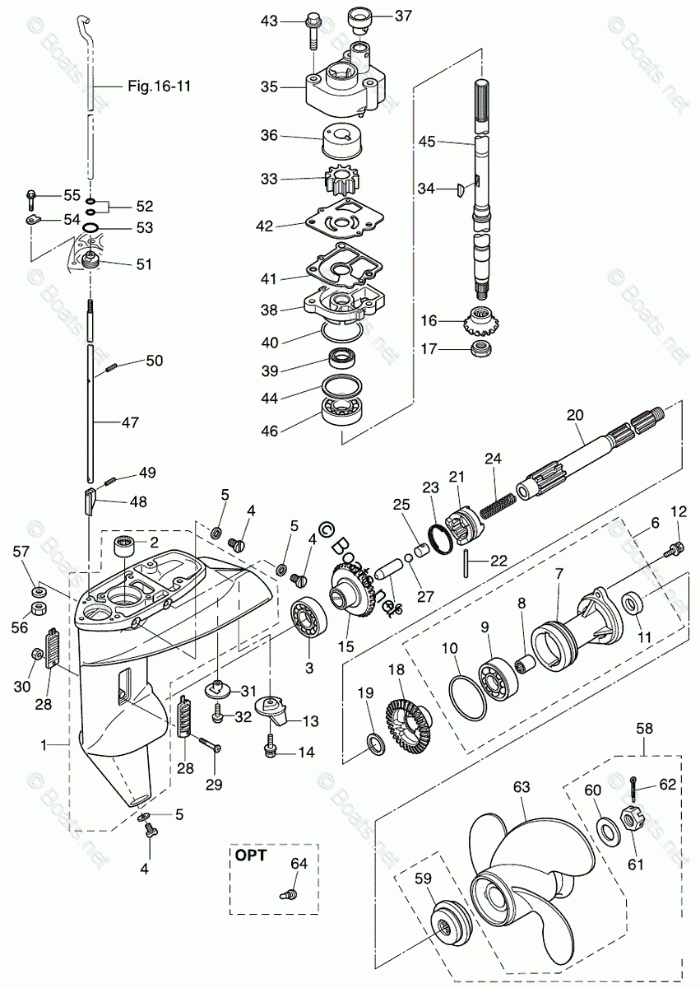

КАРТЕР КОРОБКИ ПЕРЕДАЧ
КАРТЕР КОРОБКИ ПЕРЕДАЧ

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS20C

oem код

название

цена

GEAR CASE ASSY

NEEDLE BEARING

BALL BEARING 6205HS

WATER PLUG

GASKET 8.1-15-1

PROPELLER SHAFT HOUSING ASSY

3BKQ601011

PROPELLER SHAFT HOUSING

362602110

NEEDLE BEARING 17-24-20

BALL BEARING 6205HS

O-RING 2.4-59.6

OIL SEAL 17 - 30 - 9

PRE-COATED BOLT

TRIM TAB

BOLT

BEVEL GEAR A

BEVEL GEAR B

NUT BEVEL GEAR B

BEVEL GEAR C

WASHER 17-22-1.5

PROPELLER SHAFT

CLUTCH

CLUTCH PIN

CLUTCH PIN SNAP

SPRING CLUTCH

CLUTCH SPRING RETAINER

CLUTCH PUSH ROD

STEEL BALL 318

WATER STRAINER

SCREW

NYLON NUT 4P-0.7

WATER STRAINER

SCREW

WATER PUMP IMPELLER

WATER PUMP IMPELLER KEY

350650161

PUMP CASE (UPPER)

350650111

PUMP CASE LINER

350650140

WATER PIPE SEAL (LOWER)

PUMP CASE (LOWER)

OIL SEAL 13.8-26-9.5

O-RING 3.5 - 36

GUIDE PLATE GASKET

WATER PUMP GUIDE PLATE

BOLT

SHIM 35 41.9 0.1

DRIVE SHAFT S

BALL BEARING 7302A

CAM ROD (S)

CLUTCH CAM

SPRING PN 3-12

SPRING PIN

CAM ROD BUSHING

O-RING 2.4 - 5.8

O-RING 3.5 - 36

STOPPER

BOLT

NUT

WASHER 8.1 -16 -1.5

PROPELLER HARDWARE KIT

362642310

PROPELLER THRUST HOLDER

WASHER 12.5-32-2.5

NUT PROPELLER

SPLIT PIN 3 22

PROPELLER ASSY (6)

SUB WATER PIPE PLUG
