INTAKE MANIFOLD & FUEL PUMP Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS20C (2014)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2014
MFS20C
INTAKE MANIFOLD & FUEL PUMP
INTAKE MANIFOLD & FUEL PUMP

INTAKE MANIFOLD & FUEL PUMP

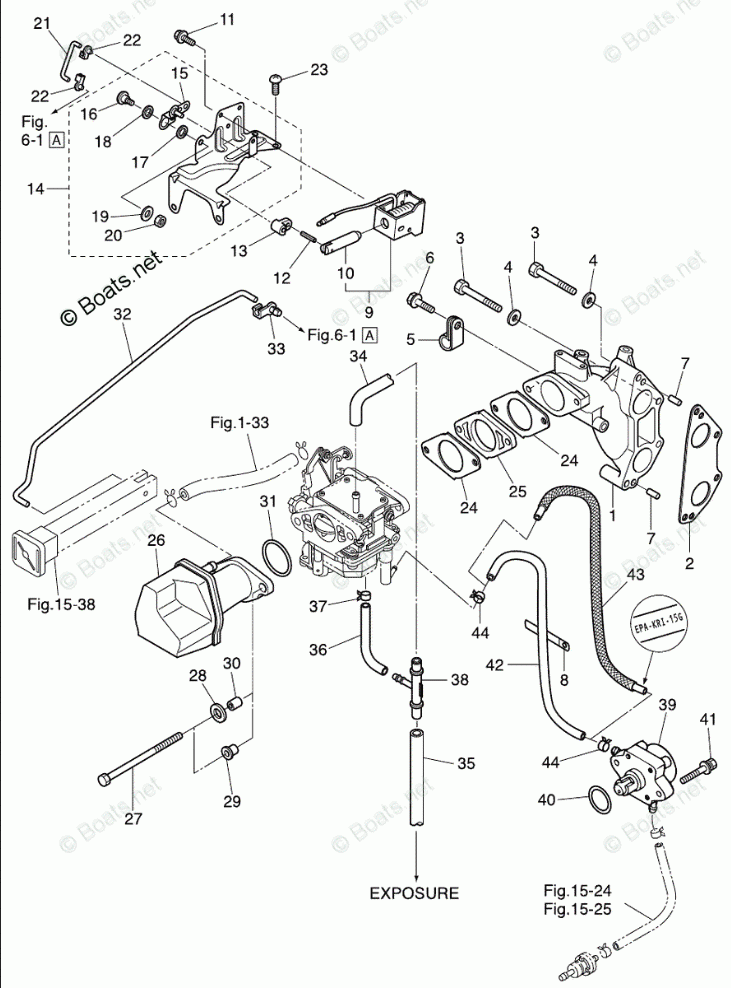

Tohatsu MFS20C

INTAKE MANIFOLD & FUEL PUMP

#

oem код

название

цена

1

INTAKE MANIFOLD

INTAKE MANIFOLD

2

INTAKE MANIFOLD GASKET

INTAKE MANIFOLD GASKET

3

BOLT

BOLT

4

WASHER

WASHER

5

CLAMP 6.5-14L

CLAMP 6.5-14L

6

BOLT

BOLT

7

DOWEL PIN 6-12

DOWEL PIN 6-12

8

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

9

CHOKE SOLENOID

CHOKE SOLENOID

10

PLUNGER

PLUNGER

11

SCREW

SCREW

12

SPRING PIN 3-12

SPRING PIN 3-12

13

CHOKE SOLENOID HOOK

CHOKE SOLENOID HOOK

14

CHOKE SOLENOID BRACKET ASSY

CHOKE SOLENOID BRACKET ASSY

15

CHOKE LEVER

CHOKE LEVER

16

SCREW

SCREW

17

BUSHING 8.1-15-2.9

BUSHING 8.1-15-2.9

18

WASHER 8.1-15-1.3

WASHER 8.1-15-1.3

19

WASHER

WASHER

20

NUT

NUT

21

LINK ROD

LINK ROD

22

ROD SNAP

ROD SNAP

23

SCREW

SCREW

24

CARBURETOR GASKET

CARBURETOR GASKET

25

INSULATOR

INSULATOR

26

INTAKE SILENCER

INTAKE SILENCER

27

BOLT 6 -100

BOLT 6 -100

28

WASHER

WASHER

29

COLLAR 6.1-14-8.9

COLLAR 6.1-14-8.9

30

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

31

SEAL RING 2.4-35

SEAL RING 2.4-35

32

CHOKE LINK ROD

CHOKE LINK ROD

33

ROD SNAP 3.2-2

ROD SNAP 3.2-2

34

BREATHER HOSE

BREATHER HOSE

35

BREATHER HOSE

BREATHER HOSE

36

RUBBER HOSE

RUBBER HOSE

37

CLIP 7

CLIP 7

38

NIPPLE

NIPPLE

39

FUEL PUMP

FUEL PUMP

40

O-RING 3.5-25.7

O-RING 3.5-25.7

41

BOLT

BOLT

42

RUBBER HOSE

RUBBER HOSE

43

FUEL HOSE W/PROTECTOR L=260

FUEL HOSE W/PROTECTOR L=260

44

CLIP 9.5

CLIP 9.5
