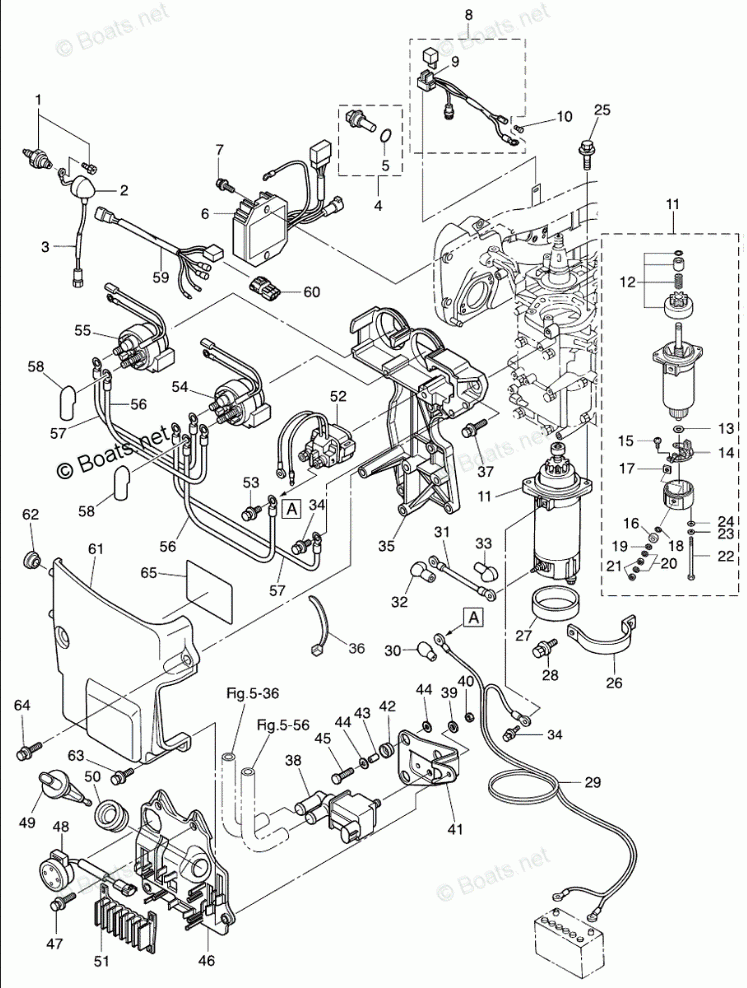

ELECTRIC PARTS

Tohatsu MFS30B

ELECTRIC PARTS

#

oem код

название

цена

1

OIL PRESSURE SWITCH

OIL PRESSURE SWITCH

2

GROMMET OIL PRESSURE SWITCH

GROMMET OIL PRESSURE SWITCH

3

OIL PRESSURE SWITCH LEAD WIRE L=160

OIL PRESSURE SWITCH LEAD WIRE L=160

4

WATER TEMP SENSOR

WATER TEMP SENSOR

5

O-RING 2-10

O-RING 2-10

6

RECTIFIER COMPLETE

RECTIFIER COMPLETE

7

BOLT

BOLT

8

FUSE WIRE ASSY

FUSE WIRE ASSY

9

FUSE (20A)

FUSE (20A)

10

CABLE TERMINAL PLUG

CABLE TERMINAL PLUG

11

STARTER MOTOR

STARTER MOTOR

12

PINION ASSY

PINION ASSY

13

WASHER

WASHER

14

BRUSH HOLDER ASSY

BRUSH HOLDER ASSY

15

SCREW

SCREW

16

BUSHING 1

BUSHING 1

17

BUSHING 2

BUSHING 2

18

O-RING

O-RING

19

WASHER

WASHER

20

SPRING WASHER

SPRING WASHER

21

NUT

NUT

22

BOLT

BOLT

23

SPRING WASHER

SPRING WASHER

24

WASHER

WASHER

25

BOLT

BOLT

26

BAND STARTER MOTOR

BAND STARTER MOTOR

27

RUBBER STARTER MOTOR

RUBBER STARTER MOTOR

28

BOLT

BOLT

29

BATTERY CABLE L=2500

BATTERY CABLE L=2500

30

TERMINAL CAP

TERMINAL CAP

31

STARTER CORD (L=270)

STARTER CORD (L=270)

32

TERMINAL CAP

TERMINAL CAP

33

TERMINAL CAP

TERMINAL CAP

34

BOLT

BOLT

35

BRACKET

BRACKET

36

LEAD WIRD BAND 104

LEAD WIRD BAND 104

37

BOLT

BOLT

38

ISC VALVE

ISC VALVE

39

WASHER

WASHER

40

NUT

NUT

41

PLATE

PLATE

42

RUBBER MOUNT

RUBBER MOUNT

43

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

44

WASHER 6-16-1.5

WASHER 6-16-1.5

45

BOLT

BOLT

46

CORD HOLDER

CORD HOLDER

47

BOLT

BOLT

48

OVERHEAT BUZZER

OVERHEAT BUZZER

49

MAT SENSOR

MAT SENSOR

50

MAT SENSOR GROMMET

MAT SENSOR GROMMET

51

HOLDER

HOLDER

52

STARTER SOLENOID

STARTER SOLENOID

53

BOLT

BOLT

54

PTT SOLENOID SWITCH A

PTT SOLENOID SWITCH A

55

PTT SOLENOID SWITCH B

PTT SOLENOID SWITCH B

56

CORD B SOLENOID SWITCH

CORD B SOLENOID SWITCH

57

CORD B SOLENOID SWITCH

CORD B SOLENOID SWITCH

58

TERMINAL CAP

TERMINAL CAP

59

EXTENSION CORD (PTT)

EXTENSION CORD (PTT)

60

PLUG

PLUG

61

COVER ASSY

COVER ASSY

62

GROMMET LOWER WATER PIPE

GROMMET LOWER WATER PIPE

63

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

64

BOLT

BOLT

65

WIRING DIAGRAM DECAL

WIRING DIAGRAM DECAL
