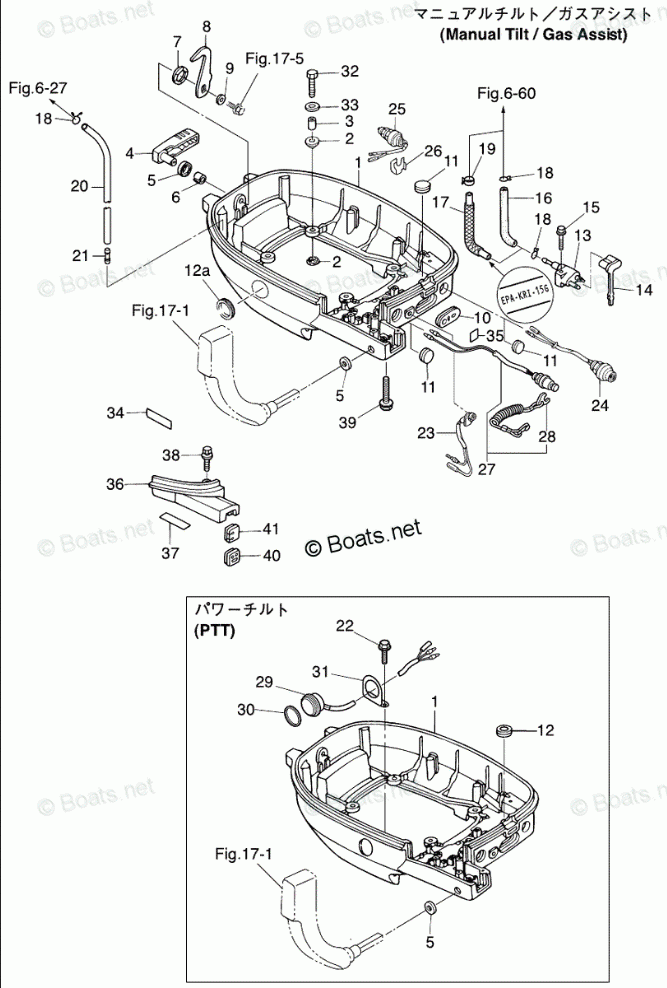

BOTTOM COWL

Tohatsu MFS30B

BOTTOM COWL

#

oem код

название

цена

1

BOTTOM COWL

BOTTOM COWL

2

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

3

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

4

HOOK LEVER

HOOK LEVER

5

SEAL RING

SEAL RING

6

BUSHING 14 -16.5 -17.7

BUSHING 14 -16.5 -17.7

7

WAVE WASHER D=14

WAVE WASHER D=14

8

COVER HOOK

COVER HOOK

9

WASHER 6-16-1.5

WASHER 6-16-1.5

10

GROMMET BATTERY CORD

GROMMET BATTERY CORD

11

GROMMET 17-2.7

GROMMET 17-2.7

12

GROMMET 18-2.5

GROMMET 18-2.5

12A

GROMMET

GROMMET

13

FUEL CONNECTOR ( ENGINE MALE)

FUEL CONNECTOR ( ENGINE MALE)

14

FUEL CONNECTOR PROTECTOR

FUEL CONNECTOR PROTECTOR

15

BOLT

BOLT

16

FUEL PIPE

FUEL PIPE

17

FUEL HOSE W/PROTECTOR L=300

FUEL HOSE W/PROTECTOR L=300

18

CLIP 10

CLIP 10

19

CLIP 9.5

CLIP 9.5

20

HOSE

HOSE

21

WATER NIPPLE

WATER NIPPLE

22

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

23

WARNING LAMP

WARNING LAMP

24

MAIN SWITCH

MAIN SWITCH

25

NEUTRAL SWITCH

NEUTRAL SWITCH

26

NEUTRAL SWITCH ACTUATOR

NEUTRAL SWITCH ACTUATOR

27

STOP SWITCH

STOP SWITCH

28

STOP SWITCH LANYARD

STOP SWITCH LANYARD

29

PTT SWITCH

PTT SWITCH

30

GASKET PTT SWITCH

GASKET PTT SWITCH

31

BRACKET PTT SWITCH

BRACKET PTT SWITCH

32

BOLT

BOLT

33

WASHER 6.5-21-1

WASHER 6.5-21-1

34

STORAGE DECAL

STORAGE DECAL

35

WARNING DECAL

WARNING DECAL

36

SHIFT LEVER BRACKET COVER

SHIFT LEVER BRACKET COVER

37

SHIFT DECAL

SHIFT DECAL

38

BOLT

BOLT

39

BOLT

BOLT

40

GROMMET CONTROL CABLE

GROMMET CONTROL CABLE

41

GROMMET THROTTLE CABLE

GROMMET THROTTLE CABLE
