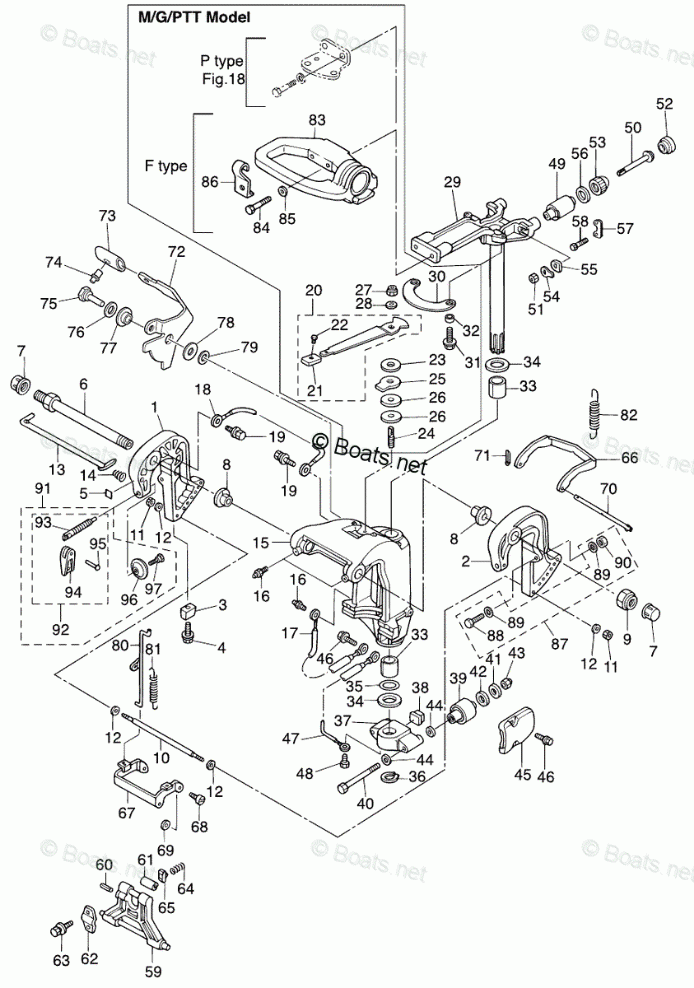

BRACKET (MANUAL TILT)
BRACKET (MANUAL TILT)

BRACKET (MANUAL TILT)

Tohatsu MFS30B

BRACKET (MANUAL TILT)

#

oem код

название

цена

1

CLAMP BRACKET (R)

CLAMP BRACKET (R)

2

CLAMP BRACKET (L)

CLAMP BRACKET (L)

3

ANODE

ANODE

4

BOLT

BOLT

5

LABEL CO-PILOT

LABEL CO-PILOT

6

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

7

CAP BRACKET BOLT

CAP BRACKET BOLT

8

BUSHING BRACKET BOLT

BUSHING BRACKET BOLT

9

NYLON NUT 7/8

NYLON NUT 7/8

10

DISTANCE PIECE

DISTANCE PIECE

11

NUT

NUT

12

WASHER

WASHER

13

THRUST ROD

THRUST ROD

14

SPRING THRUST ROD

SPRING THRUST ROD

15

SWIVEL BRACKET

SWIVEL BRACKET

16

GREASE FITTING

GREASE FITTING

17

GROUND CABLE

GROUND CABLE

18

GROUND CABLE

GROUND CABLE

19

BOLT

BOLT

20

FRICTION LEVER ASSY

FRICTION LEVER ASSY

21

GRIP

GRIP

22

STOPPER LEVER GRIP

STOPPER LEVER GRIP

23

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

24

CO-PILOT BOLT

CO-PILOT BOLT

25

WASHER CO-PILOT

WASHER CO-PILOT

26

CO-PILOT DISC

CO-PILOT DISC

27

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

28

WASHER

WASHER

29

STEERING SHAFT ASSY

STEERING SHAFT ASSY

30

PLATE

PLATE

31

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

32

COLLAR 6.5-10.7-6.5

COLLAR 6.5-10.7-6.5

33

BUSHING 30 - 36 - 41

BUSHING 30 - 36 - 41

34

THRUST PLATE

THRUST PLATE

35

O-RING 3.5 - 29.7

O-RING 3.5 - 29.7

36

C-RING D=28

C-RING D=28

37

MOUNT BRACKET

MOUNT BRACKET

38

DAMPER RUBBER

DAMPER RUBBER

39

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

40

BOLT LOWER MOUNT RUBBER

BOLT LOWER MOUNT RUBBER

41

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

42

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

43

NYLON NUT 12 P1.25

NYLON NUT 12 P1.25

44

WASHER

WASHER

45

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

46

BOLT

BOLT

47

GROUNG CABLE

GROUNG CABLE

48

BOLT

BOLT

49

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

50

BOLT MOUNT RUBBER

BOLT MOUNT RUBBER

51

NUT

NUT

52

UPPER DAMPER RUBBER A

UPPER DAMPER RUBBER A

53

UPPER DAMPER RUBBER B

UPPER DAMPER RUBBER B

54

LOCK PLATE MOUNT RUBBER

LOCK PLATE MOUNT RUBBER

55

WASHER

WASHER

56

UPPER LOCK PLATE

UPPER LOCK PLATE

57

RETAINER MOUNT RUBBER

RETAINER MOUNT RUBBER

58

BOLT

BOLT

59

TILT STOPPER

TILT STOPPER

60

SPRING PIN 6 - 40

SPRING PIN 6 - 40

61

BUSHING 10.2 -12 - 29.5

BUSHING 10.2 -12 - 29.5

62

SETTING PLATE

SETTING PLATE

63

BOLT

BOLT

64

SPRING FRICTION TILT STOPPER

SPRING FRICTION TILT STOPPER

65

SET PIECE TILT STOPPER

SET PIECE TILT STOPPER

66

REVERSE LOCK

REVERSE LOCK

67

ARM REVERSE LOCK

ARM REVERSE LOCK

68

SHAFT REVERSE LOCK ARM

SHAFT REVERSE LOCK ARM

69

WASHER 6-16-1.5

WASHER 6-16-1.5

70

ROD REVERSE LOCK

ROD REVERSE LOCK

71

SPLIT PIN 2-12

SPLIT PIN 2-12

72

REVERSE LOCK LEVER

REVERSE LOCK LEVER

73

REVERSE LOCK LEVER GRIP

REVERSE LOCK LEVER GRIP

74

STOPPER LEVER GRIP

STOPPER LEVER GRIP

75

SHOULDER BOLT 6-8

SHOULDER BOLT 6-8

76

WASHER

WASHER

77

BUSHING 8.1-20

BUSHING 8.1-20

78

WASHER 8.5-18-1.6

WASHER 8.5-18-1.6

79

WASHER 6-16-1.5

WASHER 6-16-1.5

80

LINK REVERSE LOCK

LINK REVERSE LOCK

81

SPRING REVERSE LOCK LEVER

SPRING REVERSE LOCK LEVER

82

SPRINGL REVERSE LOCK

SPRINGL REVERSE LOCK

83

STEERING BRACKET

STEERING BRACKET

84

BOLT 10-80

BOLT 10-80

85

WASHER

WASHER

86

CLAMP THROTTLE CABLE

CLAMP THROTTLE CABLE

87

RIGGING BOLT SET

RIGGING BOLT SET

88

BOLT

BOLT

89

WASHER

WASHER

90

NUT

NUT

91

CLAMP SCREW KIT

CLAMP SCREW KIT

92

CLAMP SCREW ASSY

CLAMP SCREW ASSY

93

CLAMP SCREW

CLAMP SCREW

94

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

95

RIVET 3-22

RIVET 3-22

96

CLAMP SCREW PAD

CLAMP SCREW PAD

97

SHOULDER BOLT

SHOULDER BOLT
