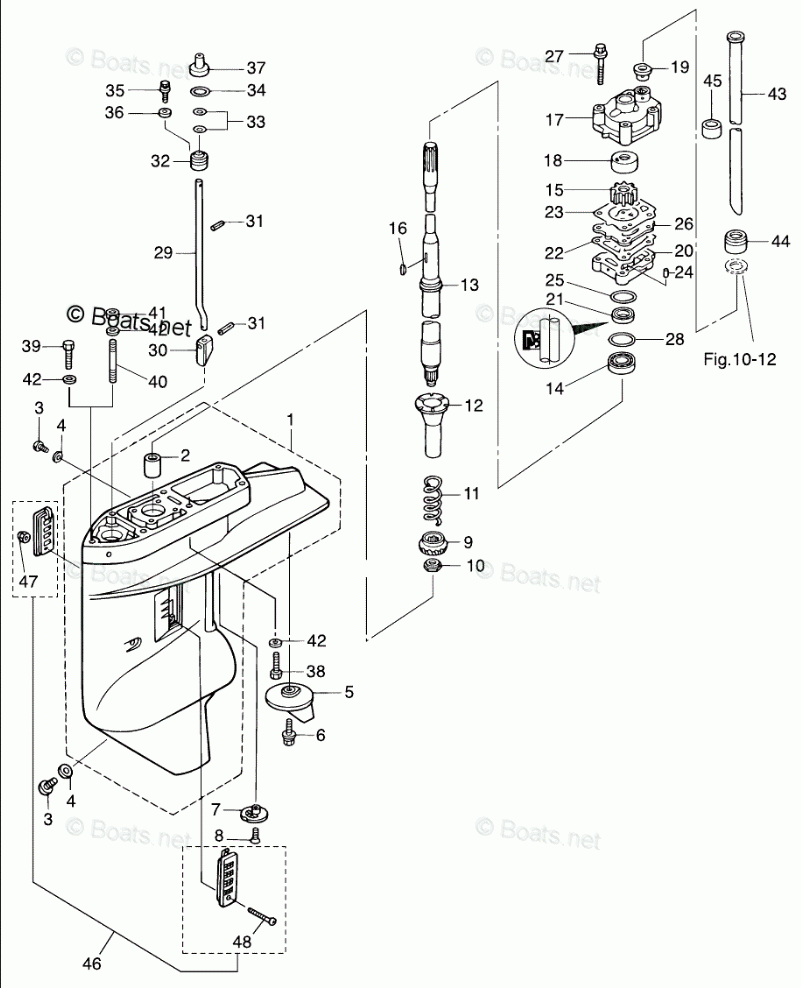

GEAR CASE, DRIVE SHAFT
GEAR CASE, DRIVE SHAFT

GEAR CASE, DRIVE SHAFT

Tohatsu MFS30B

GEAR CASE, DRIVE SHAFT

#

oem код

название

цена

1

GEAR CASE ASSY

GEAR CASE ASSY

2

ROLLER BEARING 20-27-30

ROLLER BEARING 20-27-30

3

WATER PLUG

WATER PLUG

4

GASKET 8.1-15-1

GASKET 8.1-15-1

5

TRIM TAB

TRIM TAB

6

BOLT

BOLT

7

WATER STRAINER

WATER STRAINER

8

SCREW

SCREW

9

BEVEL GEAR B

BEVEL GEAR B

10

NUT BEVEL GEAR B

NUT BEVEL GEAR B

11

SPRING DRIVE SHAFT

SPRING DRIVE SHAFT

12

PIPE DRIVE SHAFT

PIPE DRIVE SHAFT

13

DRIVE SHAFT S

DRIVE SHAFT S

14

BEARING 32004

BEARING 32004

15

IMPELLER WATER PUMP

IMPELLER WATER PUMP

16

KEY PUMP IMPELLER

KEY PUMP IMPELLER

17

PUMP CASE UPPER (WHITE)

PUMP CASE UPPER (WHITE)

18

LINER PUMP CASE

LINER PUMP CASE

19

SEAL RUBBER LOWER WATER PIPE

SEAL RUBBER LOWER WATER PIPE

20

PUMP CASE LOWER

PUMP CASE LOWER

21

OIL SEAL 17 - 30 - 9

OIL SEAL 17 - 30 - 9

22

GASKET GUIDE PLATE

GASKET GUIDE PLATE

23

GASKET PUMP CASE

GASKET PUMP CASE

24

KNOCK 4 -10

KNOCK 4 -10

25

O-RING 3.5 - 36

O-RING 3.5 - 36

26

GUIDE PLATE WATER PUMP

GUIDE PLATE WATER PUMP

27

BOLT

BOLT

28

SHIM 35 41.9 0.1

SHIM 35 41.9 0.1

29

CAM ROD S

CAM ROD S

30

CLUTCH CAM

CLUTCH CAM

31

SPRING PN 3-12

SPRING PN 3-12

32

BUSHING CAM ROD

BUSHING CAM ROD

33

O-RING 2.4 - 5.8

O-RING 2.4 - 5.8

34

O-RING 3.5 - 21.7

O-RING 3.5 - 21.7

35

BOLT

BOLT

36

WASHER 6-16-1.5

WASHER 6-16-1.5

37

HOLDER CAM ROD

HOLDER CAM ROD

38

BOLT

BOLT

39

BOLT

BOLT

40

STUD

STUD

41

NUT

NUT

42

WASHER

WASHER

43

WATER PIPE S

WATER PIPE S

44

SEAL RUBBER UPPER WATER PIPE

SEAL RUBBER UPPER WATER PIPE

45

RUBBER PIPE

RUBBER PIPE

46

WATER STRAINER SET

WATER STRAINER SET

47

NYLON NUT 4P-0.7

NYLON NUT 4P-0.7

48

SCREW

SCREW
