TILLER HANDLE (MULTI-FUNCTION)
TILLER HANDLE (MULTI-FUNCTION)

TILLER HANDLE (MULTI-FUNCTION)

Tohatsu MFS30B

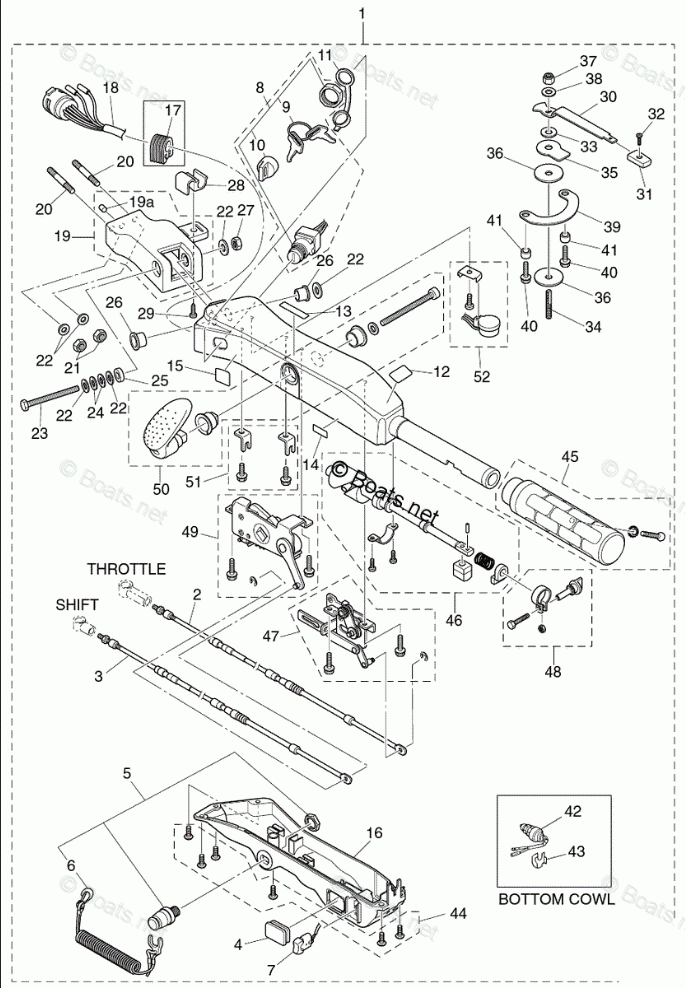

TILLER HANDLE (MULTI-FUNCTION)

#

oem код

название

цена

1

TILLER HANDLE KIT

TILLER HANDLE KIT

2

THROTTLE WIRE

THROTTLE WIRE

3

SHIFT CABLE

SHIFT CABLE

4

GROMMET

GROMMET

5

STOP SWITCH

STOP SWITCH

6

STOP SWITCH LANYARD

STOP SWITCH LANYARD

7

PTT SWITCH ASSY

PTT SWITCH ASSY

8

MAIN SWITCH ASSY

MAIN SWITCH ASSY

9

MAIN SWITCH KEY

MAIN SWITCH KEY

10

MAIN SWITCH KEY COVERING CAP

MAIN SWITCH KEY COVERING CAP

11

MAIN SWITCH CAP

MAIN SWITCH CAP

12

THROTTLE DECAL

THROTTLE DECAL

13

SHIFT DECAL

SHIFT DECAL

14

STOP SWITCH DECAL

STOP SWITCH DECAL

15

INSTRUCTION DECAL

INSTRUCTION DECAL

16

TILLER HANDLE COVER

TILLER HANDLE COVER

17

GROMMET

GROMMET

18

CORD ASSY

CORD ASSY

19A

DOWEL PIN 8-16

DOWEL PIN 8-16

19

STEERING BRACKET ASSY

STEERING BRACKET ASSY

20

STUD M 10-40

STUD M 10-40

21

NYLON NUT

NYLON NUT

22

WASHER

WASHER

23

BOLT 10-80 P1.25

BOLT 10-80 P1.25

24

CONICAL SPRING WASHER 10.5-21-2.3

CONICAL SPRING WASHER 10.5-21-2.3

25

SPACER 10.5-23-9

SPACER 10.5-23-9

26

BUSHING 10.5-12.7-13.5

BUSHING 10.5-12.7-13.5

27

LOCK NUT 10-P1.25

LOCK NUT 10-P1.25

28

CORD HOLDER

CORD HOLDER

29

TAPPING SCREW 6-16

TAPPING SCREW 6-16

30

FRICTION LEVER

FRICTION LEVER

31

GRIP

GRIP

32

STOPPER LEVER GRIP

STOPPER LEVER GRIP

33

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

34

CO-PILOT BOLT

CO-PILOT BOLT

35

WASHER CO-PILOT

WASHER CO-PILOT

36

CO-PILOT DISC

CO-PILOT DISC

37

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

38

WASHER

WASHER

39

PLATE

PLATE

40

BOLT

BOLT

41

COLLAR 6.5-10.7-6.5

COLLAR 6.5-10.7-6.5

42

NEUTRAL SWITCH

NEUTRAL SWITCH

43

NEUTRAL SWITCH ACTUATOR

NEUTRAL SWITCH ACTUATOR

44

SCREW SET

SCREW SET

45

GRIP PARTS KIT

GRIP PARTS KIT

46

THROTTLE SHAFT KIT

THROTTLE SHAFT KIT

47

THROTTLE LINK ASSY

THROTTLE LINK ASSY

48

THROTTLE FRICTION ASSY

THROTTLE FRICTION ASSY

49

SHIFT UNIT ASSY

SHIFT UNIT ASSY

50

SHIFT LEVER KIT

SHIFT LEVER KIT

51

CABLE BRACKET KIT

CABLE BRACKET KIT

52

BUZZER KIT

BUZZER KIT
