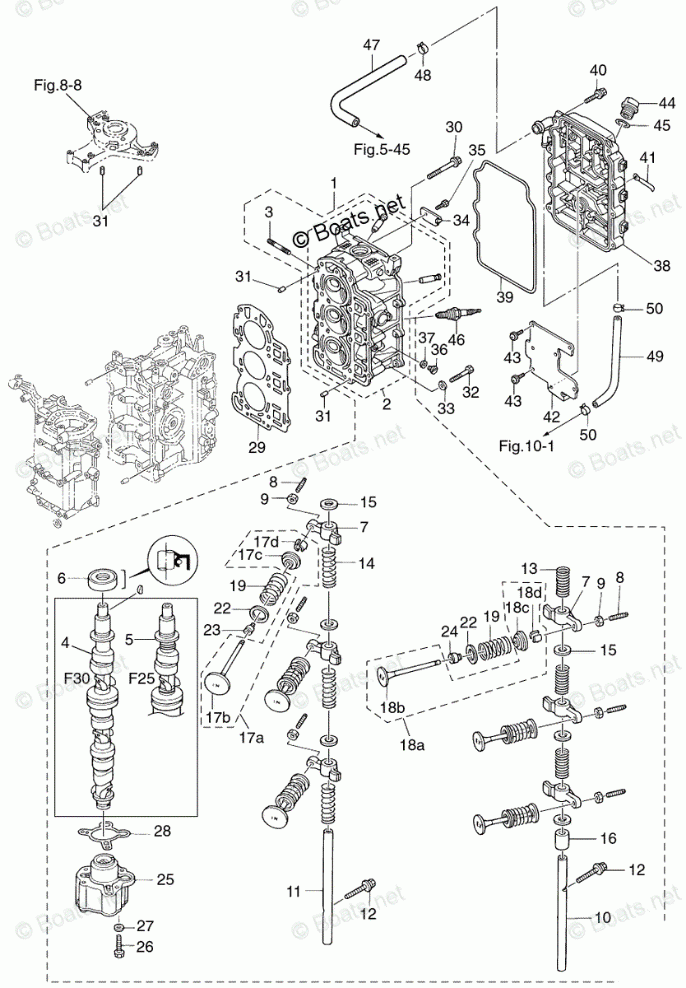

CYLINDER HEAD & OIL PUMP

Tohatsu MFS30B
Tohatsu
#oem кодцена
1
3AEB010000
CYLINDER HEAD COMPLETE
2
3ACB010011
CYLINDER HEAD ASSY
3
9153F40635
STUD
4
3AC070101
CAMSHAFT ASSY
5
3AD070101
CAMSHAFT ASSY
6
3H8070250
OIL SEAL 18-35-8
7
3AE072350
ROCKER ARM (T=17)
8
3R0072380
ADJUSTING SCREW
9
3H8072370
ADJUSTING NUT
10
3AE072200
ROCKER ARM SHAFT
11
3AE072260
ROCKER ARM SHAFT
12
9101245635
BOLT
13
3H8072250
SPRING ROCKER SHAFT (OLD)
14
3H8072290
SPRING
15
3R3072270
WASHER 13.2-21.7-2 (NEW)
16
3H8072390
COLLAR
17A
3AE078950
INTAKE VALVE KIT
17B
3AE079010
INTAKE VALVE
17C
3AE079210
RETAINER
17D
3AE079230
COTTER
18A
3AE078960
EXHAUST VALVE KIT
18B
3AE079020
EXHAUST VALVE
18C
3AE079210
RETAINER
18D
3AE079230
COTTER
19
3AE072030
VALVE SPRING
22
3H6072050
VALVE SPRING SEAT
23
3R3072040
INTAKE VALVE STEM SEAL
24
3R3072060
EXHAUST VALVE STEM SEAL
25
3AE076000
OIL PUMP ASSY
26
9101F40645
BOLT
27
9401E30600
WASHER
28
3R0076390
O-RING OIL PUMP OUTER
29
3AD010050
CYLINDER HEAD GASKET
30
3H8010130
BOLT CYLINDER HEAD 8 - 60
31
345011110
DOWEL PIN 6-12
32
9161F40653
BOLT
33
9401E30600
WASHER
34
3R0010940
PLATE CYLINDER HEAD
35
9101210612
BOLT
36
332600052
WATER PLUG
37
332600060
GASKET 8.1-15-1
38
3ACB010200
CYLINDER HEAD COVER ASSY
39
3R0010240
GASKET HEAD COVER
40
9101F45630
BOLT
41
3T4069721
CLAMP 6.5-87P
42
3R0074310
PLATE BREATHER
43
9215215508
SCREW
44
3R0710151
OIL FILLER CAP
45
3R0074220
O-RING 3.1-24.4
46
970111103
SPARK PLUG
47
3AC074350
BREATHER HOSE
48
3R0077371
CLIP 15.5
49
98AM120290
RUBBER PIPE
50
3R0077371
CLIP 15.5
