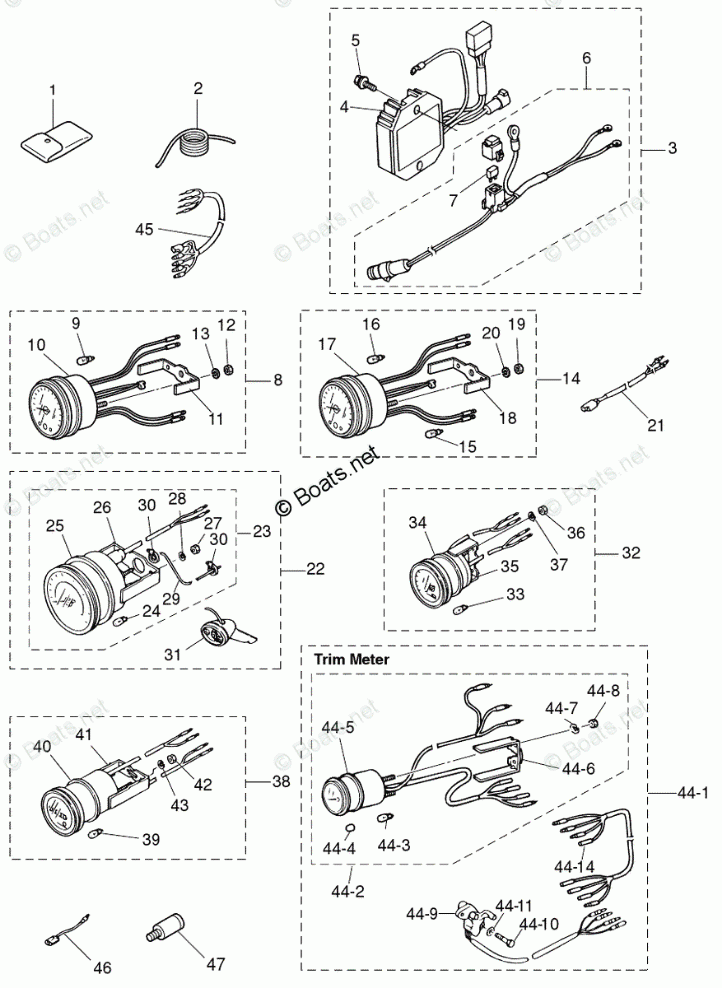

OPTIONAL PARTS & ACCESSORIES (1)

Tohatsu MFS30B
Tohatsu
#oem кодцена
1
3BJ721000
TOOL
2
3B7722010
ROPE
3
3AC761602
RECTIFIER KIT
4
3AC760652
RECTIFIER COMPLETE
5
9101035625
BOLT
6
3AC761610
EXTENSION CORD L=3000
7
3T5762470
FUSE (20A)
8
3AC726400
TACHOMETER ASSY (BLACK)
9
3B7726590
METER BULB 12V-1.7W
10
3B7726560
METER DAMPER
11
3B7726610
FITTING PLATE
12
9301030500
NUT
13
9413030500
SPRING WASHER
14
3AC726400
TACHOMETER ASSY (BLACK)
15
3B7726580
OIL BULB 12V-1.7W
16
3B7726590
METER BULB 12V-1.7W
17
3B7726560
METER DAMPER
18
3B7726610
FITTING PLATE
19
9301030500
NUT
20
9413030500
SPRING WASHER
21
361725390
TACHOMETER LEAD CABLE
22
3GF726720
SPEEDOMETER KIT (60MPH)
23
3GF726720
SPEEDOMETER KIT (60MPH)
24
3B7726590
METER BULB 12V-1.7W
25
3B7726560
METER DAMPER
26
3B7726610
FITTING PLATE
27
9302030500
NUT
28
9413030500
SPRING WASHER
29
3B7726500
SPEEDOMETER TUBE
30
3B7726510
SPEEDOMETER BAND
31
3B7726430
SPEEDOMETER SENDER
32
3GF725290
VOLTMETER ASSY
33
3B7726570
METER BULB 12V-1.7W
34
3B7726550
METER DAMPER
35
3B7726620
FITTING PLATE
36
9302030400
NUT
37
9413030400
SPRING WASHER
38
3GF725240
HOUR METER ASSY
39
3B7726570
METER BULB 12V-1.7W
40
3B7726550
METER DAMPER
41
3B7726640
FITTING PLATE
42
9302030400
NUT
43
9413030400
SPRING WASHER
44-3
3T1726590
METER BULB 12V-1.7W
44-6
3T1726650
FITTING PLATE
44-11
3C8663080
WASHER 6 -16 -1.5
44-7
9413030400
SPRING WASHER
44-1
3GF725710
TRIM METER KIT
44-5
3B7726550
METER DAMPER
44-8
9302030400
NUT
44-2
3T1725710
TRIM METER
44-14
3T1725730
TRIM SENSOR EXTENSION CORD
44-10
9101030620
BOLT
44-9
3Z4725740
TRIM SENSOR
44-4
3T1726530
METER BULB CAP
45
3R0725371
LEAD WIRE METER
46
353725470
ASSIST CORD (BLUE)
47
336600070
FLUSHING ATTACHMENT
