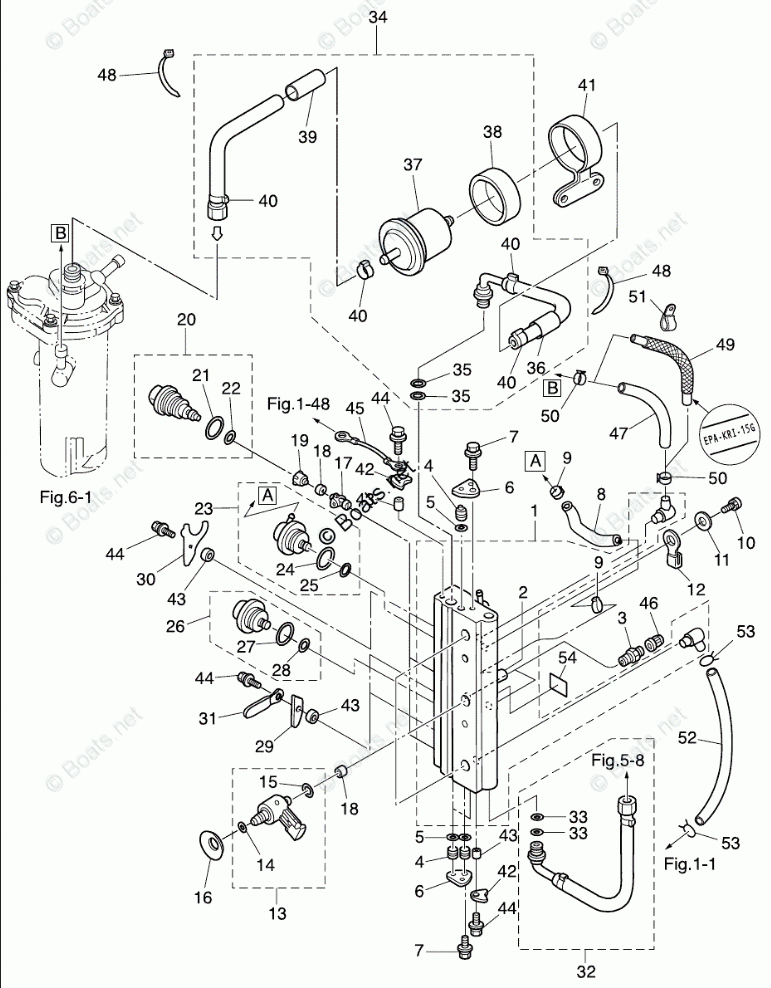

AIR RAIL

Tohatsu MD40B2
Tohatsu
#oem кодцена
1
3T5100801
AIR RAIL
2
3T5101660
L-NIPPLE
3
3T5100980
VALVE
4
3T5101670
PLUG 10.5
5
3T5101641
O-RING 1.9-6.8
6
3T5101650
PLUG STOPPER
7
9101036612
BOLT
8
98AY45105
HOSE
9
3T5100910
CLAMP 29/64
10
9101030865
BOLT
11
9401030800
WASHER
12
3T5069721
CLAMP 8.5-70P
13
3GF103100
AIR INJECTOR COMPLETE
14
3T5103170
O-RING 5-52 ( 1-10)
15
3Y9103111
O-RING 2.4-9.6
16
3Y9103120
AIR INJECTOR DISC SPRING
17
3T5103140
FUEL INJECTOR INSERT
18
3T5103160
COMPRESSION SEAL
19
3T5103150
FUEL INJECTOR ADAPTER
20
3T5103000
FUEL INJECTOR
21
3T5103040
O-RING 2.8-20.2
22
3T5103030
O-RING 3.5-7.5
23
3T5101480
FUEL REGULATOR
24
3T5100950
O-RING 2.5-20
25
3T5100940
O-RING 2.5-5
26
3GF100900
AIR REGULATOR ASSY
27
3T5100950
O-RING 2.5-20
28
3T5100940
O-RING 2.5-5
29
3T5103020
FUEL INJECTOR HOLDING PLATE
30
3Y9103020
FUEL INJECTOR HOLDING PLATE
31
309069720
CLAMP 6.5-47.5P
32
3T5100880
AIR HOSE
33
3T5101620
O-RING 1.9-9.8
34
3GF100890
FUEL HOSE ASSY
35
3T5101620
O-RING 1.9-9.8
36
3Z4061570
PROTECTOR 18-135
37
3T5B101430
FUEL FILTER
38
3T5101450
FUEL FILTER RUBBER MOUNT
39
3U1061570
PROTECT TUBE
40
3T5100860
CLAMP 21/32
41
3Z5101440
FUEL FILTER BAND
42
3T5101690
NIPPLE HOLDING PLATE
43
3T5101530
COLLAR 6.7-12.7-3
44
9101036616
BOLT
45
3A3623961
GROUNG CABLE
46
3T5100990
VALVE CAP
47
98AB50530
HOSE
48
3Z0843980
LEAD WIRE BAND 203
49
3GJ021651
FUEL HOSE W/PROTECTOR
50
3AB351430
CLIP 9.5
51
345069150
CLAMP 6.5-14L
52
98AB50280
FUEL PIPE A
53
338022150
CLIP 10
54
3T5721960
AIR RAIL DECAL
