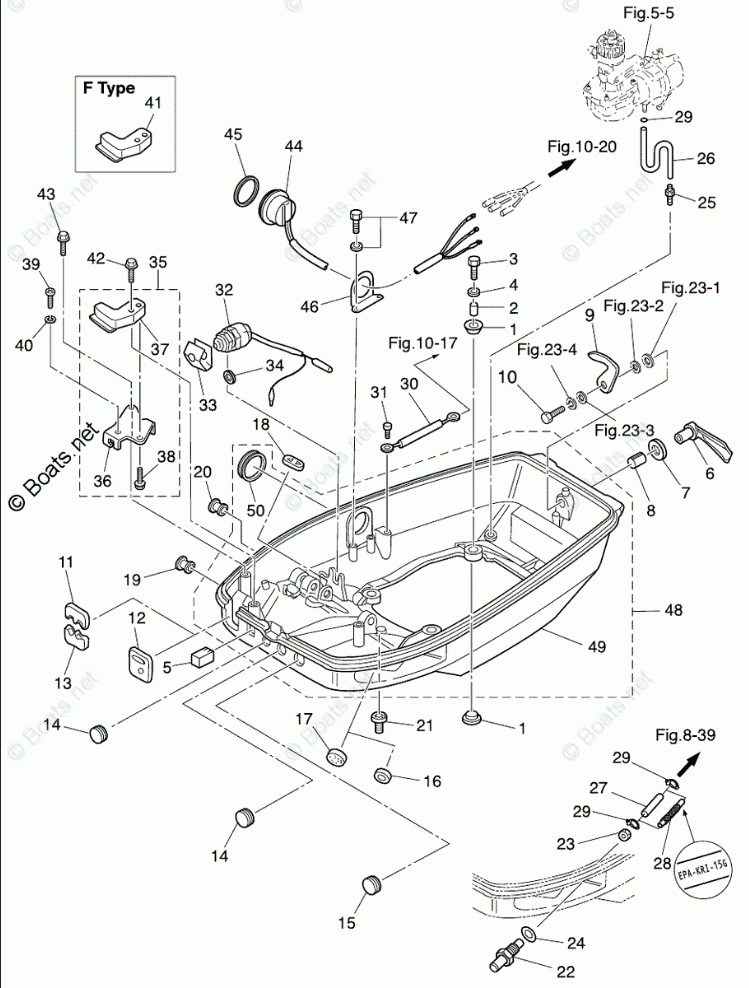

BOTTOM COWL

Tohatsu MD40B2

BOTTOM COWL

#

oem код

название

цена

1

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

2

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

3

BOLT

BOLT

4

WASHER 6.5-21-1

WASHER 6.5-21-1

5

PLUG

PLUG

6

HOOK LEVER

HOOK LEVER

7

SEAL RING

SEAL RING

8

BUSHING

BUSHING

9

COVER HOOK

COVER HOOK

10

BOLT

BOLT

11

REMOTE CONTROL CABLE GROMMET

REMOTE CONTROL CABLE GROMMET

12

BATTERY CABLE GROMMET

BATTERY CABLE GROMMET

13

CORD GROMMET

CORD GROMMET

14

GROMMET 17-2.7

GROMMET 17-2.7

15

MAIN SWITCH GROMMET

MAIN SWITCH GROMMET

16

GROMMET 18-2.5

GROMMET 18-2.5

17

GROMMET 17-2.7

GROMMET 17-2.7

18

THROTTLE CABLE GROMMET

THROTTLE CABLE GROMMET

19

GROMMET

GROMMET

20

PLUG

PLUG

21

GROMMET 17 - 3

GROMMET 17 - 3

22

FUEL CONNECTOR (ENGINE MALE)

FUEL CONNECTOR (ENGINE MALE)

23

NUT 10-P 1.25

NUT 10-P 1.25

24

GASKET 10.2-16-0.5

GASKET 10.2-16-0.5

25

WATER NIPPLE

WATER NIPPLE

26

RUBBER HOSE

RUBBER HOSE

27

RUBBER HOSE

RUBBER HOSE

28

FUEL HOSE W/PROTECTOR L=260

FUEL HOSE W/PROTECTOR L=260

29

CLIP 10

CLIP 10

30

GROUND CABLE

GROUND CABLE

31

BOLT

BOLT

32

NEUTRAL SWITCH

NEUTRAL SWITCH

33

NEUTRAL SWITCH ACTUATOR

NEUTRAL SWITCH ACTUATOR

34

WASHER 12.5-24-1

WASHER 12.5-24-1

35

CABLE CLIP BRACKET ASSY

CABLE CLIP BRACKET ASSY

36

CLUTCH CABLE CLIP BRACKET

CLUTCH CABLE CLIP BRACKET

37

CLAMP

CLAMP

38

BOLT

BOLT

39

SCREW 4-20 P0.5

SCREW 4-20 P0.5

40

SPRING WASHER

SPRING WASHER

41

CLAMP

CLAMP

42

BOLT

BOLT

43

BOLT

BOLT

44

PTT SWITCH ASSY

PTT SWITCH ASSY

45

GASKET PTT SWITCH

GASKET PTT SWITCH

46

PTT SWITCH ASSY BRACKET

PTT SWITCH ASSY BRACKET

47

BOLT

BOLT

48

BOTTOM COWL W/GROMMET

BOTTOM COWL W/GROMMET

49

BOTTOM COWL

BOTTOM COWL

50

GROMMET

GROMMET
