THROTTLE Каталог оригинальных запчастей для лодочных моторов Tohatsu MD40B2 (2014)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

THROTTLE

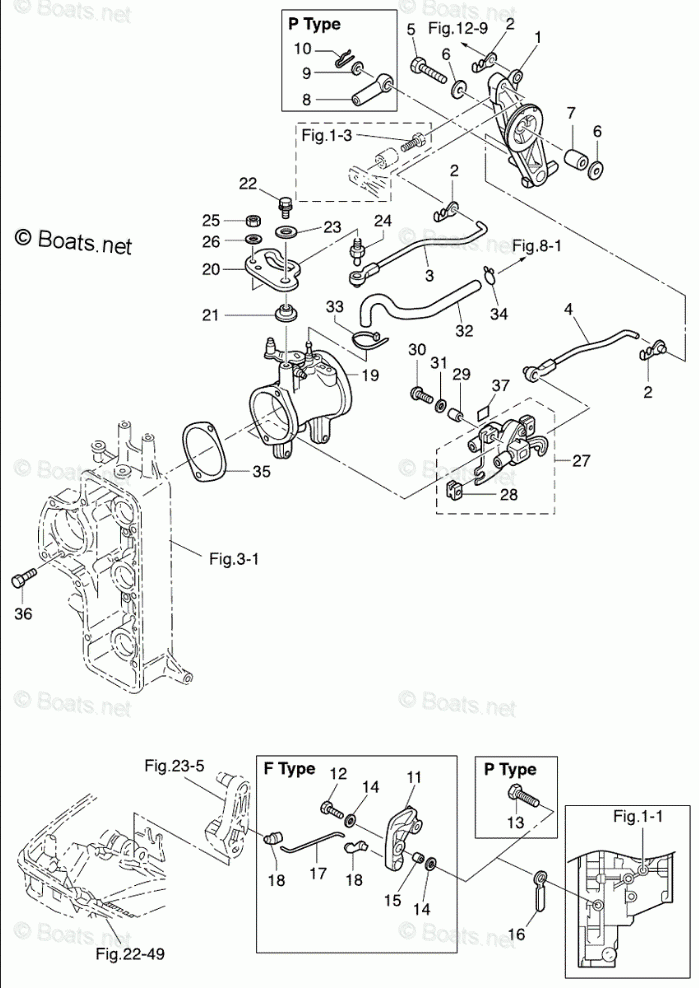

Tohatsu MD40B2

THROTTLE

#

oem код

название

цена

1

ADVANCER ARM

ADVANCER ARM

2

ROD SNAP 5-3

ROD SNAP 5-3

3

THROTTLE LINK ROD

THROTTLE LINK ROD

4

LINK ROD ASSY (TPS)

LINK ROD ASSY (TPS)

5

BOLT

BOLT

6

WASHER 6.5-21-1

WASHER 6.5-21-1

7

COLLAR 6.2-12-17

COLLAR 6.2-12-17

8

CABLE JOINT

CABLE JOINT

9

WASHER 8.5-18-1.6

WASHER 8.5-18-1.6

10

SNAP PIN D=8

SNAP PIN D=8

11

ARM THROTTLE LIMITER ARM

ARM THROTTLE LIMITER ARM

12

BOLT

BOLT

13

BOLT

BOLT

14

WASHER

WASHER

15

COLLAR 6.2 - 9 - 9.3

COLLAR 6.2 - 9 - 9.3

16

CLAMP 6.5-67P

CLAMP 6.5-67P

17

THROTTLE LIMITER ROD 3.5-56

THROTTLE LIMITER ROD 3.5-56

18

ROD SNAP 3.5-4

ROD SNAP 3.5-4

19

THROTTLE BODY ASSY

THROTTLE BODY ASSY

20

THROTTLE CAM

THROTTLE CAM

21

BUSHING 6-24-7

BUSHING 6-24-7

22

BOLT

BOLT

23

WASHER 6.5-21-1

WASHER 6.5-21-1

24

BALL JOINT B

BALL JOINT B

25

NUT

NUT

26

WASHER

WASHER

27

TPS

TPS

28

RUBBER MOUNT

RUBBER MOUNT

29

COLLAR 4.2-6-10.5

COLLAR 4.2-6-10.5

30

SCREW

SCREW

31

WASHER 4.2-12.5-0.8

WASHER 4.2-12.5-0.8

32

HOSE

HOSE

33

LEAD WIRD BAND 104

LEAD WIRD BAND 104

34

CLIP 7

CLIP 7

35

THROTTLE BODY GASKET

THROTTLE BODY GASKET

36

BOLT 6-25 PRE-COATED

BOLT 6-25 PRE-COATED

37

TPS DECAL

TPS DECAL
