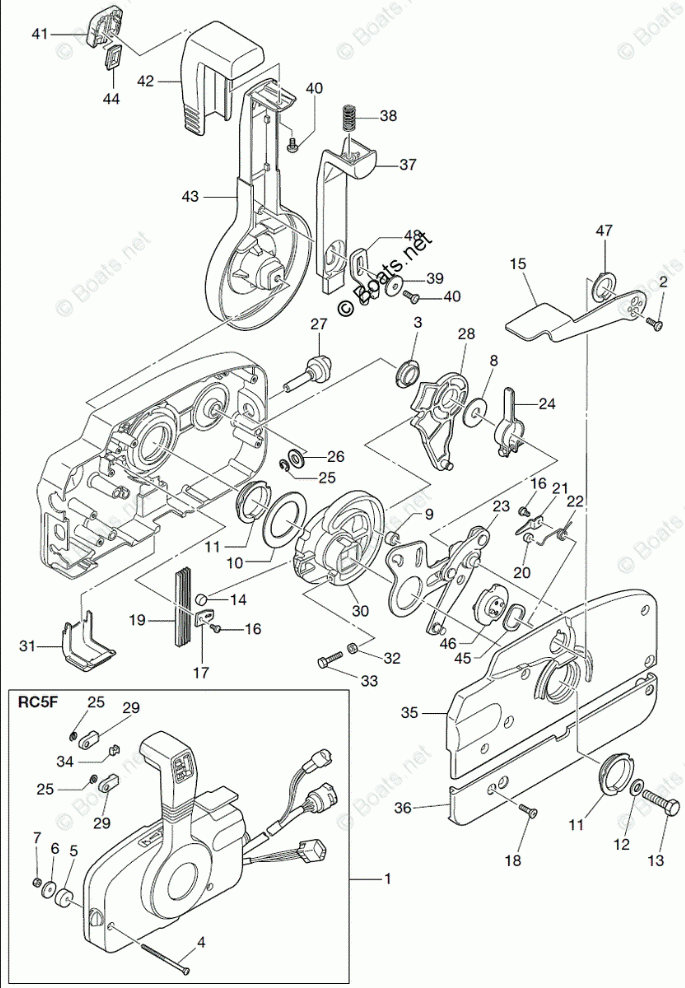

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD40B2
Tohatsu
#oem кодцена
1
3GFQ845000
REMOTE CONTROL HEAD ASSY (RC5F)
2
9216030512
SCREW
3
3A3844320
BUSHING
4
3A3843750
SCREW
5
3A3843740
SPACER
6
353843710
WASHER
7
9301030600
NUT
8
3A3843830
WASHER
9
3A3844210
ROLLER
10
3A3844220
THRUST PLATE
11
3A3844310
BUSHING
12
9401030800
WASHER
13
3A3844420
BOLT
14
353843880
DETENT ROLLER
15
3B7Q843120
FREE THROTTLE LEVER
16
9215030406
SCREW
17
3A3844230
DETENT RETAINER
18
9216030518
SCREW
19
3A3843070
DETENT SPRING
20
3A3844240
FREE THROTTLE ROLLER
21
3A3844260
ROLLER RETAINER
22
3A3844250
FREE THROTTLE SPRING
23
3A3843651
THROTTLE ARM
24
3A3844280
THROTTLE FRICTION ARM
25
9453030600
E-RING D=6
26
353843940
WASHER
27
3A3844270
ADJUST SCREW
28
3A3843810
SHIFT GEAR ASSY
29
3A3833142
CABLE TERMINAL
30
3A3843642
DRIVE GEAR
31
3A3844290
WIRE COVER
32
9301030500
NUT
33
9101030525
BOLT
34
3A3843760
GROMMET
35
3B7Q844410
REAR HOUSING
36
3B7Q843660
REAR PANEL
37
3A3844010
NEUTRAL LOCK ARM
38
3A3844030
NEUTRAL LOCK SPRING
39
3A3844070
WASHER
40
9215030510
SCREW
41
3A3844510
TILT SWITCH COVER
42
3A3844040
GRIP
43
3B7Q843430
CONTROL LEVER
44
3A3844520
TILT SWITCH PLUG
45
3A3843680
WAVE WASHER
46
3A3843910
FREE THROTTLE DRUM
47
3A3844350
BUSHING
48
3A3844060
PLATE
