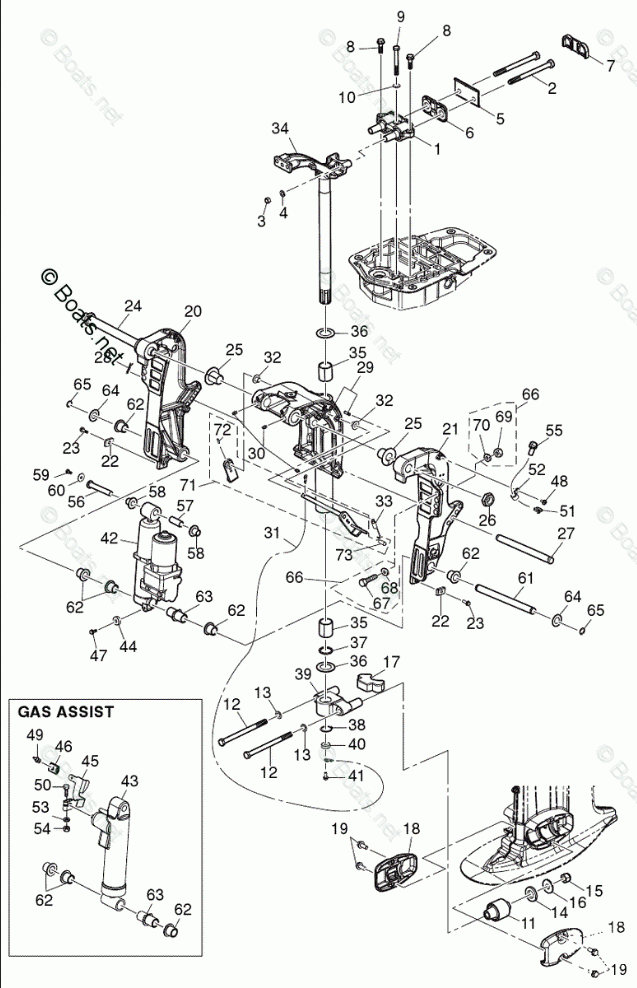

BRACKET

Tohatsu MFS40A

BRACKET

#

oem код

название

цена

1

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

2

BOLT M10P1.25-130

BOLT M10P1.25-130

3

NUT 10-P1.25

NUT 10-P1.25

4

WASHER

WASHER

5

LOCK PLATE

LOCK PLATE

6

DAMPER (UPPER)

DAMPER (UPPER)

7

DAMPER (UPPER)

DAMPER (UPPER)

8

BOLT

BOLT

9

BOLT M8-70

BOLT M8-70

10

WASHER

WASHER

11

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

12

BOLT M12 P1.25-177.5

BOLT M12 P1.25-177.5

13

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

14

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

15

NYLON NUT 12 P1.25

NYLON NUT 12 P1.25

16

WASHER

WASHER

17

DAMPER (LOWER)

DAMPER (LOWER)

18

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

19

BOLT

BOLT

20

CLAMP BRACKET (PTT-R)

CLAMP BRACKET (PTT-R)

21

CLAMP BRACKET (PTT-L)

CLAMP BRACKET (PTT-L)

22

ANODE

ANODE

23

BOLT

BOLT

24

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

25

BUSHING

BUSHING

26

NYLON NUT 7/8

NYLON NUT 7/8

27

THRUST ROD

THRUST ROD

28

SNAP PIN D=10

SNAP PIN D=10

29

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

30

GREASE FITTING

GREASE FITTING

31

GROUND CABLE

GROUND CABLE

32

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

33

SPRING TILT STOPPER

SPRING TILT STOPPER

34

STEERING SHAFT ASSY

STEERING SHAFT ASSY

35

BUSHING 30 - 36 - 41

BUSHING 30 - 36 - 41

36

THRUST PLATE

THRUST PLATE

37

O-RING 3.5 - 29.7

O-RING 3.5 - 29.7

38

C-RING D=28

C-RING D=28

39

MOUNT BRACKET

MOUNT BRACKET

40

ANODE

ANODE

41

BOLT

BOLT

42

PTT ASSY

PTT ASSY

43

GAS SHOCK ABSORBER

GAS SHOCK ABSORBER

44

ANODE

ANODE

45

LOCK LEVER

LOCK LEVER

46

REVERSE LOCK LEVER GRIP

REVERSE LOCK LEVER GRIP

47

BOLT

BOLT

48

SCREW

SCREW

49

STOPPER LEVER GRIP

STOPPER LEVER GRIP

50

BOLT 6-35

BOLT 6-35

51

LEAD WIRE BAND 203

LEAD WIRE BAND 203

52

CLAMP 6.5-14L

CLAMP 6.5-14L

53

WASHER

WASHER

54

NUT

NUT

55

TERMINAL CAP

TERMINAL CAP

56

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

57

BUSHING 13 -16 - 40

BUSHING 13 -16 - 40

58

BUSHING 18-24-22

BUSHING 18-24-22

59

BOLT

BOLT

60

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

61

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

62

BUSHING 18-24-22

BUSHING 18-24-22

63

BUSHING 18-24-60

BUSHING 18-24-60

64

WASHER 18.2 - 34 -1

WASHER 18.2 - 34 -1

65

C-RING D=18

C-RING D=18

66

RIGGING BOLT SET

RIGGING BOLT SET

67

BOLT 12P 1.25 - L105

BOLT 12P 1.25 - L105

68

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

69

NUT P1.25

NUT P1.25

70

WASHER

WASHER

71

TILT STOPPER KIT

TILT STOPPER KIT

72

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

73

TILT STOPPER GRIP

TILT STOPPER GRIP
