GEAR CASE, DRIVE SHAFT

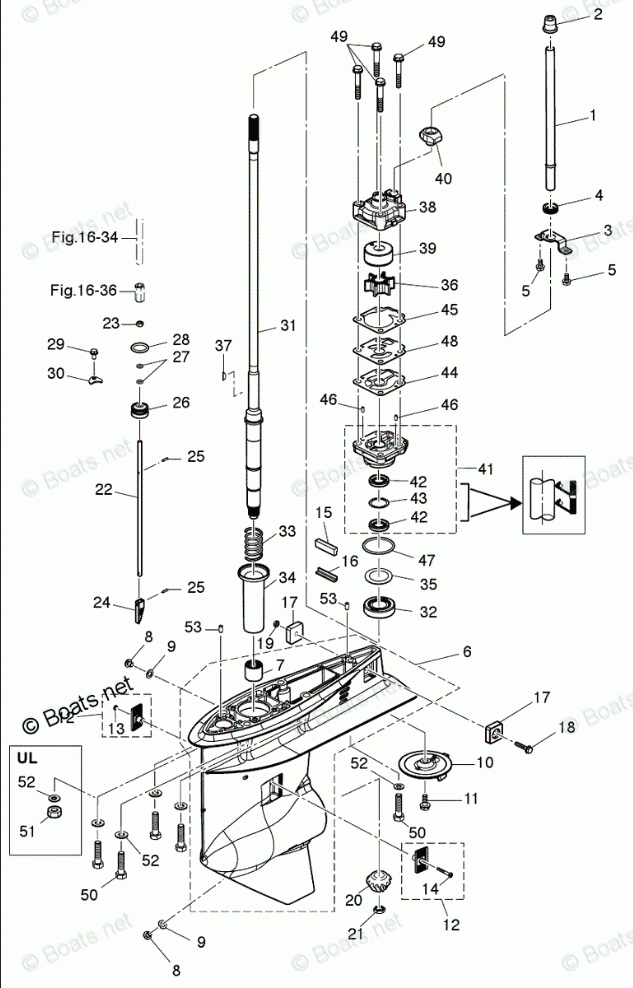

GEAR CASE, DRIVE SHAFT

GEAR CASE, DRIVE SHAFT

Tohatsu MFS40A

GEAR CASE, DRIVE SHAFT

#

oem код

название

цена

1

WATER PIPE (L)

WATER PIPE (L)

2

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

3

LOCK PLATE

LOCK PLATE

4

WATER PIPE AUXILIARY MOUNT

WATER PIPE AUXILIARY MOUNT

5

BOLT

BOLT

6

GEAR CASE ASSY

GEAR CASE ASSY

7

ROLLER BEARING

ROLLER BEARING

8

WATER PLUG

WATER PLUG

9

GASKET 8.1-15-1

GASKET 8.1-15-1

10

TRIM TAB

TRIM TAB

11

BOLT

BOLT

12

WATER STRAINER SET

WATER STRAINER SET

13

NYLON NUT 4P-0.7

NYLON NUT 4P-0.7

14

SCREW

SCREW

15

WATER SEAL RUBBER

WATER SEAL RUBBER

16

WATER SEAL PLATE

WATER SEAL PLATE

17

ANODE

ANODE

18

BOLT

BOLT

19

NYLON NUT 6-P 1.0

NYLON NUT 6-P 1.0

20

BEVEL GEAR B

BEVEL GEAR B

21

BEVEL GEAR B NUT

BEVEL GEAR B NUT

22

CAM ROD (UL)

CAM ROD (UL)

23

NUT

NUT

24

CLUTCH CAM

CLUTCH CAM

25

SPRING PN 3-12

SPRING PN 3-12

26

BUSHING CAM ROD

BUSHING CAM ROD

27

O-RING 2.4 - 5.8

O-RING 2.4 - 5.8

28

O-RING 3.5 - 21.7

O-RING 3.5 - 21.7

29

BOLT

BOLT

30

STOPPER

STOPPER

31

DRIVE SHAFT (S)

DRIVE SHAFT (S)

32

TAPERED ROLLER BEARING

TAPERED ROLLER BEARING

33

DRIVE SHAFT SPRING

DRIVE SHAFT SPRING

34

DRIVE SHAFT SPRING GUIDE

DRIVE SHAFT SPRING GUIDE

35

SHIM 41-51.5-0.1

SHIM 41-51.5-0.1

36

WATER PUMP IMPELLER

WATER PUMP IMPELLER

37

KEY PUMP IMPELLER

KEY PUMP IMPELLER

38

PUMP CASE (UPPER)

PUMP CASE (UPPER)

39

PUMP CASE LINER

PUMP CASE LINER

40

WATER PIPE SEAL (LOWER)

WATER PIPE SEAL (LOWER)

41

PUMP CASE ASSY (LOWER)

PUMP CASE ASSY (LOWER)

42

OIL SEAL 17-33-6

OIL SEAL 17-33-6

43

SHIM 32.9-26-0.5

SHIM 32.9-26-0.5

44

GUIDE PLATE GASKET

GUIDE PLATE GASKET

45

PUMP CASE GASKET

PUMP CASE GASKET

46

KNOCK 4 -10

KNOCK 4 -10

47

O-RING 3.2-47

O-RING 3.2-47

48

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

49

BOLT

BOLT

50

BOLT

BOLT

51

NUT 10-P1.25

NUT 10-P1.25

52

WASHER

WASHER

53

DOWEL PIN 6-12

DOWEL PIN 6-12
