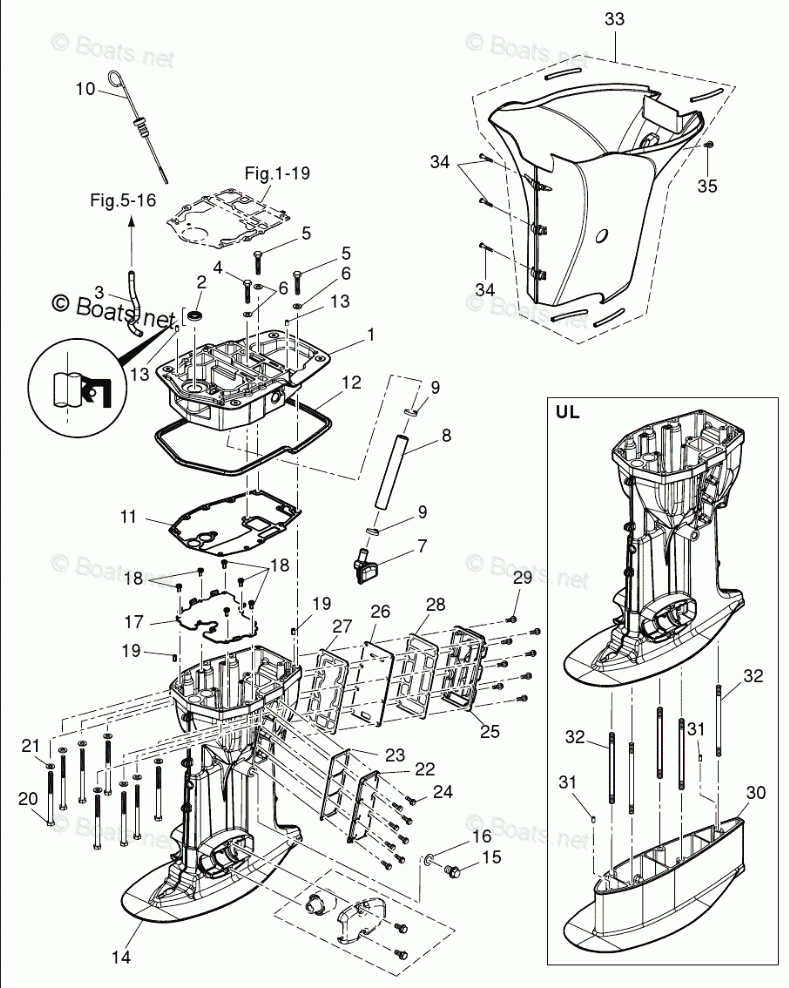

КОРПУС ПРИВОДНОГО ВАЛА
КОРПУС ПРИВОДНОГО ВАЛА

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS40A

КОРПУС ПРИВОДНОГО ВАЛА

#

oem код

название

цена

1

ENGINE BASEMENT ASSY

ENGINE BASEMENT ASSY

2

OIL SEAL 16 - 28 - 6

OIL SEAL 16 - 28 - 6

3

COOLING HOSE

COOLING HOSE

4

BOLT 8-40

BOLT 8-40

5

CYLINDER HEAD BOLT

CYLINDER HEAD BOLT

6

WASHER

WASHER

7

OIL STRAINER ASSY

OIL STRAINER ASSY

8

PIPE L=150

PIPE L=150

9

LEAD WIRE BAND 150

LEAD WIRE BAND 150

10

OIL LEVEL GAUGE

OIL LEVEL GAUGE

11

DRIVE SHAFT HOUSING GASKET T=0.5

DRIVE SHAFT HOUSING GASKET T=0.5

12

ENGINE BASEMENT SEAL

ENGINE BASEMENT SEAL

13

DOWEL PIN 6-12

DOWEL PIN 6-12

14

DRIVE SHAFT HOUSING ASSY (S)

DRIVE SHAFT HOUSING ASSY (S)

15

DRAIN BOLT

DRAIN BOLT

16

WASHER 14.5-24-1

WASHER 14.5-24-1

17

GUIDE PLATE

GUIDE PLATE

18

CREW

CREW

19

DOWEL PIN 6-12

DOWEL PIN 6-12

20

BOLT 8-115

BOLT 8-115

21

WASHER

WASHER

22

COVER

COVER

23

GASKET

GASKET

24

BOLT

BOLT

25

IDLE EXHAUST PORT COVER

IDLE EXHAUST PORT COVER

26

PLATE

PLATE

27

IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

28

IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

29

BOLT

BOLT

30

EXTENSION HOUSING

EXTENSION HOUSING

31

DOWEL PIN 6-12

DOWEL PIN 6-12

32

STUD M10-145

STUD M10-145

33

APRON ASSY

APRON ASSY

34

TAPPING SCREW 5-30

TAPPING SCREW 5-30

35

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)
