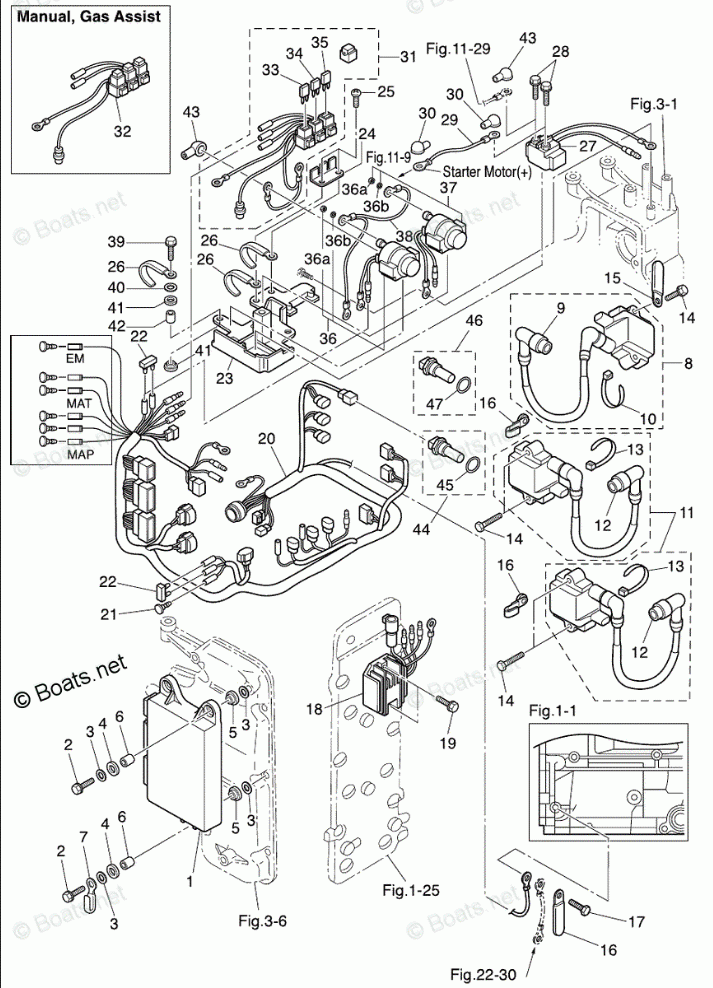

ELECTRIC PARTS (ECU & DIAGRAM)

Tohatsu MD50B2
Tohatsu
#oem кодцена
1
3GF064010
ECU ASSY
2
9101036630
BOLT
3
346671150
WASHER 6.5-21-1
4
346671130
RUBBER MOUNT 8.5-14-2.5
5
3B7069200
RUBBER MOUNT 8.5-14-2.5
6
3T5671140
SPACER 6.2-9-16.6
7
309069720
CLAMP 6.5-47.5P
8
3Z5064690
IGNITION COIL #1
9
3H6069990
PLUG CAP (WITH RESISTANCE)
10
369843980
LEAD WIRE BAND 150
11
3Z5064700
IGNITION COIL #2 & # 3
12
3H6069990
PLUG CAP (WITH RESISTANCE)
13
369843980
LEAD WIRE BAND 150
14
9101037635
BOLT
15
309069720
CLAMP 6.5-47.5P
16
3T4069721
CLAMP 6.5-87P
17
9101036614
BOLT
18
3Z5760602
RECTIFIER COMPLETE
19
9101035620
BOLT
20
3GF761100
CORD ASSY
21
3A3760370
CABLE TERMINAL PLUG
22
353760370
CABLE TERMINAL PLUG
23
3T5725850
SOLENOID SWITCH BRACKET
24
3T9760640
FUSE HOLDER BRACKET
25
3T5064370
TAPPING SCREW 6-16
26
3T4069721
CLAMP 6.5-87P
27
3H8760400
STARTER SOLENOID
28
9101035610
BOLT
29
3R3761410
STARTER CORD (L=270)
30
3A3761450
CAP CORD
31
3Y9760621
FUSE WIRE ASSY
32
3Z5760660
FUSE HOLDER B (EFO TYPE)
33
3T5762490
FUSE 30A
34
3Y9762480
FUSE 25A
35
3T5762460
FUSE 15A
36A
9301030600
NUT
36
3C8725800
SOLENOID SWITCH A PTT
36B
9413030600
SPRING WASHER
37
3C8725810
SOLENOID SWITCH B PTT
38
3T5761421
GROUND CABLE L=140&285
39
9101036625
BOLT
40
3C8663080
WASHER 6 -16 -1.5
41
3F3069200
RUBBER MOUNT 8.5 -12 - 2
42
3T5760790
COLLAR 6.2-9-10.7
43
3A3761450
CAP CORD
44
3Y9725140
WATER TEMP SENSOR
45
3G9661360
O-RING 2-10
46
3Y9725140
WATER TEMP SENSOR
47
3G9661360
O-RING 2-10
