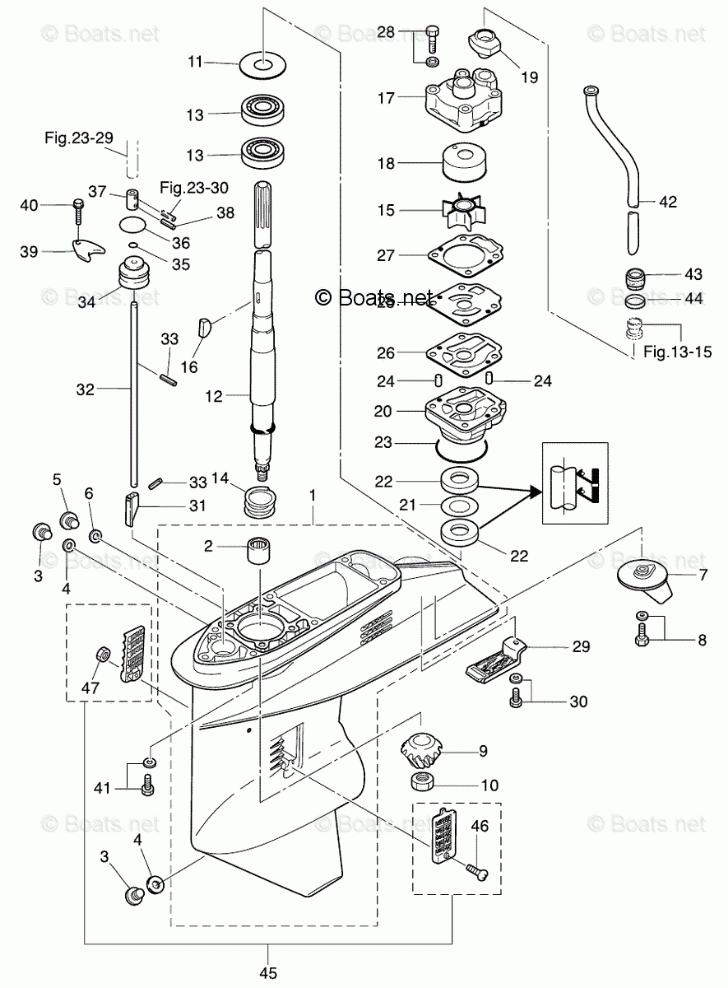

GEAR CASE (DRIVE SHAFT) MD30/40/50B2
GEAR CASE (DRIVE SHAFT) MD30/40/50B2

GEAR CASE (DRIVE SHAFT) MD30/40/50B2

Tohatsu MD50B2

GEAR CASE (DRIVE SHAFT) MD30/40/50B2

#

oem код

название

цена

1

GEAR CASE

GEAR CASE

2

NEEDLE BEARING 22-30-30

NEEDLE BEARING 22-30-30

3

WATER PLUG

WATER PLUG

4

GASKET 8.1-15-1

GASKET 8.1-15-1

5

WATER PLUG

WATER PLUG

6

GASKET 10.1-15-1

GASKET 10.1-15-1

7

TRIM TAB

TRIM TAB

8

BOLT

BOLT

9

BEVEL GEAR B

BEVEL GEAR B

10

BEVEL GEAR B NUT

BEVEL GEAR B NUT

11

SHIM 41-51.5-0.1

SHIM 41-51.5-0.1

12

DRIVE SHAFT S

DRIVE SHAFT S

13

BEARING 6304

BEARING 6304

14

DRIVE SHAFT SPRING

DRIVE SHAFT SPRING

15

WATER PUMP IMPELLER

WATER PUMP IMPELLER

16

KEY PUMP IMPELLER

KEY PUMP IMPELLER

17

PUMP CASE (UPPER)

PUMP CASE (UPPER)

18

PUMP CASE LINER

PUMP CASE LINER

19

WATER PIPE SEAL (LOWER)

WATER PIPE SEAL (LOWER)

20

PUMP CASE (LOWER)

PUMP CASE (LOWER)

21

SHIM 32.9-26-0.5

SHIM 32.9-26-0.5

22

OIL SEAL 17-33-6

OIL SEAL 17-33-6

23

O-RING 3.2-47

O-RING 3.2-47

24

KNOCK 4 -10

KNOCK 4 -10

25

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

26

GUIDE PLATE GASKET

GUIDE PLATE GASKET

27

PUMP CASE GASKET

PUMP CASE GASKET

28

BOLT

BOLT

29

SUB WATER STRAINER

SUB WATER STRAINER

30

BOLT

BOLT

31

CLUTCH CAM

CLUTCH CAM

32

CAM ROD S

CAM ROD S

33

SPRING PN 3-12

SPRING PN 3-12

34

CAM ROD BUSHING

CAM ROD BUSHING

35

O-RING 2.4 - 5.8

O-RING 2.4 - 5.8

36

O-RING 3.5 - 21.7

O-RING 3.5 - 21.7

37

SHIFT ROD JOINT

SHIFT ROD JOINT

38

SPRING PIN 3-12

SPRING PIN 3-12

39

STOPPER

STOPPER

40

BOLT

BOLT

41

BOLT

BOLT

42

WATER PIPE S

WATER PIPE S

43

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

44

COLLAR 18-20-4.5

COLLAR 18-20-4.5

45

WATER STRAINER SET

WATER STRAINER SET

46

SCREW

SCREW

47

NYLON NUT 4P-0.7

NYLON NUT 4P-0.7
