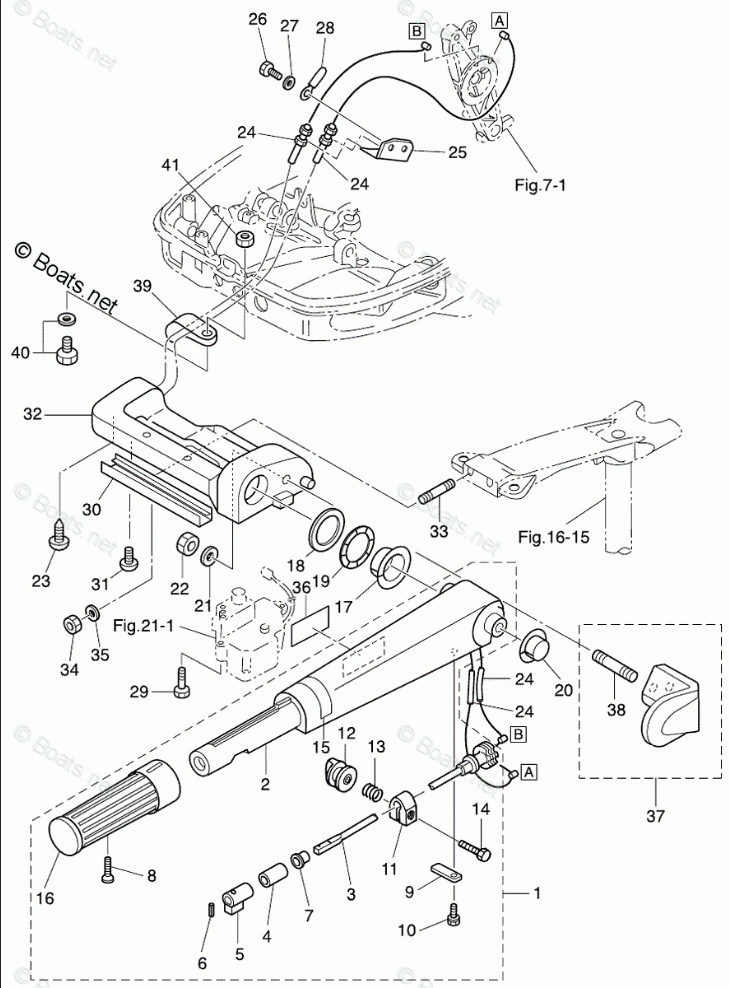

TILLER HANDLE (F TYPE) (STANDARD)

Tohatsu MD50B2
Tohatsu
#oem кодцена
1
3T5Q630031
TILLER HANDLE ASSY
2
3C8Q630112
TILLER HANDLE
3
3C8630411
THROTTLE SHAFT
4
345630480
RUBBER THROTTLE SHAFT
5
398630530
THROTTLE SHAFT SPACER
6
9514030310
SPRING PIN 3-10
7
350630460
BUSHING 8.4 -10 -11
8
9218030525
SCREW
9
3C8630630
THROTTLE SHAFT SUPPORTER
10
9101E35612
BOLT
11
3V1630351
FRICTION PIECE
12
3V1630770
ADJUSTING NUT
13
3V1630360
SPRING
14
9101E30625
BOLT (OR 910113-0625)
15
3T5720190
THROTTLE DECAL
16
398630120
GRIP
17
3C8631010
TILLER HANDLE BUSHING A
18
3B2631080
WASHER 30-45-1
19
3B2631090
WAVE WASHER 30-45-1.2
20
3C8631021
TILLER HANDLE BUSHING B
21
9401E31000
WASHER
22
9301031000
NUT
23
3C8636070
THROTTLE CABLE CLIP
24
3C8636001
THROTTLE WIRE
25
3C8635081
THROTTLE WIRE BRACKET
26
9101030614
BOLT
27
9401030600
WASHER
28
309069720
CLAMP 6.5-47.5P
29
9101036625
BOLT
30
3T5620040
CORD HOLDER
31
9219030625
SCREW
32
3E3Q620010
STEERING BRACKET
33
3C8620970
STUD 10-50 P1.25
34
3C8620980
NYLON NUT 10-P1.25
35
9402E31000
WASHER
36
3T5843350
MAIN SWITCH DECAL
37
3E5Q630281
TILLER HANDLE HOLDER ASSY
38
9153E31022
STUD
39
345069150
CLAMP 6.5-14L
40
9101035612
BOLT
41
9301030600
NUT
