TILLER HANDLE (MD40/MD50B2) (MULTI-FUNCTION) Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B2 (2014)

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2014
MD50B2

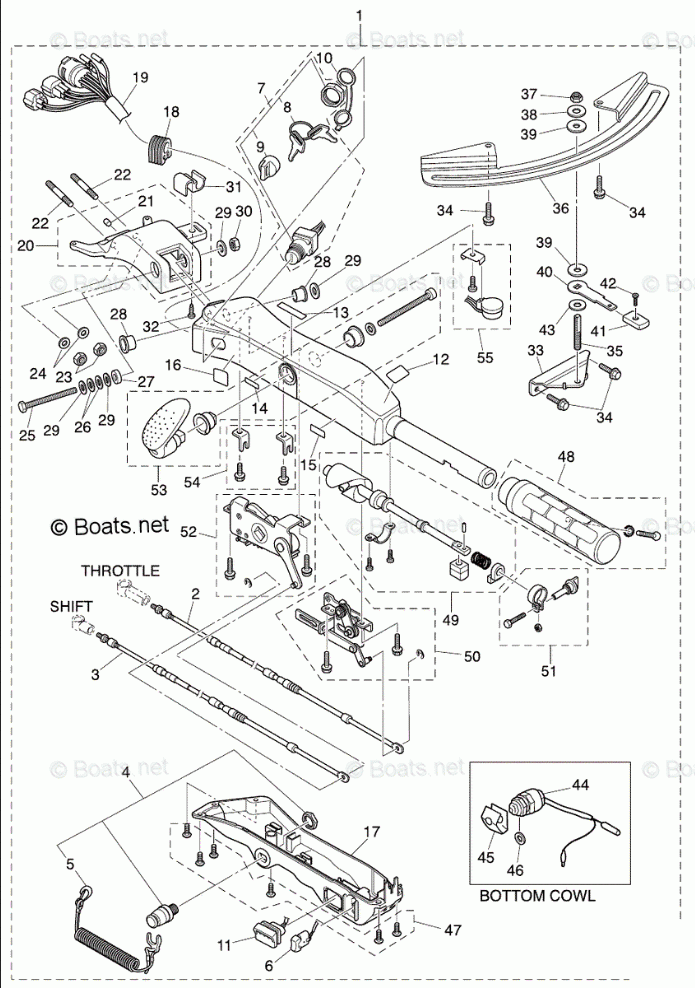

TILLER HANDLE (MD40/MD50B2) (MULTI-FUNCTION)
TILLER HANDLE (MD40/MD50B2) (MULTI-FUNCTION)

TILLER HANDLE (MD40/MD50B2) (MULTI-FUNCTION)

Tohatsu MD50B2

TILLER HANDLE (MD40/MD50B2) (MULTI-FUNCTION)

oem код

название

цена

TILLER HANDLE KIT

THROTTLE WIRE

SHIFT CABLE

STOP SWITCH

STOP SWITCH LANYARD

PTT SWITCH ASSY

MAIN SWITCH ASSY

MAIN SWITCH KEY

MAIN SWITCH KEY COVERING CAP

MAIN SWITCH CAP

PILOT LAMP ASSY

THROTTLE DECAL

SHIFT DECAL

WARNING LAMP DECAL

STOP SWITCH DECAL

INSTRUCTION DECAL

TILLER HANDLE COVER

GROMMET

CORD ASSY

STEERING BRACKET ASSY

DOWEL PIN 8-16

STUD 10-45 P1.25

NYLON NUT 10-P1.25

WASHER

BOLT 10-80 P1.25

CONICAL SPRING WASHER 10.5-21-2.3

3GF630250

SPACER 10.5-23-9

3GF631020

BUSHING 10.5-12.7-13.5

WASHER

LOCK NUT 10-P1.25

CORD HOLDER

TAPPING SCREW 6-16

FRICTION LEVER BRACKET

BOLT 6-16 PRECOATED

BOLT 8-32 P1.25

PLATE

NYLON NUT (2T) M8 P1.25

WASHER 8.5-24-1.5

DISC 8.5-25-2

FRICTION LEVER

GRIP

STOPPER LEVER GRIP

WASHER 8.1-20-0.8

NEUTRAL SWITCH

NEUTRAL SWITCH ACTUATOR

WASHER 12.5-24-1

SCREW SET

GRIP PARTS KIT

THROTTLE SHAFT KIT

THROTTLE LINK ASSY

THROTTLE FRICTION ASSY

SHIFT UNIT ASSY

SHIFT LEVER KIT

CABLE BRACKET KIT

BUZZER KIT
