Tohatsu MD50B2

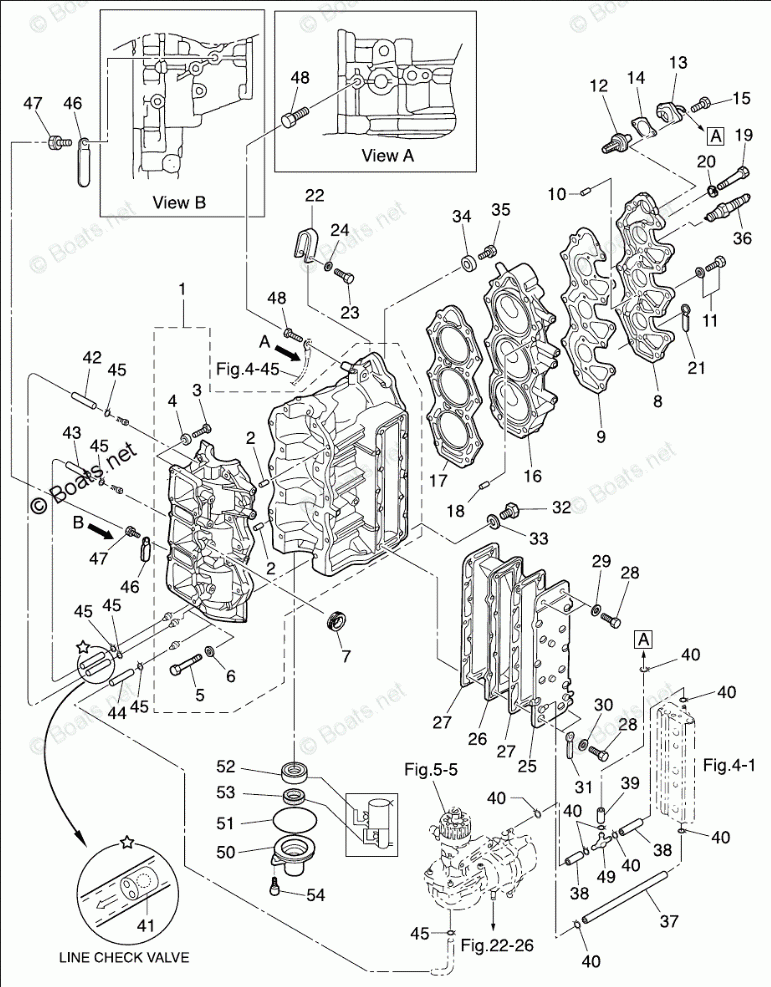

CYLINDER & CRANK CASE

#

oem код

название

цена

1

CYLINDER-CRANK CASE

CYLINDER-CRANK CASE

2

DOWEL PIN 6-12

DOWEL PIN 6-12

3

BOLT

BOLT

4

COLLAR 6.2 - 9 - 9.3

COLLAR 6.2 - 9 - 9.3

5

BOLT

BOLT

6

WASHER

WASHER

7

GROMMET 25-5

GROMMET 25-5

8

CYLINDER HEAD COVER

CYLINDER HEAD COVER

9

CYLINDER HEAD COVER GASKET

CYLINDER HEAD COVER GASKET

10

KNOCK 4 -10

KNOCK 4 -10

11

BOLT

BOLT

12

THERMOSTAT

THERMOSTAT

13

THERMOSTAT CAP

THERMOSTAT CAP

14

THERMOSTAT CAP GASKET

THERMOSTAT CAP GASKET

15

BOLT

BOLT

16

CYLINDER HEAD

CYLINDER HEAD

17

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

18

DOWEL PIN 6-12

DOWEL PIN 6-12

19

BOLT

BOLT

20

WASHER 8.5-19.5-3.2

WASHER 8.5-19.5-3.2

21

CLAMP 8.5-85P

CLAMP 8.5-85P

22

HANGER

HANGER

23

BOLT

BOLT

24

WASHER

WASHER

25

EXHAUST COVER ASSY

EXHAUST COVER ASSY

26

EXHAUST COVER (INNER)

EXHAUST COVER (INNER)

27

EXHAUST COVER GASKET

EXHAUST COVER GASKET

28

BOLT

BOLT

29

WASHER

WASHER

30

WASHER

WASHER

31

CLAMP 6.5-87P

CLAMP 6.5-87P

32

BOLT

BOLT

33

GASKET 8.1-15-1

GASKET 8.1-15-1

34

ANODE

ANODE

35

BOLT

BOLT

36

SPARK PLUG (IZFR6Q)

SPARK PLUG (IZFR6Q)

37

RUBBER HOSE

RUBBER HOSE

38

HOSE

HOSE

39

HOSE

HOSE

40

CLIP 10

CLIP 10

41

LINE CHECK VALVE

LINE CHECK VALVE

42

HOSE

HOSE

43

HOSE

HOSE

44

HOSE

HOSE

45

CLIP 7

CLIP 7

46

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

47

BOLT

BOLT

48

BOLT

BOLT

49

T-NIPPLE (WITH VALVE)

T-NIPPLE (WITH VALVE)

50

CRANK CASE HEAD

CRANK CASE HEAD

51

O-RING 1.7-59

O-RING 1.7-59

52

OIL SEAL 25-40-8

OIL SEAL 25-40-8

53

OIL SEAL 16-28-7

OIL SEAL 16-28-7

54

BOLT

BOLT
