BOTTOM COWL Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS50A (2014)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

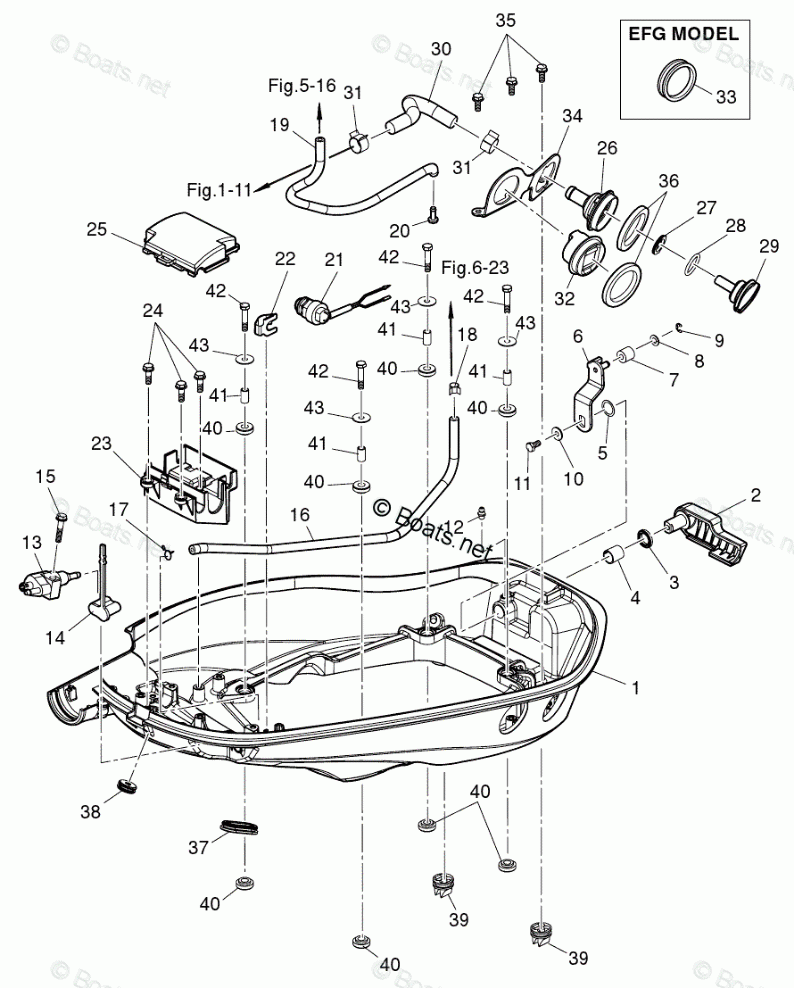

BOTTOM COWL

Tohatsu MFS50A

BOTTOM COWL

#

oem код

название

цена

1

BOTTOM COWL

BOTTOM COWL

2

HOOK LEVER

HOOK LEVER

3

SEAL RING

SEAL RING

4

BUSHING 14 -16.5 -17.7

BUSHING 14 -16.5 -17.7

5

WAVE WASHER D=14

WAVE WASHER D=14

6

COVER HOOK

COVER HOOK

7

ROLLER 6.1-14.7 -14

ROLLER 6.1-14.7 -14

8

WASHER 6.5-21-1

WASHER 6.5-21-1

9

E-RING D=5

E-RING D=5

10

WASHER 6-16-1.5

WASHER 6-16-1.5

11

BOLT

BOLT

12

GREASE FITTING

GREASE FITTING

13

FUEL CONNECTOR ( ENGINE MALE)

FUEL CONNECTOR ( ENGINE MALE)

14

FUEL CONNECTOR PROTECTOR

FUEL CONNECTOR PROTECTOR

15

BOLT

BOLT

16

RUBBER PIPE

RUBBER PIPE

17

CLIP 10

CLIP 10

18

CLIP 9.5

CLIP 9.5

19

WATER HOSE

WATER HOSE

20

WATER NIPPLE

WATER NIPPLE

21

NEUTRAL SWITCH

NEUTRAL SWITCH

22

NEUTRAL SWITCH ACTUATOR

NEUTRAL SWITCH ACTUATOR

23

CABLE TERMINAL HOLDER

CABLE TERMINAL HOLDER

24

BOLT

BOLT

25

COVER

COVER

26

FLUSHING CONNECTOR

FLUSHING CONNECTOR

27

SEAL RING

SEAL RING

28

O-RING 3.1-24.4

O-RING 3.1-24.4

29

FLUSHING CONNECTOR CAP

FLUSHING CONNECTOR CAP

30

FLUSHING HOSE

FLUSHING HOSE

31

CLIP 17.8

CLIP 17.8

32

PTT SWITCH

PTT SWITCH

33

GROMMET

GROMMET

34

FLUSHING CONNECTOR BRACKET

FLUSHING CONNECTOR BRACKET

35

BOLT

BOLT

36

GASKET PTT SWITCH

GASKET PTT SWITCH

37

SHIFT ROD GROMMET

SHIFT ROD GROMMET

38

GROMMET

GROMMET

39

GROMMET

GROMMET

40

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

41

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

42

BOLT

BOLT

43

WASHER 6.5-21-1

WASHER 6.5-21-1
