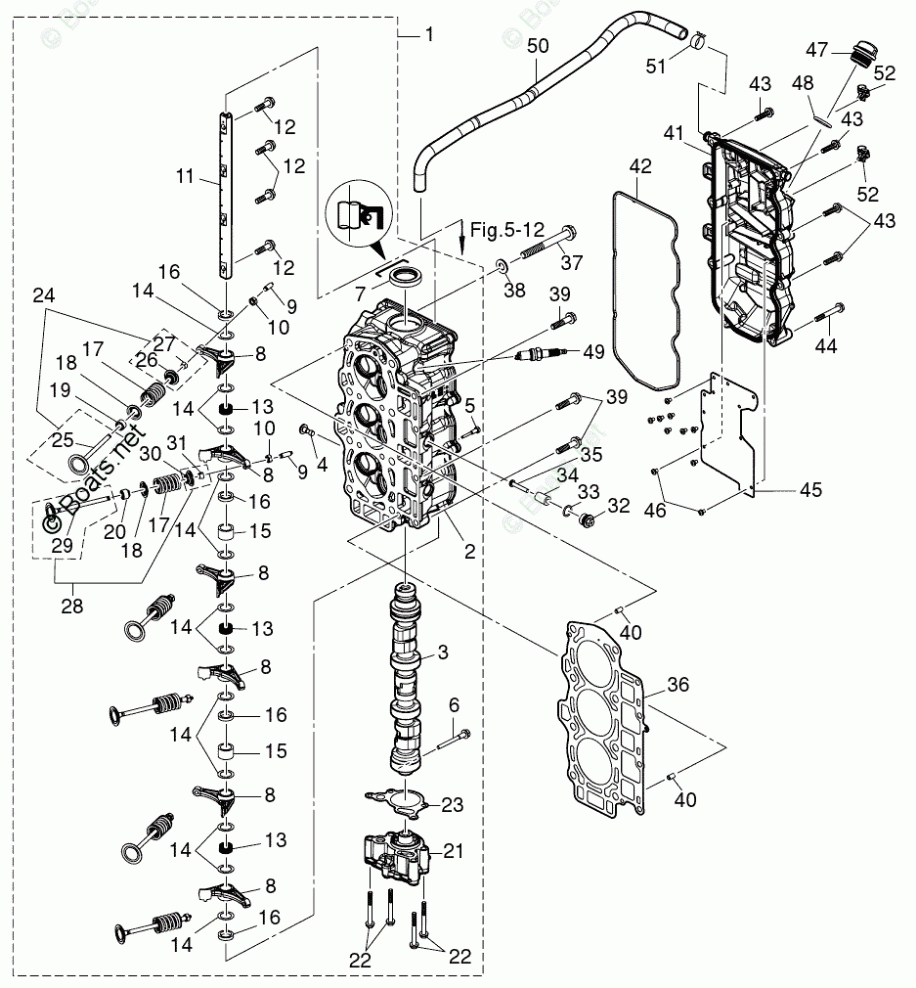

CYLINDER HEAD & OIL PUMP

Tohatsu MFS50A
Tohatsu
#oem кодцена
1
3KYB010000
CYLINDER HEAD COMPLETE
2
3KYB010010
CYLINDER HEAD ASSY
3
3KY078100
CAMSHAFT ASSY
4
3KY079600
LIFTER
5
3KY079620
LIFTER BOLT
6
3KY079500
THRUST BOLT
7
3V1001210
OIL SEAL 30-45-8
8
3KY079350
ROCKER ARM
9
3KY079380
ADJUSTING SCREW
10
3KY079370
ADJUSTING NUT
11
3KY079200
ROCKER ARM SHAFT
12
3KY079220
ROCKER SHAFT BOLT
13
3KY079250
ROCKER SHAFT SPRING
14
3KY079270
WASHER 16-23-0.5
15
3KY079390
COLLAR 16-21.7-14.25
16
3KZ079390
COLLAR 16-21.7-4.25
17
3KY079030
VALVE SPRING
18
3KY079050
VALVE SPRING SEAT
19
3R3072040
INTAKE VALVE STEM SEAL
20
3R3072060
EXHAUST VALVE STEM SEAL
21
3KY076000
OIL PUMP ASSY
22
9101E35650
BOLT
23
3KY076530
OIL PUMP GASKET
24
3KY078950
INTAKE VALVE KIT
25
3KY079010
INTAKE VALVE 32
26
3KY079210
RETAINER
27
3H6072230
COTTER
28
3KY078960
EXHAUST VALVE KIT
29
3KY079020
EXHAUST VALVE 28
30
3KY079210
RETAINER
31
3H6072230
COTTER
32
3P0011430
ANODE PLUG
33
3T5100460
O-RING 13-1.9
34
3P0602180
ANODE
35
9215030530
SCREW
36
3KY010050
CYLINDER HEAD GASKET
37
3KY010130
CYLINDER HEAD BOLT M10-90
38
9401211000
WASHER
39
3BJ610171
BOLT 8-P1.25
40
345011110
DOWEL PIN 6-12
41
3KYB010200
CYLINDER HEAD COVER ASSY
42
3KY010240
CYLINDER HEAD COVER GASKET
43
9101035625
BOLT
44
9101035645
BOLT
45
3KY077310
BREATHER CHAMBER COVER
46
9215210406
SCREW
47
3R0710151
OIL FILLER CAP
48
3R0074220
O-RING 3.1-24.4
49
970111103
SPARK PLUG
50
3KY077350
BREATHER HOSE
51
3R0077371
CLIP 15.5
52
3KY843980
BAND
