Intake Manifold / Injector
Intake Manifold / Injector

Intake Manifold / Injector

Tohatsu BFT60A

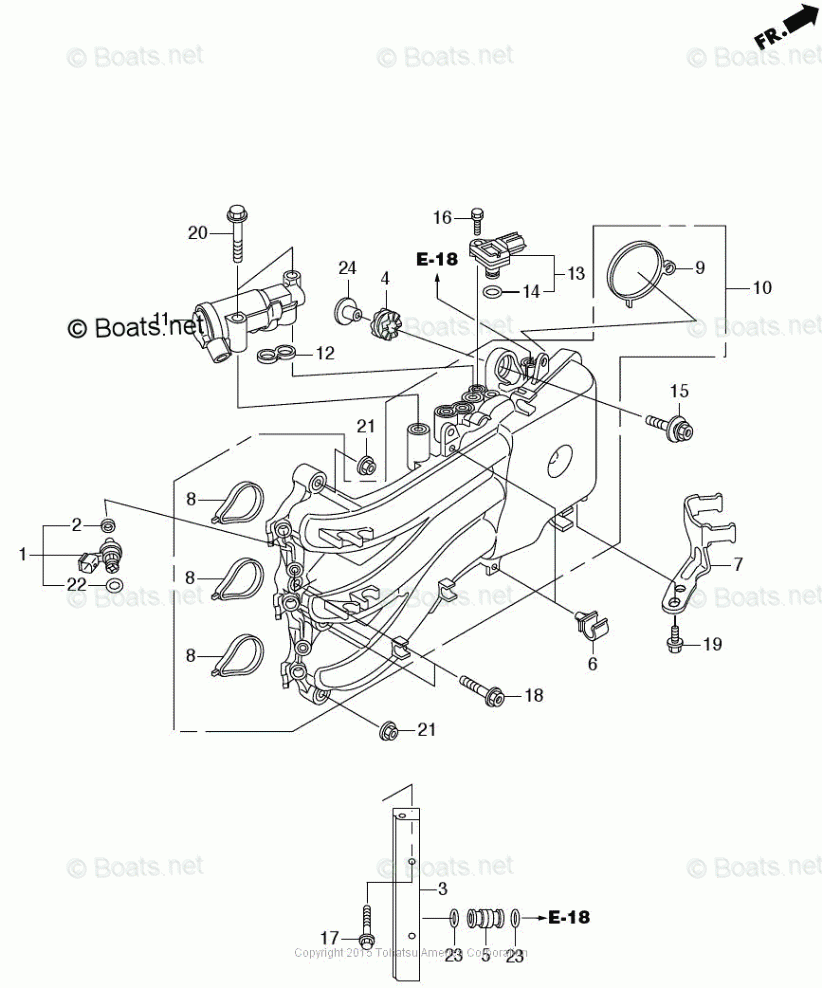

Intake Manifold / Injector

#

oem код

название

цена

E-14-2

RING, SEAL

RING, SEAL

E-14-19

BOLT, FLANGE, 6X12

BOLT, FLANGE, 6X12

E-14-9

PACKING, THROTTLE BODY

PACKING, THROTTLE BODY

E-14-3

FUEL LINE

FUEL LINE

E-14-10

MANIFOLD, INLET

MANIFOLD, INLET

E-14-8

PACKING, INTAKE MANIFOLD

PACKING, INTAKE MANIFOLD

E-14-7

STAY, FUEL STRAINER

STAY, FUEL STRAINER

E-14-1

FUEL INJECTOR ASSY

FUEL INJECTOR ASSY

E-14-6

CLAMP B, FUEL TUBE

CLAMP B, FUEL TUBE

E-14-12

PACKING, ELECTRONIC AIR

PACKING, ELECTRONIC AIR

E-14-21

NUT, FLANGE, 8MM

NUT, FLANGE, 8MM

E-14-18

BOLT, FLANGE, 8X32

BOLT, FLANGE, 8X32

E-14-22

O-RING 7.3X2.2

O-RING 7.3X2.2

E-14-17

BOLT, FLANGE, 6X32

BOLT, FLANGE, 6X32

E-14-16

BOLT-WASHER, 5X18

BOLT-WASHER, 5X18

E-14-5

JOINT, FUEL PIPE

JOINT, FUEL PIPE

E-14-4

GROMMET, VAPOR SEPARATOR

GROMMET, VAPOR SEPARATOR

E-14-20

BOLT, FLANGE, 8X45

BOLT, FLANGE, 8X45

E-14-24

COLLAR, 8.5X14.5

COLLAR, 8.5X14.5

E-14-15

BOLT-WASHER, 8X35

BOLT-WASHER, 8X35

E-14-13

SENSOR ASSY, MAP

SENSOR ASSY, MAP

E-14-14

O-RING

O-RING

E-14-23

O-RING 7.8X1.9

O-RING 7.8X1.9

E-14-11

VALVE ASSY, ELECTRONIC AIR

VALVE ASSY, ELECTRONIC AIR
