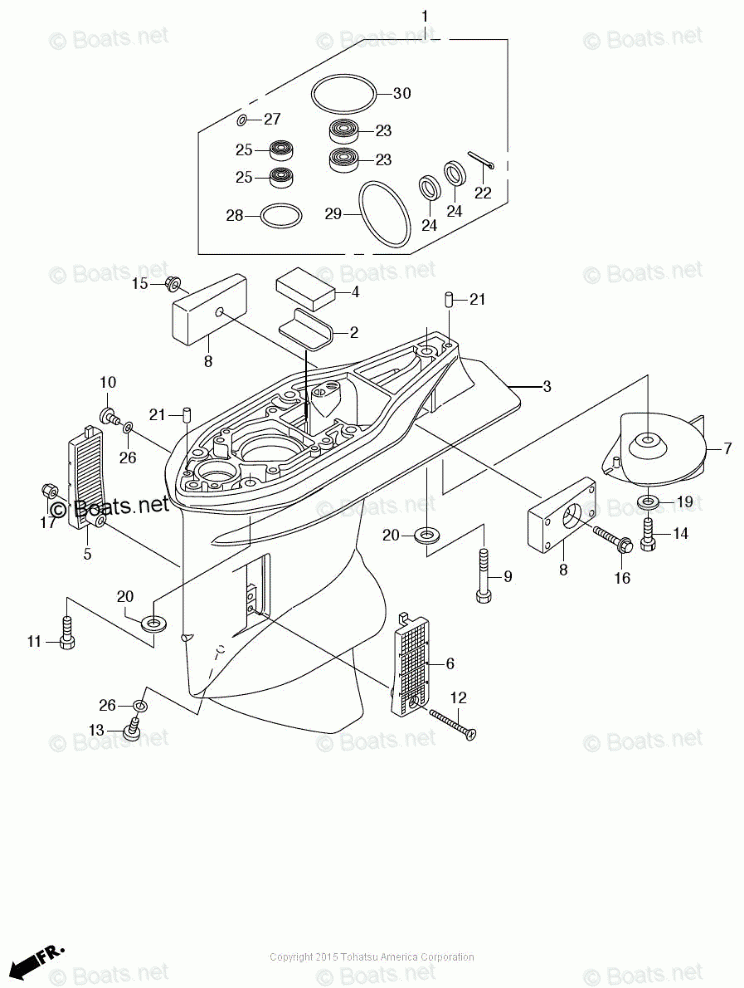

GEAR CASE (60A-STD. MODEL)

Tohatsu BFT60A
Tohatsu
#oem кодцена
F-3-10-16
HHW190206671
BOLT, FLANGE 6X30 (SUS-D)
F-3-10-11
HZY390103000
BOLT, HEX., 10X32
F-3-10-29
HZZ391352000
O-RING, 76.5X3
F-3-10-28
HZZ391351000
O-RING, 33.7X3.5
F-3-10-23
HZZ391251003
SEAL, WATER 17X36X6
F-3-10-12
HZZ390103000
SCREW, FLAT, 5X37
F-3-10-6
HZZ341105010
SCREEN, L. WATER, BFT60A
F-3-10-5
HZZ341104010
SCREEN, R. WATER, BFT60A
F-3-10-4
HZZ341102000
GROMMET, GEAR CASE
F-3-10-3
HZZ341101000ZD
CASE, GEAR (AMB) BFT60A
F-3-10-2
HZZ319286000
PLATE, RUBBER SETTING
F-3-10-1
HZZ306125000
SEAL KIT, GEAR CASE BFT60A
F-3-10-25
HZY391254003
SEAL, WATER 12X21X6
F-3-10-13
HZY390120000
BOLT, DRAIN PLUG
F-3-10-9
HZY390015000
BOLT, HEX., 10X60
F-3-10-30
HMB091359000
O-RING 58.5X3.5
F-3-10-15
HZY190205000
NUT, SELF-LOCK, 6MM
F-3-10-10
HZW990101003
BOLT, OIL CHECK
F-3-10-27
HZW491301003
O-RING 6.9X1.45
F-3-10-26
HZW491301003
O-RING 6.9X1.45
F-3-10-24
HZW491252003
SEAL, WATER 22X35X7
F-3-10-8
HZW141109B00
ANODE, METAL, GEAR CASE
F-3-10-22
HZV590758000
SPLIT PIN, 4.0
F-3-10-21
HZV590756000
DOWEL PIN, 6X10
F-3-10-20
HZV590563000
WASHER, PLAIN, 10MM
F-3-10-14
HZV590126000
BOLT, HEX., 8X20
F-3-10-19
HZV490507000
WASHER, PLAIN, 8MM
F-3-10-17
HZV490302000
NUT, SELF-LOCK, 5MM
F-3-10-7
HZZ541107000ZD
TAB, TRIM
